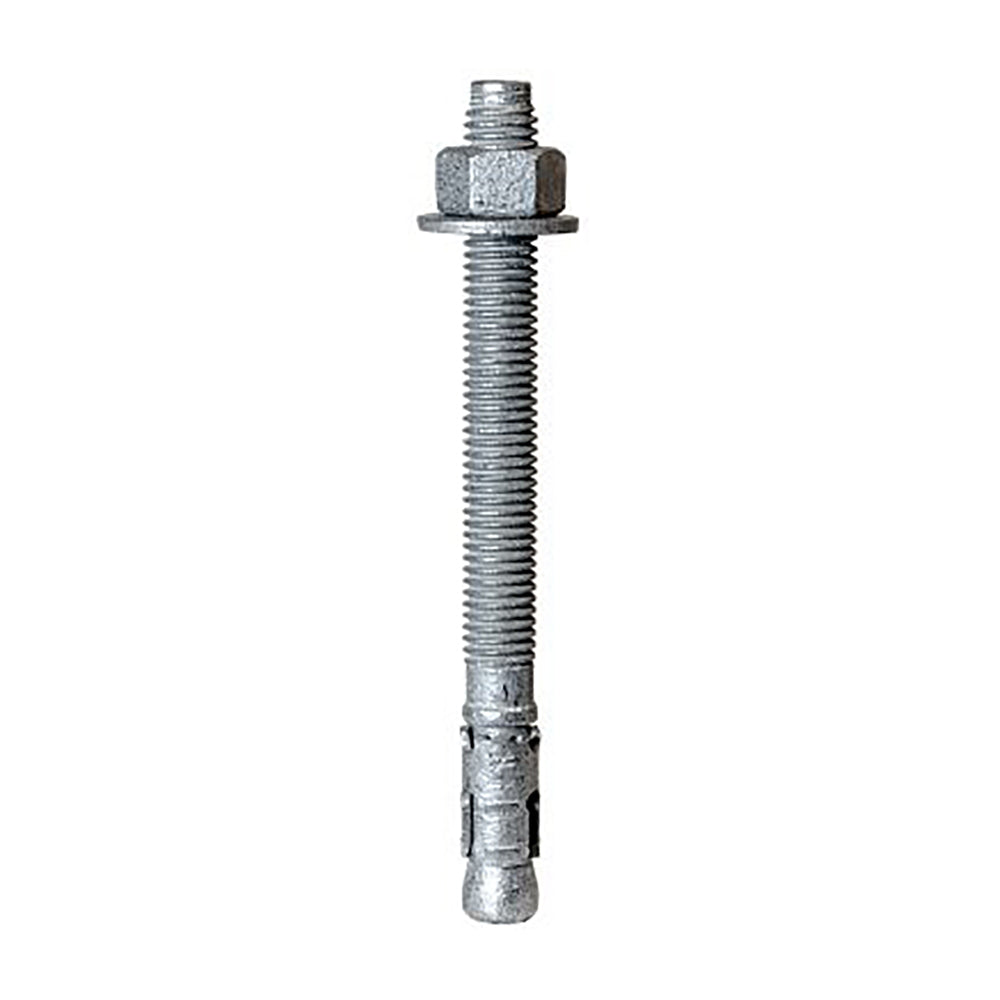

Key FeaturesChamfered top designed to prevent mushrooming during installationSuitable for horizontal vertical and overhead applicationsTested for minimum concrete thickness of 3 1/4"Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizesTested per ACI355.2 and AC193MaterialCarbon steelFinishMechanically galvanizedInstallationDrill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively drill the hole deep enough to accommodate embedment depth and dust from drilling. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture. Tighten to the required installation torque. CautionDo not use an impact wrench to set or tighten the Strong-Bolt 2 anchorOversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity
Regular price
$3.74
Sale price
$3.74
Regular price
Unit price/ per
/
Each
Volume Pricing Available
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Please note that this product is sold in multiples of 1
Couldn't load pickup availability
Buy in Bulk and Save
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Description
Key FeaturesChamfered top designed to prevent mushrooming during installationSuitable for horizontal vertical and overhead applicationsTested for minimum concrete thickness of 3 1/4"Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizesTested per ACI355.2 and AC193MaterialCarbon steelFinishMechanically galvanizedInstallationDrill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively drill the hole deep enough to accommodate embedment depth and dust from drilling. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture. Tighten to the required installation torque. CautionDo not use an impact wrench to set or tighten the Strong-Bolt 2 anchorOversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity
