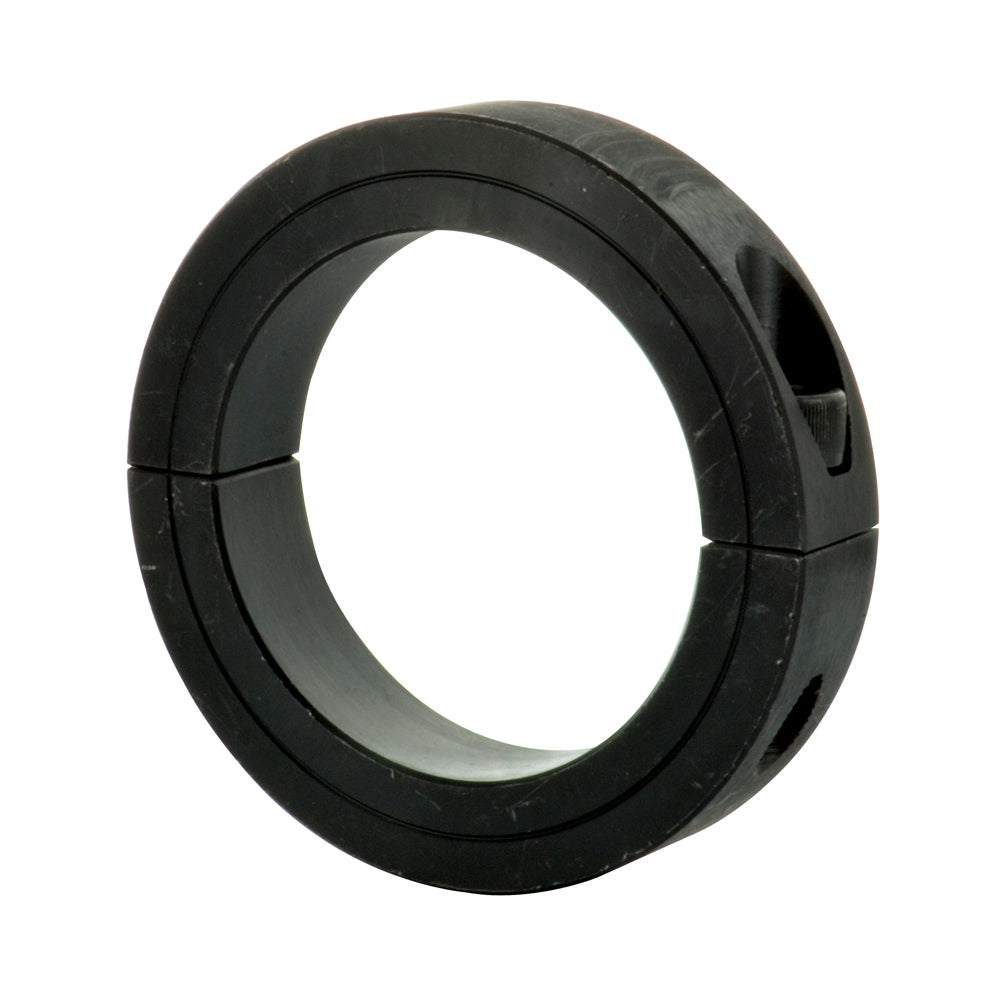

3 Inch Black Oxide Low Carbon Steel 2-Piece Shaft Collar
Item E96.02.3
Shaft collars hold bearings and sprockets to shafts and other components and can act as mechanical stops. A two-piece clamp collar wraps around a hard or soft shaft without marring. Set screw collars use a set screw to lock onto a soft or predrilled shaft.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3 Inch |
| Finish | Black Oxide |
| Material | Low Carbon Steel |
| Measurement | Inch |
| Retainer Type | 2-Piece Shaft Collar |
Description
Description
Shaft collars hold bearings and sprockets to shafts and other components and can act as mechanical stops. A two-piece clamp collar wraps around a hard or soft shaft without marring. Set screw collars use a set screw to lock onto a soft or predrilled shaft.
- Double splite collars (SC2) allow installation without disassembling machinery
- SC2 collars provide superior grip action
- Inside Diameter: 3 Inch
- Inside Diameter Maximum: 3.0080 Inch
- Inside Diameter Minimum: 3.0010 Inch
- Item: Shaft Collar
- Material: Low Carbon Steel
- Measurement: Inch
- Origin: Imported
- Outside Diameter: 4-1/4 Inch
- Outside Diameter Maximum: 4.2580 Inch
- Outside Diameter Minimum: 4.2420 Inch
- Set Screw Size: 3/8-24
- Style: 2-Piece
- Thickness: 7/8 Inch
- Thickness Maximum: 0.8800 Inch
- Thickness Minimum: 0.8700 Inch
- Type: Round Bore
