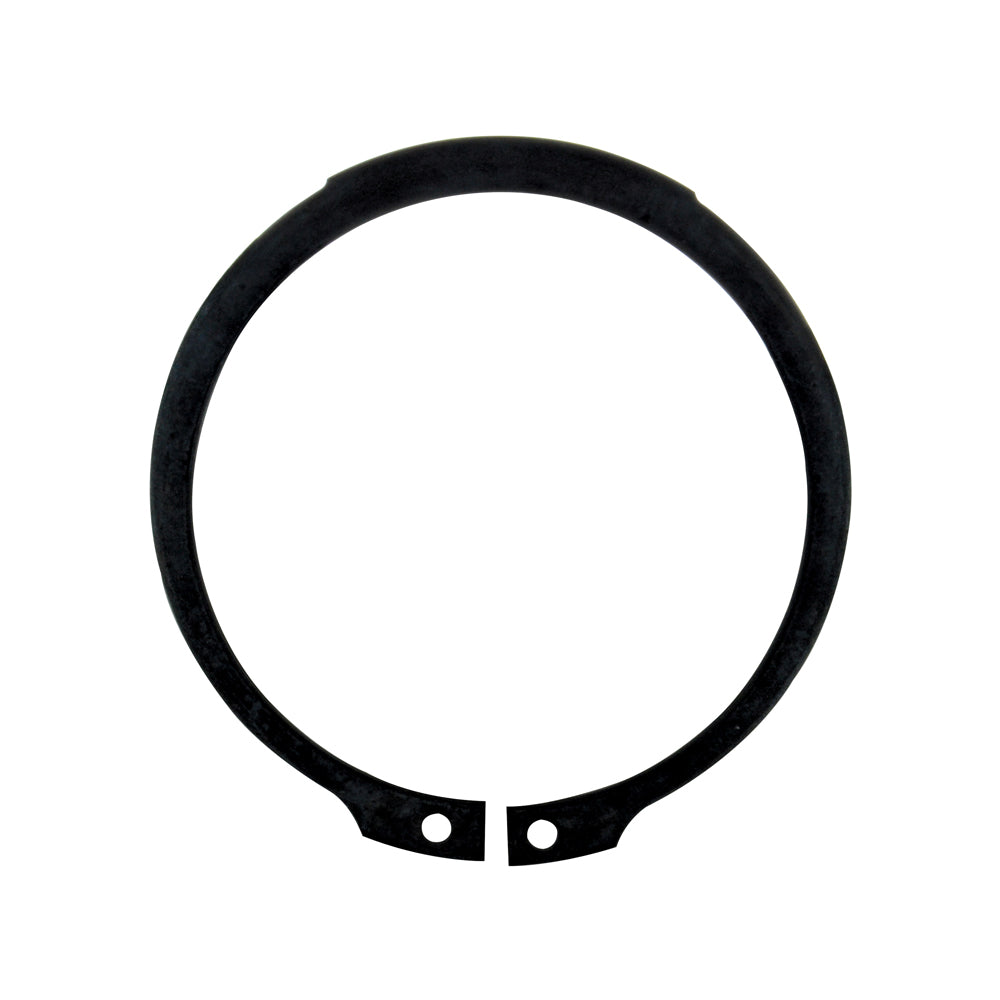

3 Inch Black Phosphate Carbon Spring Steel External Snap Ring
Item E36.3
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Description
Description
From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.
- Plating; Phosphate
- Item: External Snap Ring
Specifications
General
- Material
- Spring Steel
- Measurement System
- Inch
- Type
- Stamped Standard Duty
- Finish
- Black Phosphate
- Maximum Section
- 0.264 Inch
- Allowable Corner Radii
- 0.117 Inch
- Edge Margin
- 0.243 Inch
- Maximum Section Tolerance
- +/-0.007
- Minimum Section
- 0.138 Inch
- Minimum Section Tolerance
- +/-0.007
Dimensions
- Diameter
- 3 Inch
- Thickness
- 0.093 Inch
- Hole Diameter
- 0.125 Inch
- Ring Free Diameter
- 2.775 Inch
- Ring Free Diameter Tolerance
- +0.020/-0.015
- Thickness Tolerance
- +/-0.003
- Shaft Diameter
- 3 Inch
- Groove Width
- 0.103 Inch
- Lug Height
- 0.264 Inch
- Groove Diameter
- 2.838 Inch
- Groove Depth
- 0.081 Inch
- Clearance Diameter Released In Groove
- 3.442 Inch
- Groove Diameter To Shaft Concentricity
- 0.006 Inch
- Groove Width Tolerance
- +0.005/-0.000
- Groove Diameter Tolerance
- +/-0.006
- Hole Diameter Tolerance
- +0.015/-0.002
- Lug Height Tolerance
- +/-0.005
- Radial Wall Thickness
- 0.138 – 0.264 Inch
- Gaging Diameter
- 3.252 Inch
Features
- Hardness
- HRC 47-52
Miscellaneous
- Allowable Corner Chamfers
- 0.070 Inch
