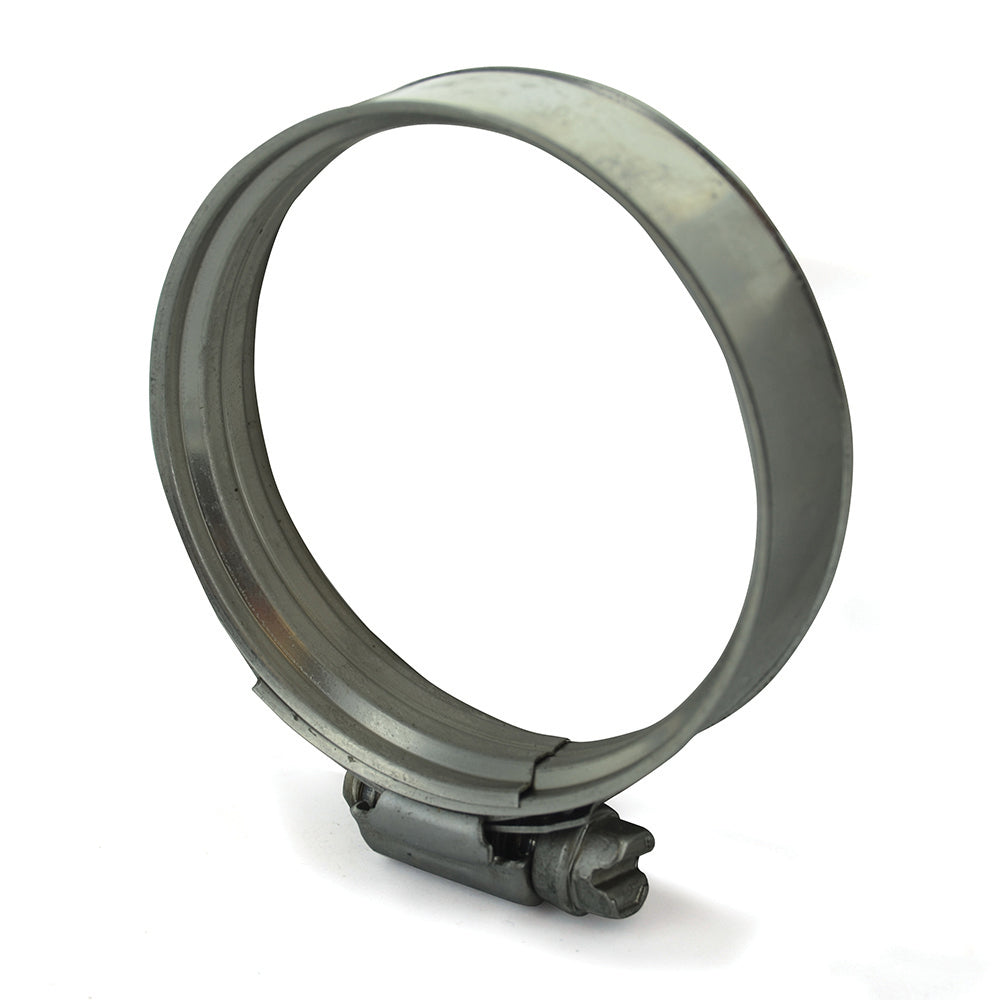

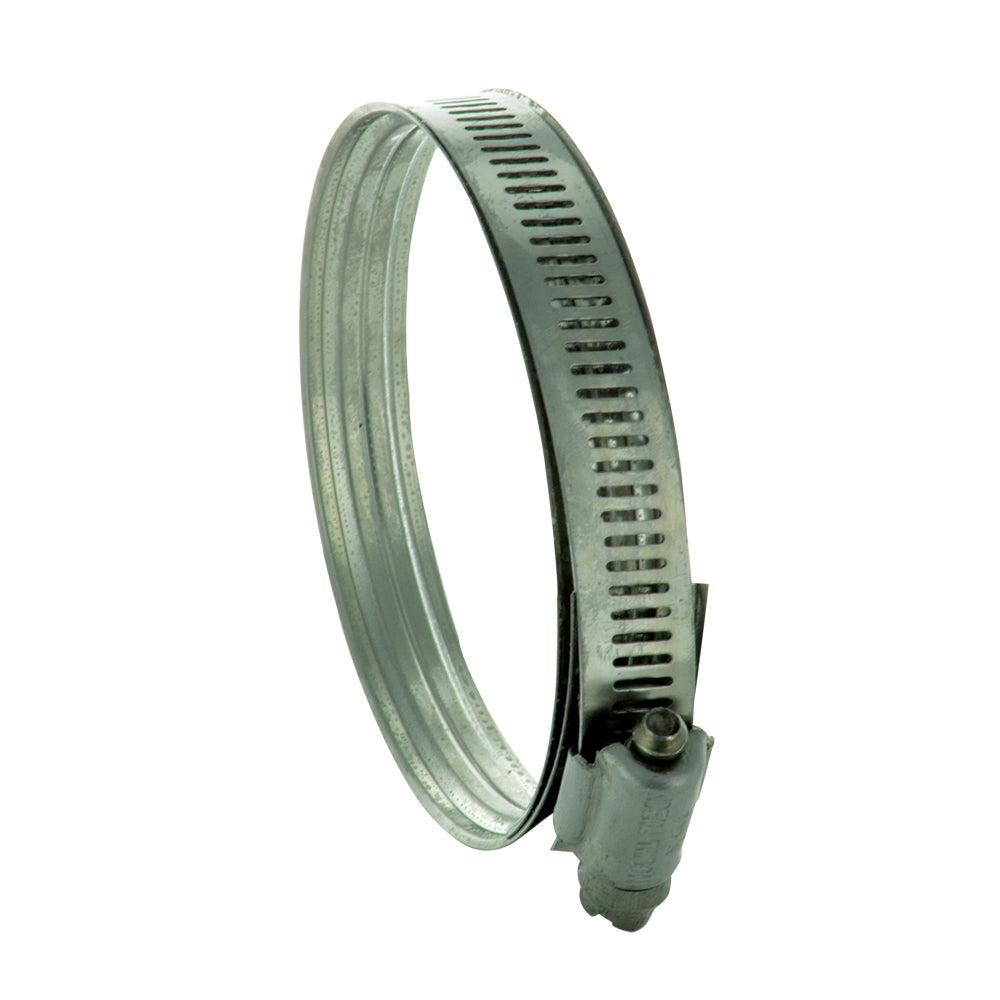

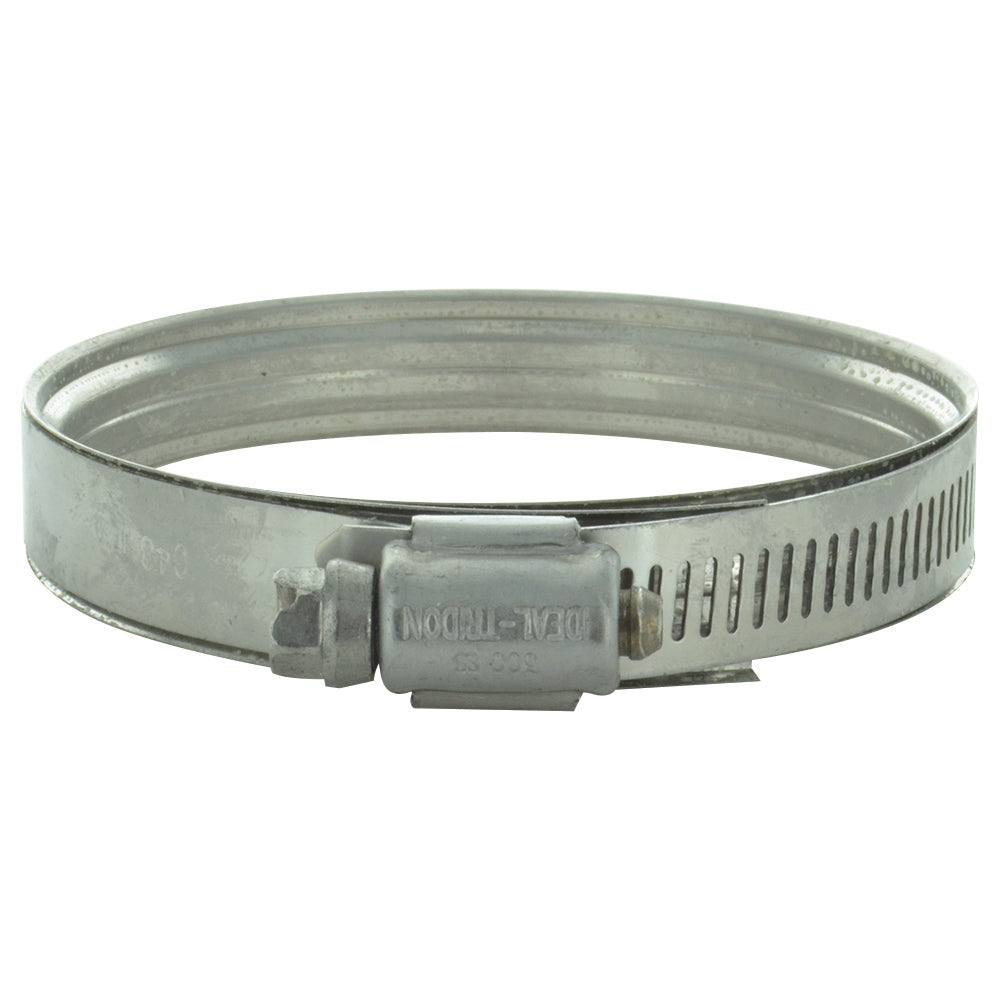

#32 Ideal-Tridon Smartseal Clamp System - Stainless Steel Spring Liner & Clamp
Item F34.01.32
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
SmartSeal Clamps are comprised of two main parts the clamp assembly and the SmartLiner. the SmartLiner is a spring liner made of high quality stainless steel integrated inside the clamp. Designed to be smart the thin gauge steel expands and contracts around the hose with temperature changes. Clamp rides on top of lubricated liner distributing pressure more evenly around hose.
- Min: 1-15/16 Inch (48mm) / Max: 2-5/16 Inch (59mm)
- 1/2 Inch Band
- 1/2 Inch Spring Liner
- 5/16 Inch Slotted Hex Head
- Spring compensation more than 360º
- Improved clamp roundness eliminates leak paths at housing juncture
- Trough-shaped design created higher pressure loading compared to conventional worm gear increasing resistance against potential leaks
- Trough shape helps clamp “grip” by penetrating deeper into the hose wall over a narrower cross-section (footprint)
- Applications include: radiators turbo charged applications solar panels vehicle HVAC pipe fluid connectors soft hose applications generators home appliances tractors/trucks and most vehicle fluid applications
