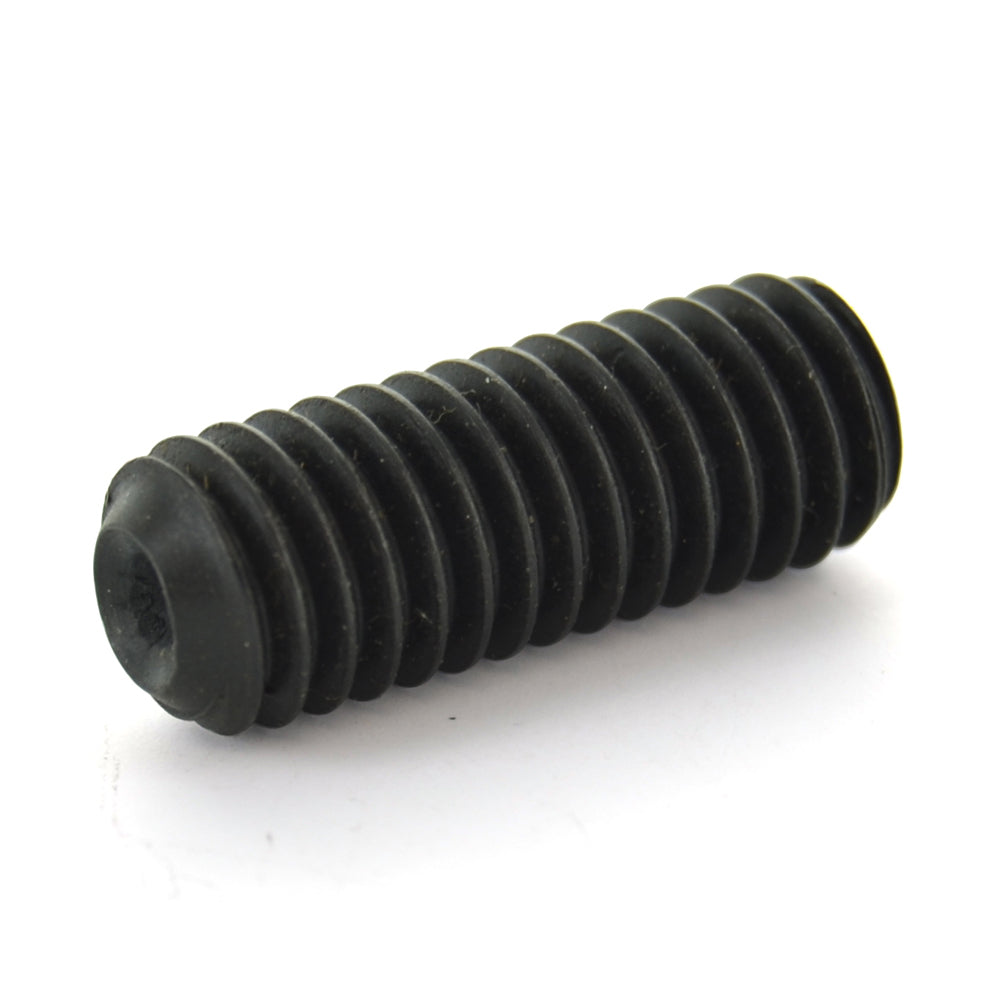

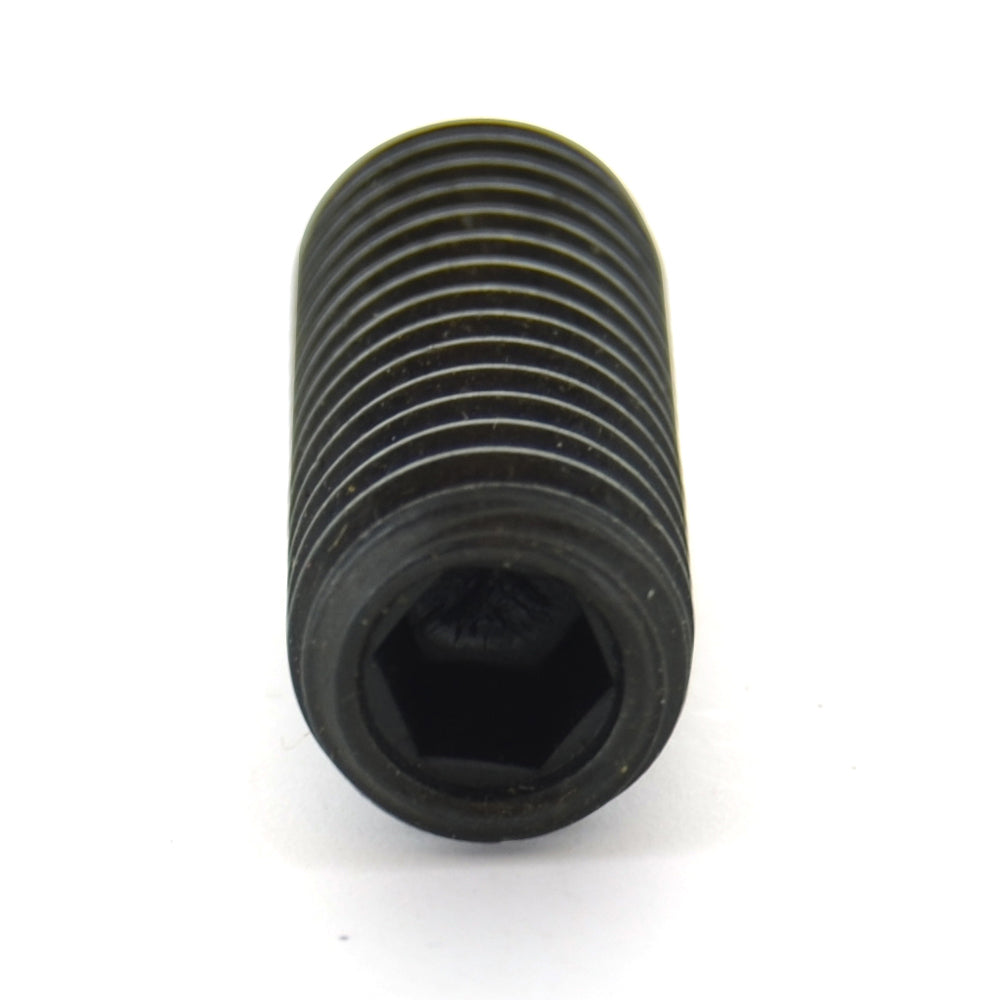

#4-40 x 3/16 Inch Coarse Black Oxide Heat-Treated Alloy Steel Cup Point Socket Head Set Screw USA
Item B61.4.316
Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #4 |
| Length | 3/16 Inch |
| Thread Type | Coarse |
| Drive Type | Internal Hex |
| Finish | Black Oxide |
| Point Type | Cup Point |
Description
Description
Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.
- Made in USA
- DFAR Compliant
- Item: Set Screw
Specifications
General
- Finish
- Black Oxide
- Measurement System
- Inch
- Origin
- USA
- Type
- Full Threaded
- Material
- Heat-Treated Alloy Steel
Dimensions
- Diameter
- #4
- Length
- 3/16 Inch
- Thread Type
- Coarse
- Threads Per Inch
- 40
- Drive Size
- 0.050 Inch
- Point Diameter
- 0.051 – 0.061 Inch
- Key Engagement
- 0.070 Inch
Features
- Drive Type
- Internal Hex
- Point Type
- Cup Point
- Head Style
- Socket Cap
- Tensile Strength
- 180,000 psi
Certifications & Standards
- Standards
- ASME/ANSI B18.3
