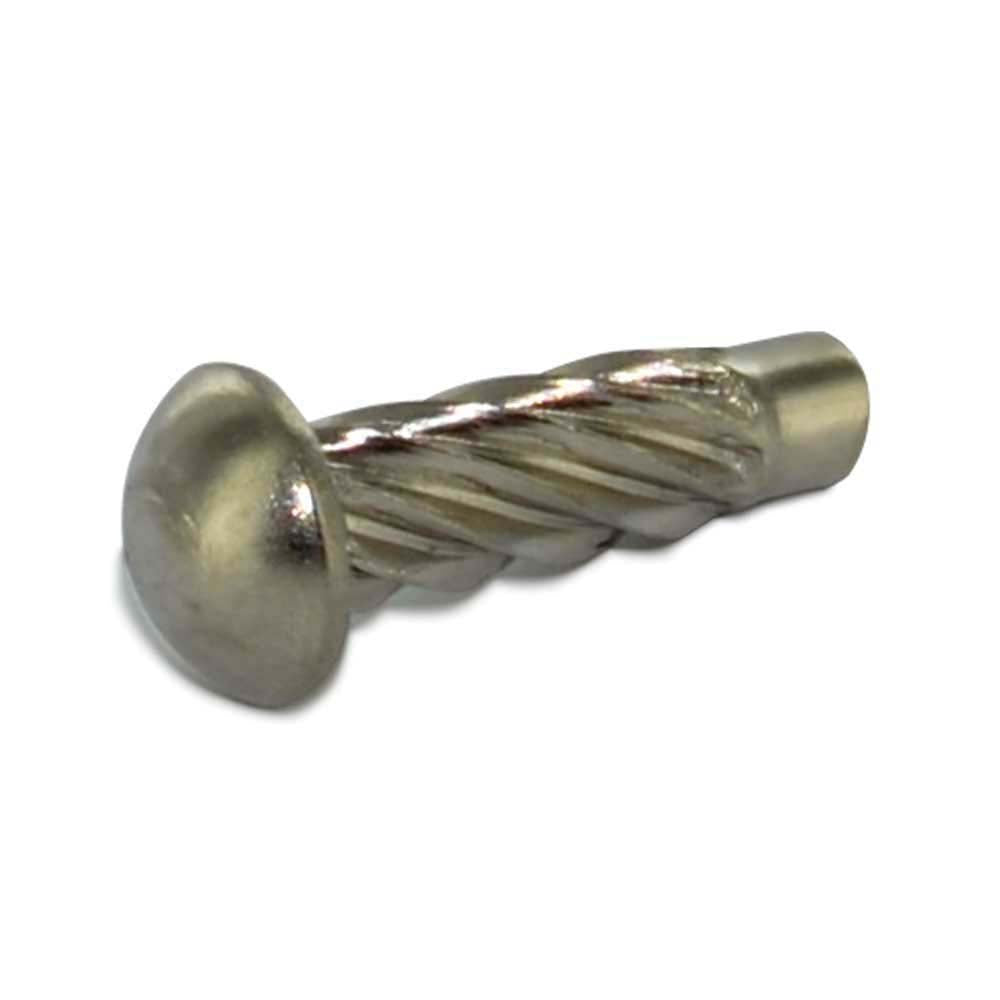

#4 x 3/16 Inch Plain 18-8 (A2) Stainless Steel Round Head U-Drive Screw
Item K26.9.4316
U drive screws are hammered into substrates as quick-connect permanent fasteners. They have no slots or recesses and are often used to seal drain holes or hang thin materials. These screws require pre-tapped holes and must be made of material that is harder than its substrate.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Description
Description
U drive screws are hammered into substrates as quick-connect permanent fasteners. They have no slots or recesses and are often used to seal drain holes or hang thin materials. These screws require pre-tapped holes and must be made of material that is harder than its substrate.
- Diameter: #4
- Finish: Plain
- Head Diameter: 0.193 - 0.211 Inch
- Head Height: 4.5 mm
- Head Style: Round
- Industry Standard: ASME/ANSI B18.6.3
- Item: U-Drive Screw
- Length: 3/16 Inch
- Material: 18-8 (A2) Stainless Steel
- Measurement: Inch
- Number of Thread Starts: 7
- Origin: Imported
- Outside Diameter: 0.112 - 0.116 Inch
- Pilot Diameter: 0.092 - 0.096 Inch
- Pilot Length: 0.047 Inch
- Recommended Hole Size: 0.104 Inch
- Specification: ASME/ANSI B18.6.3
Specifications
General
- Material
- Stainless Steel 18-8 (A2)
- Finish
- Plain
- Measurement
- Inch
- Origin
- Imported
Dimensions
- Diameter
- #4
- Length
- 3/16 Inch
- Head Diameter
- 0.193 – 0.211 Inch
- Head Height
- 4.5 mm
- Outside Diameter
- 0.112 – 0.116 Inch
- Hole Size
- 0.104 Inch
Features
- Head Style
- Round
Certifications & Standards
- Standards
- ASME/ANSI B18.6.3
