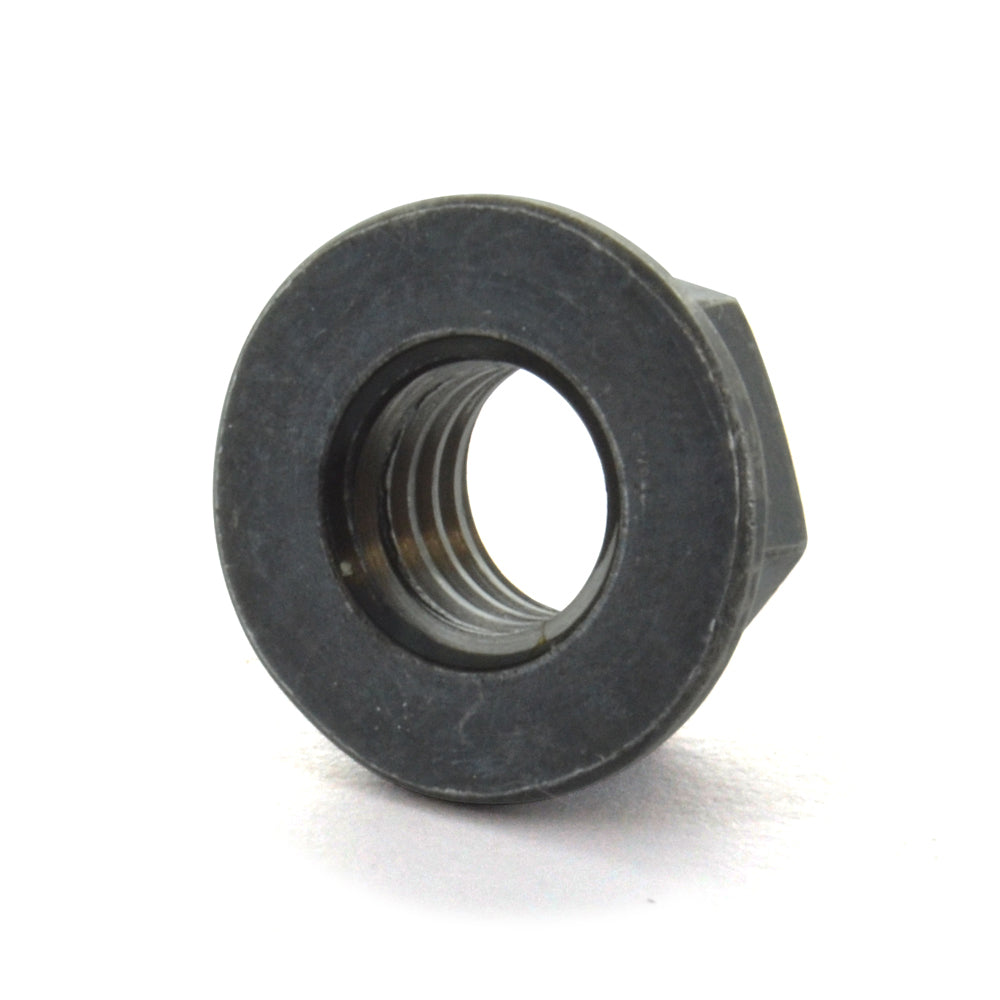

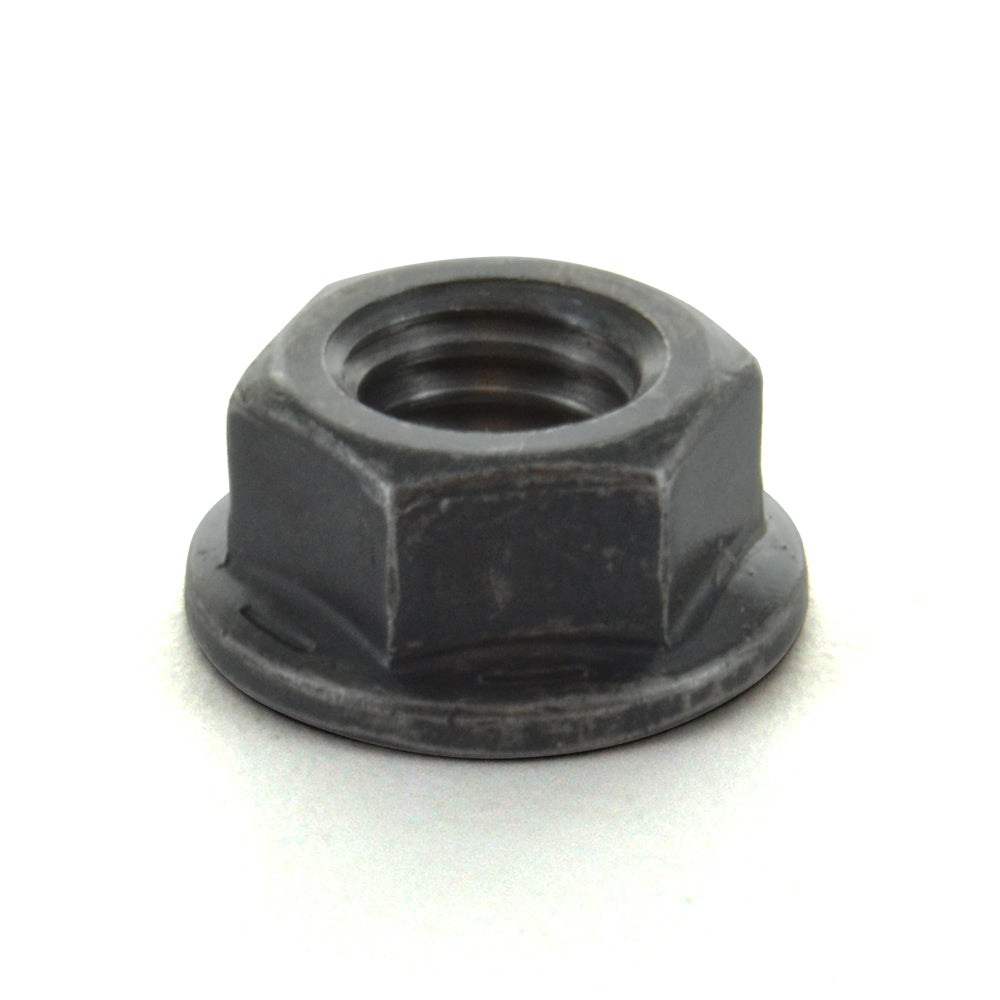

5/16-18 Inch Non-Serrated Coarse Black Phosphate And Oil Grade 8 Hex Flange Nut
Item D14.1.516
Flange Diameter: 0.680 Inch
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Flange | Non-Serrated |
| Measurement | Inch |
| Thread Type | Coarse |
Description
Description
From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.
- Hardness RC 24-32
- Finish: Black Phosphate
- Flange Diameter: 0.680 Inch
- Flange Thickness: 0.040 Inch
- Grade: Class 8
- Industry Standard: IFI 145
- Item: Hex Flange Lock Nut
- Material: Medium Carbon Steel
- Measurement: Inch
- Nut Thickness: 0.268 - 0.283 Inch
- Origin: Imported
- Proof Load: 150000 psi
- Specification: IFI 145 SAE J995
- Thread Type: Coarse
- Threads Per Inch: 18
- Type: Serrated
- Wrenching Height: 0.170 Inch
