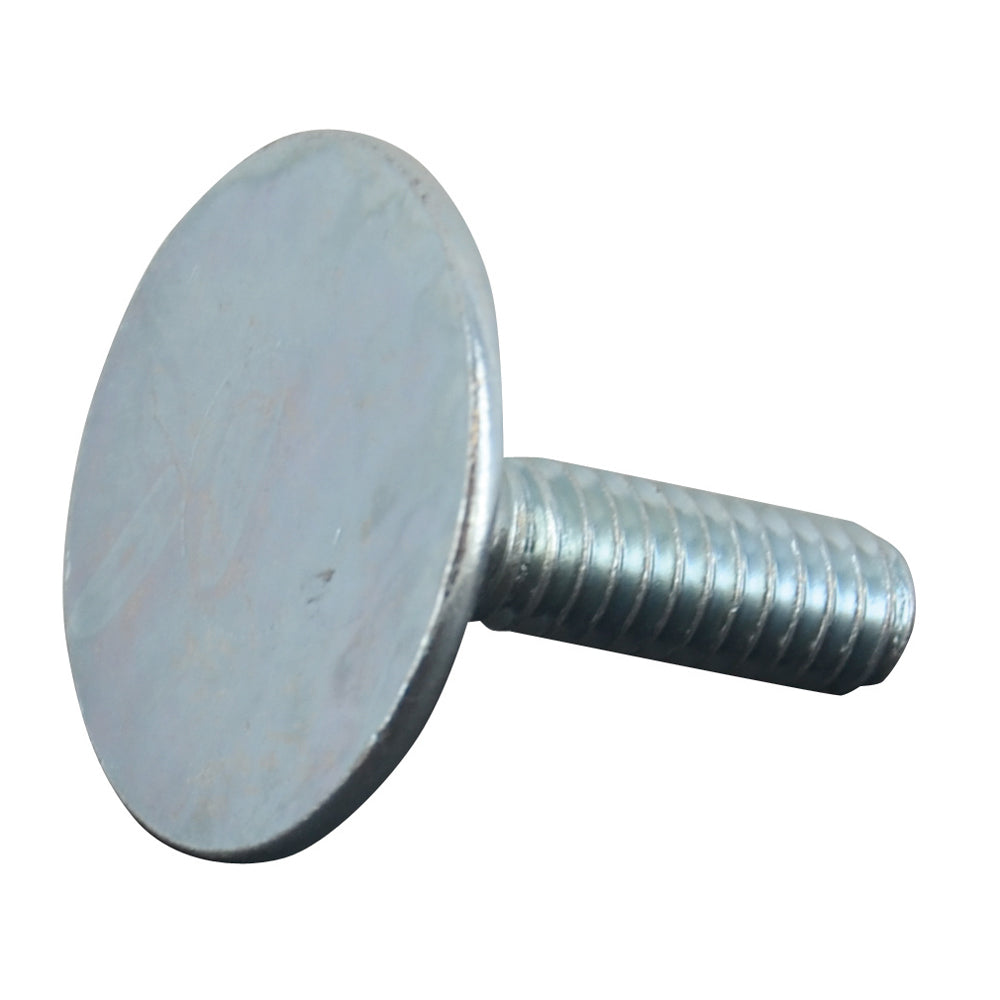

5/16-18 x 1-1/4 Inch Coarse Zinc Plated Grade 2 Flat Head Elevator Bolt
Item C37.516.114
Elevator bolts are threaded fasteners with a thin body and round head. These bolts may have either a square or ribbed neck to stop bolts from turning when a nut is tightened. They are used in tight spaces with moving parts such as in elevators and conveyor belts. With a thin head they fit flush against the connection surface and don’t interfere in small or confined operational systems.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Length | 1-1/4 Inch |
| Thread Type | Coarse |
| Head Style | Flat |
| Finish | Zinc |
Description
Description
Elevator bolts are threaded fasteners with a thin body and round head. These bolts may have either a square or ribbed neck to stop bolts from turning when a nut is tightened. They are used in tight spaces with moving parts such as in elevators and conveyor belts. With a thin head they fit flush against the connection surface and don’t interfere in small or confined operational systems.
- ANSI B18.5Body Diameter: 0.298 - 0.324 Inch
- Flat on Minimum Diameter Head: 0.035 Inch
- Grade: 2
- Item: Elevator Bolt
Specifications
General
- Finish
- Zinc
- Measurement System
- Inch
- Type
- Partial Threaded
- Material
- Steel
- Plating
- Zinc
- Origin
- Imported
Dimensions
- Length
- 1-1/4 Inch
- Thread Type
- Coarse
- Diameter
- 5/16 Inch
- Threads Per Inch
- 18
- Thread Length
- 7/8 Inch
- Head Diameter
- 1.188 – 1.227 Inch
- Head Height
- 0.094 – 0.114 Inch
- Body Diameter
- 0.298 – 0.324 Inch
- Square Width
- 0.307 – 0.342 Inch
- Square Depth
- 0.219 – 0.250 Inch
Features
- Head Style
- Flat
- Head
- 0.035 Inch
Certifications & Standards
- Standards
- ANSI B18.5 - ASME/ANSI B18.5 - SAE J429
