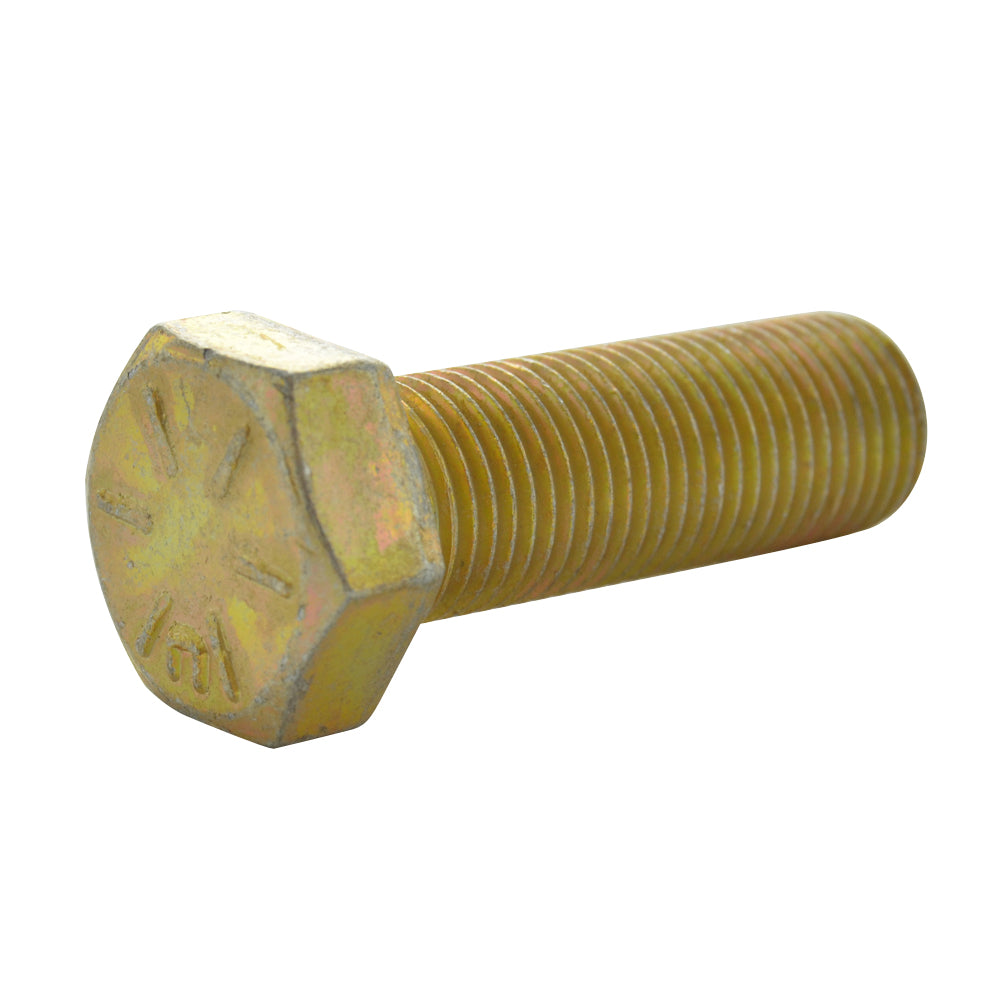

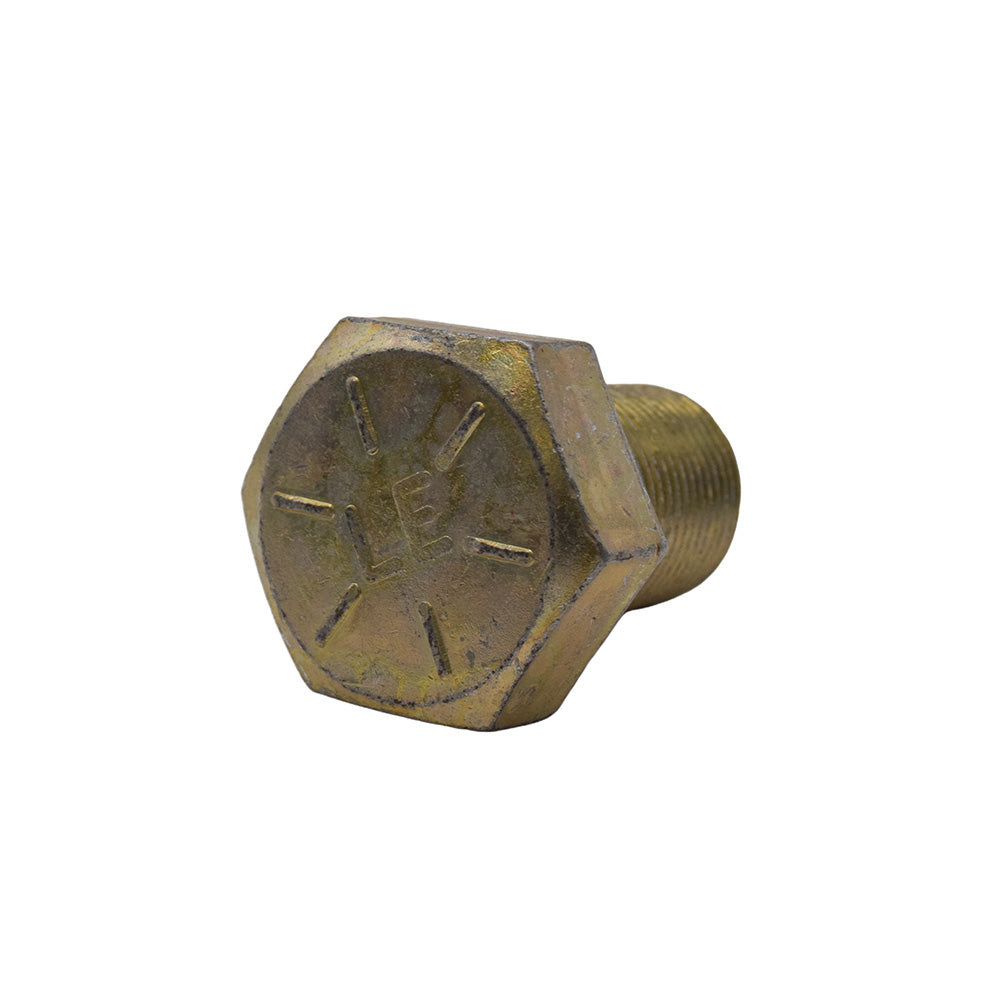

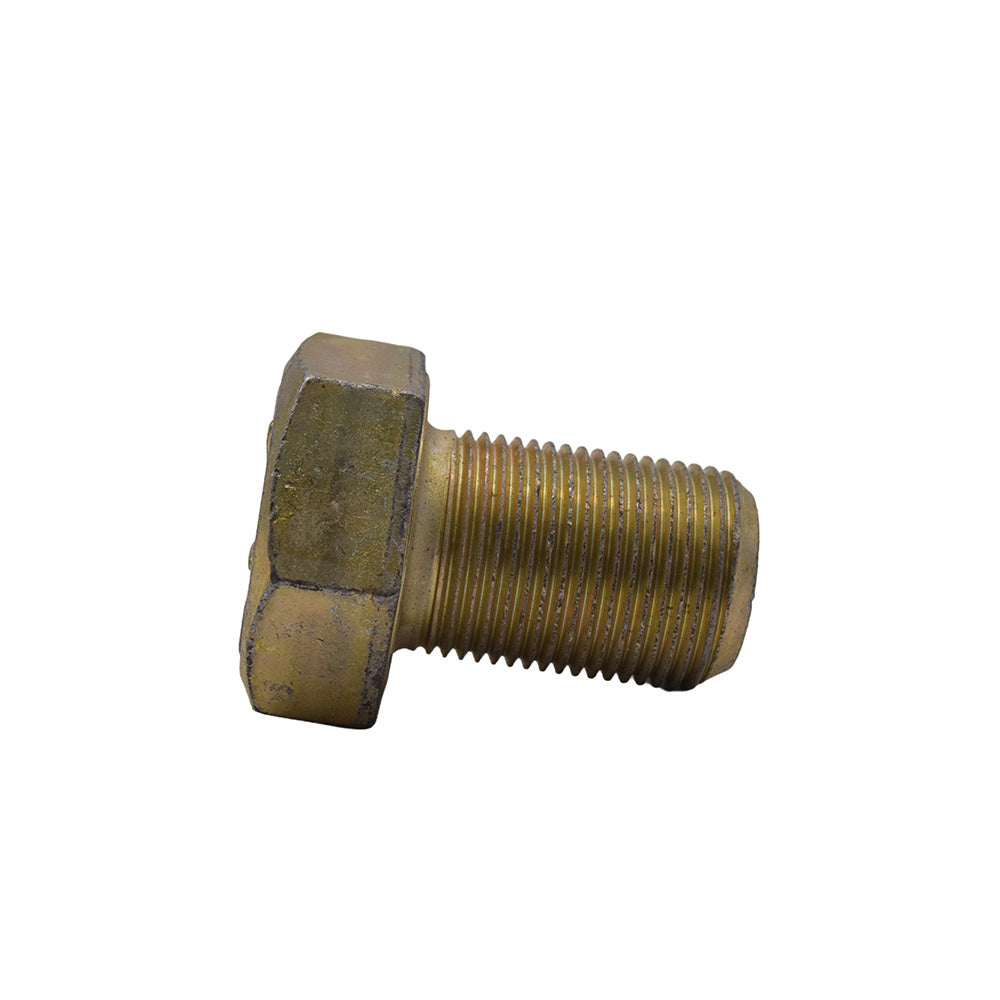

5/16-24 x 1/2 Inch Fine Grade 8 Yellow Zinc Steel Hex Head Cap Screw USA
Item A73.516.12
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. Washer face is provided under the head to provide a bearing surface when tightened. It ensures fit-up into tapped holes without counterboring. End is chamfered to aid in inserting into a tapped hole. Made In USA. Cap Screws can be used in tapped holes or with a wide range of nut bolted connections and in the applications for vehicles and structures.
- Proof Load PSI: 120000 / Tensile Strength: 150000Body Diameter: 0.3065 - 0.3125 Inch
- Diameter: 5/16 Inch
- Diameter Thread Size: 5/16-24
- Finish: Yellow Zinc
- Grade: Grade 8
- Head Height Max: 13/64 Inch
- Head Style: 0.019 Inch
- Head Type: Hex
- Item: Cap Screw
- Length: 1/2 Inch
- Material: Steel
- Measurement: Inch
- Origin: USA
- Proof Load: 120000 psi
- Specification: #21
- Tensile Strength : 150000 psi
- Thread Length: 1/2 Inch
- Thread Type: Fine
- Threads Per Inch: 24
- Type: Full Threaded
- Width Across Corner: 0.557 - 0.577 Inch
