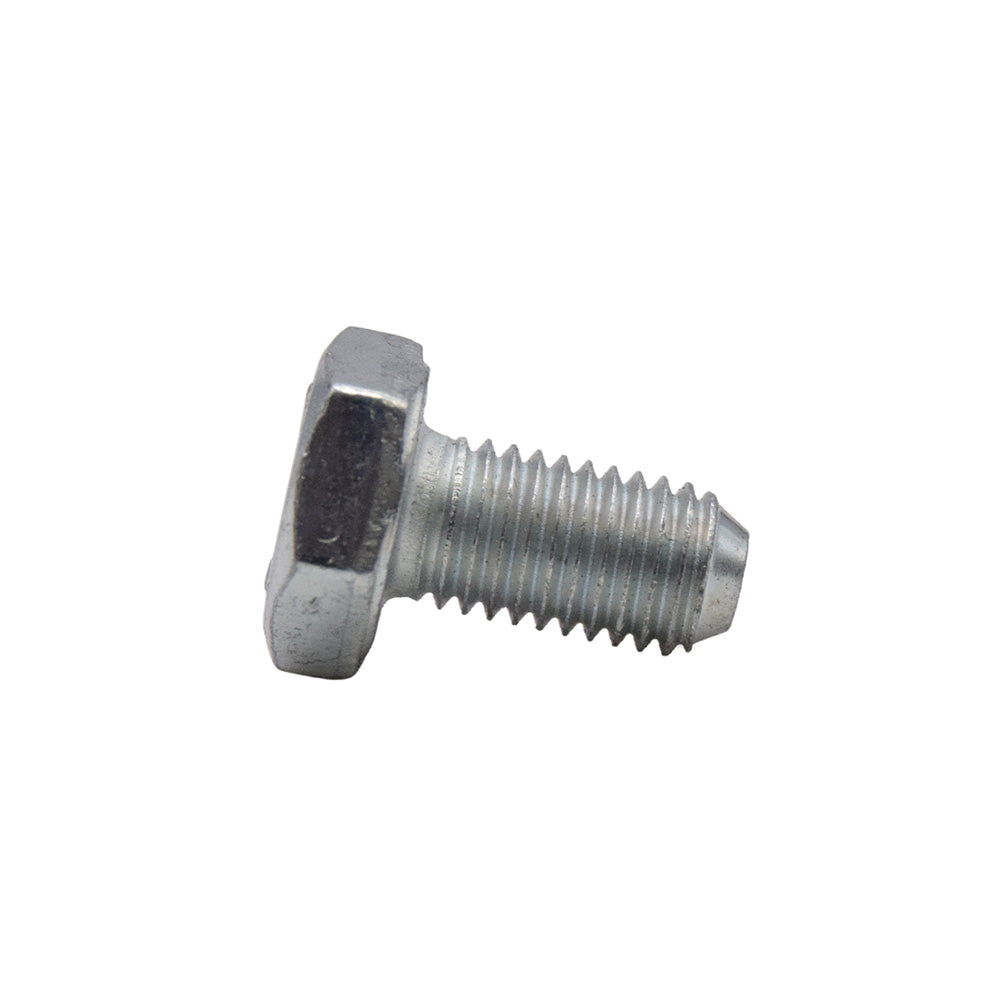

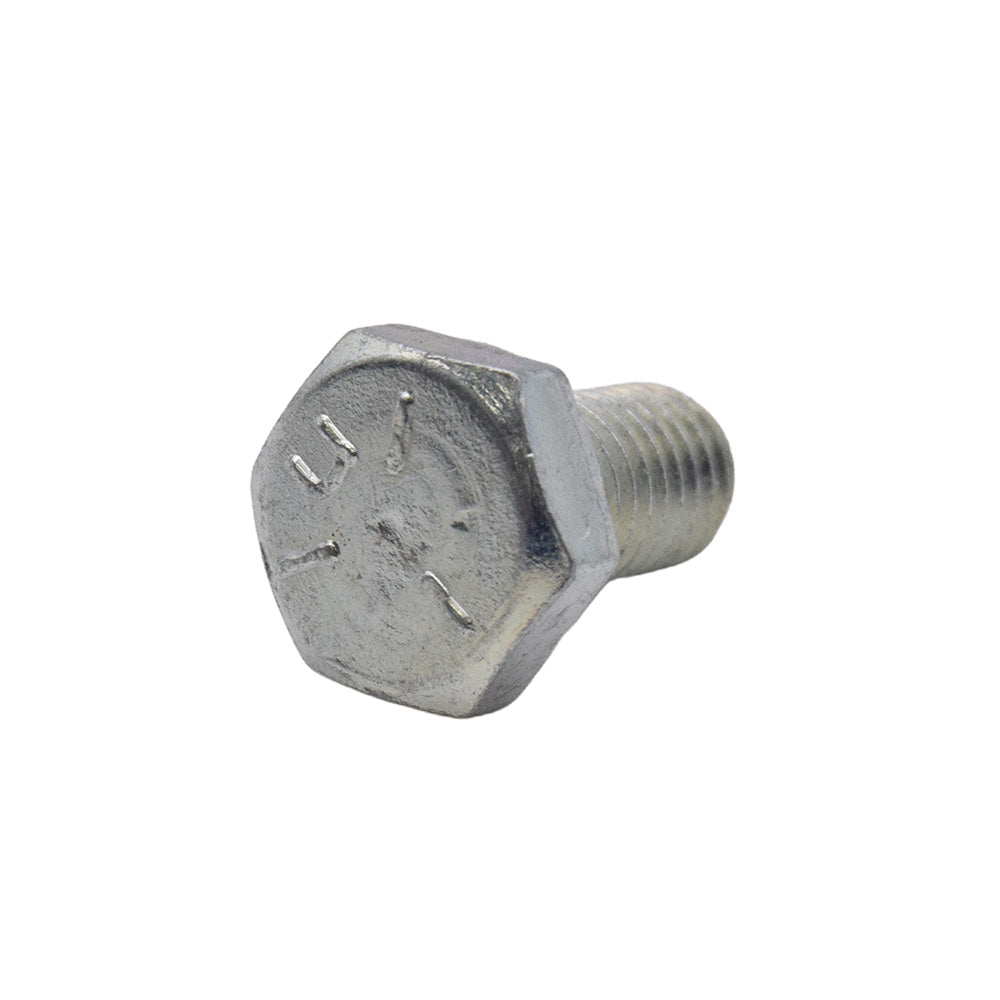

5/16-24 x 1 Inch Fine Grade 5 Zinc Plated Steel Hex Head Cap Screw USA
Item A71.516.1
Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. Washer face is provided under the head to provide a bearing surface when tightened. It ensures fit-up into tapped holes without counterboring. End is chamfered to aid in inserting into a tapped hole. Made In USA. Cap Screws can be used in tapped holes or with a wide range of nut bolted connections and in the applications for vehicles and structures.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Thread Size | 5/16-24 |
| Diameter | 5/16 Inch |
| Length | 1 Inch |
| Thread Type | Fine |
| Head Style | Hex |
| Drive Type | External Hex |
Description
Description
Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. Washer face is provided under the head to provide a bearing surface when tightened. It ensures fit-up into tapped holes without counterboring. End is chamfered to aid in inserting into a tapped hole. Made In USA. Cap Screws can be used in tapped holes or with a wide range of nut bolted connections and in the applications for vehicles and structures.
- Proof Load PSI: 85000 / Tensile Strength: 120000Body Diameter: 0.3065 - 0.3125 Inch
- Diameter: 5/16 Inch
- Diameter Thread Size: 5/16-24
- Finish: Zinc
- Grade: Grade 5
- Head Height Max: 13/64 Inch
- Head Style: 0.019 Inch
- Head Type: Hex
- Item: Cap Screw
- Length: 1 Inch
- Material: Steel
- Measurement: Inch
- Origin: USA
- Proof Load: 85000 psi
- Specification: #21
- Tensile Strength : 25/32 Inch
- Thread Length: 7/8 Inch
- Thread Type: Fine
- Threads Per Inch: 24
- Type: Partial Threaded
- Width Across Corner: 0.557 - 0.577 Inch
Specifications
General
- Finish
- Zinc
- Material
- Steel
- Measurement System
- Inch
Dimensions
- Diameter
- 5/16 Inch
- Length
- 1 Inch
- Thread Size
- 5/16-24
- Thread Type
- Fine
Features
- Drive Type
- External Hex
- Grade
- Grade 5
- Head Style
- Hex
- Point Type
- Machine Screw
Ratings & Compliance
- Origin
- USA
