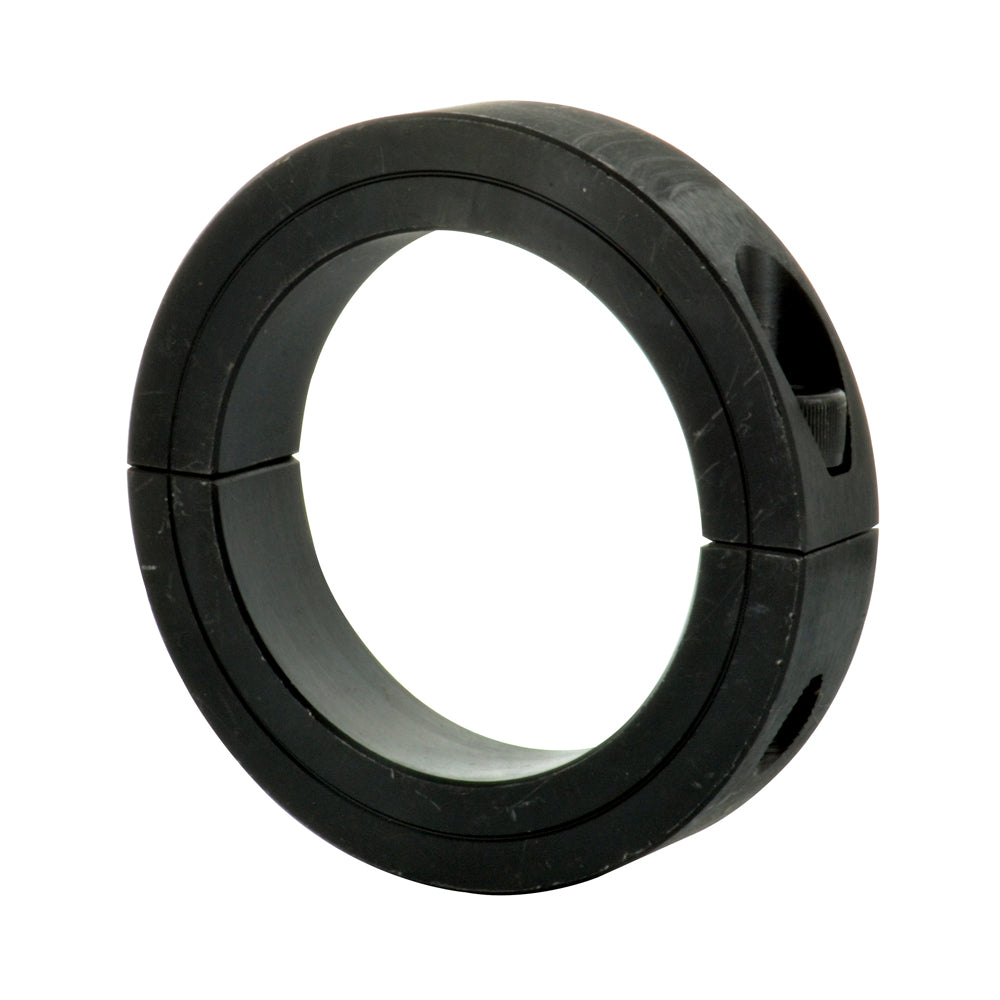

5/16 Inch Black Oxide Low Carbon Steel 2-Piece Shaft Collar
Item E96.02.516
Shaft collars hold bearings and sprockets to shafts and other components and can act as mechanical stops. A two-piece clamp collar wraps around a hard or soft shaft without marring. Set screw collars use a set screw to lock onto a soft or predrilled shaft.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Material | Low Carbon Steel |
| Finish | Black Oxide |
| Retainer Type | 2-Piece Shaft Collar |
Description
Description
Shaft collars hold bearings and sprockets to shafts and other components and can act as mechanical stops. A two-piece clamp collar wraps around a hard or soft shaft without marring. Set screw collars use a set screw to lock onto a soft or predrilled shaft.
- Plating = Black Oxide
- Material = Carbon SteelFinish: Black Oxide
- Item: Shaft Collar
Specifications
General
- Finish
- Black Oxide
- Material
- Low Carbon Steel
- Measurement System
- Inch
- Type
- Round Bore
- Origin
- Imported
Dimensions
- Thickness
- 5/16 Inch
- Outside Diameter
- 11/16 Inch
- Inside Diameter
- 5/16 Inch
- Outside Diameter Maximum
- 0.6925 Inch
- Thickness Maximum
- 0.3175 Inch
- Thickness Minimum
- 0.3075 Inch
- Outside Diameter Minimum
- 0.6825 Inch
- Inside Diameter Maximum
- 0.3165 Inch
- Inside Diameter Minimum
- 0.3135 Inch
- Set Screw Size
- #4-40
Features
- Retainer Type
- 2-Piece Shaft Collar
- Style
- 2-Piece
