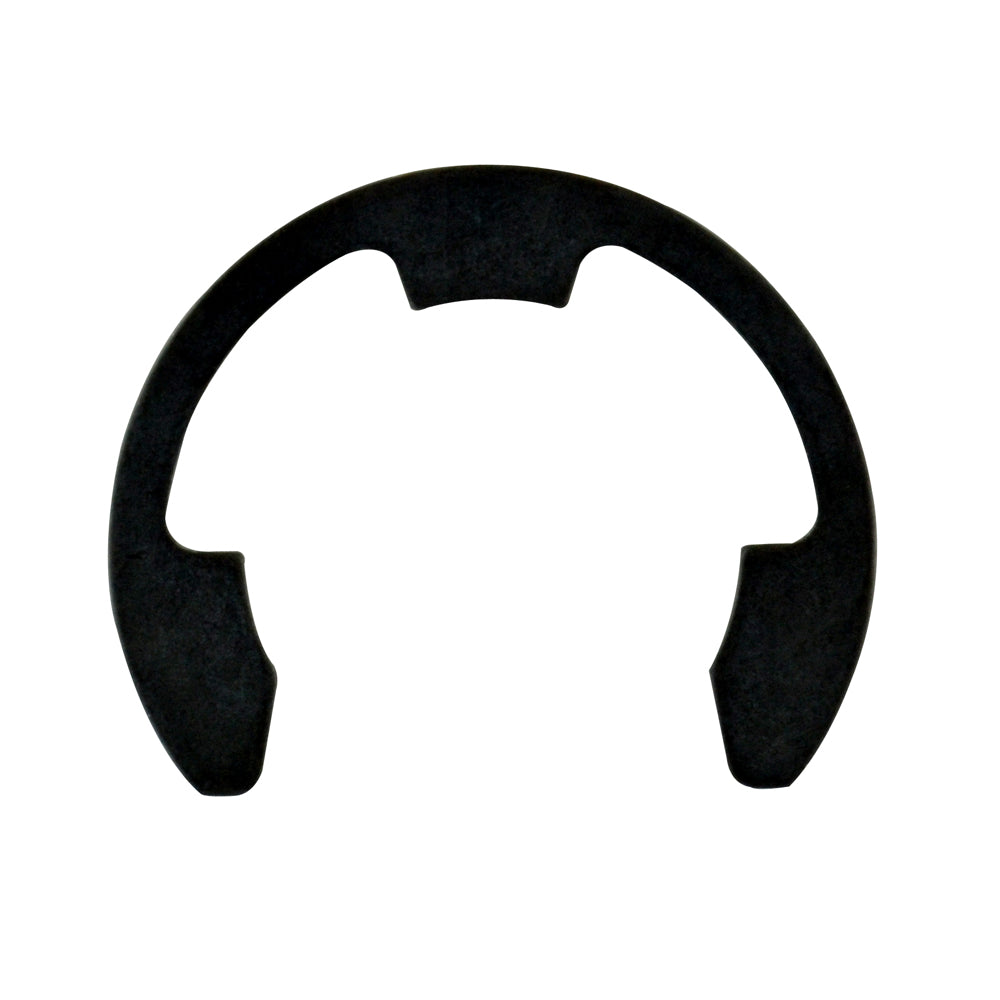

5/16 Inch Phosphate Carbon Spring Steel E-Clip Retaining Ring
Item E94.516
Circlips (also known as retaining rings) are types of fastener which look like flexible open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings retaining clips C-type Jesus clips snap rings and E-type.
