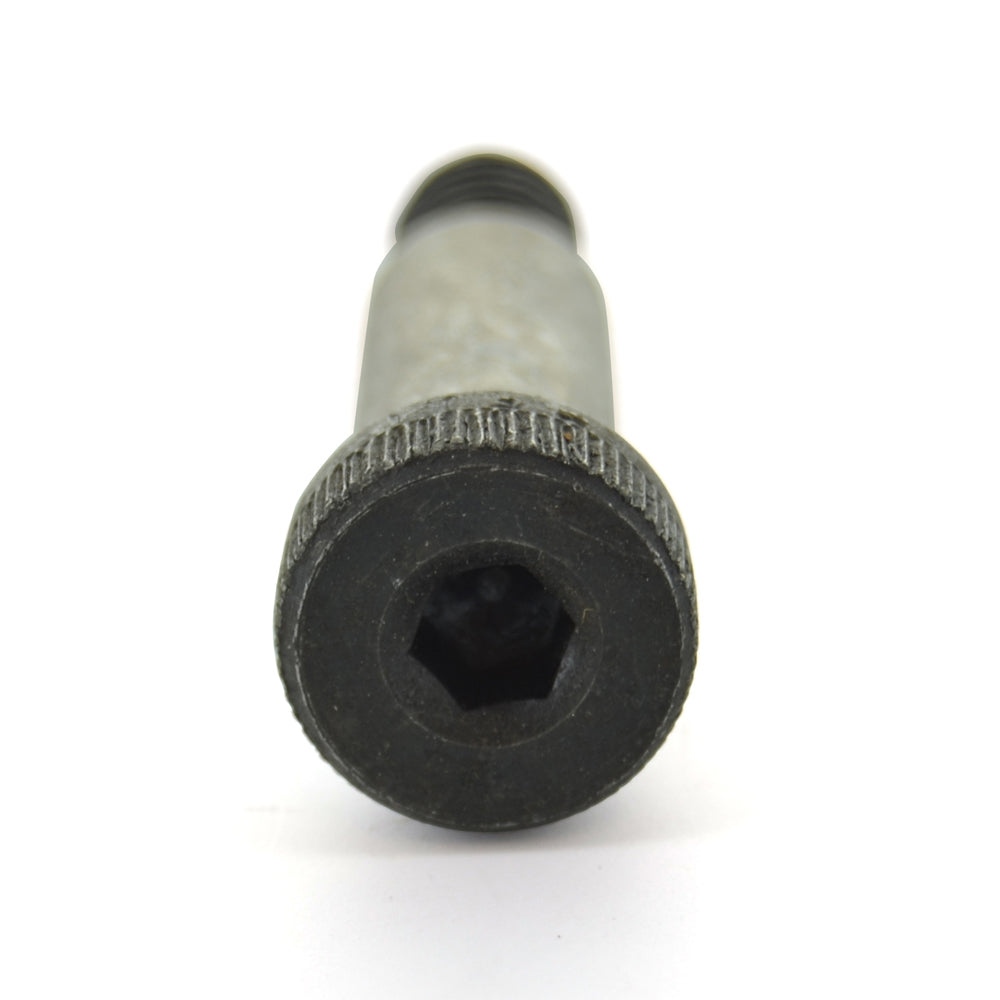

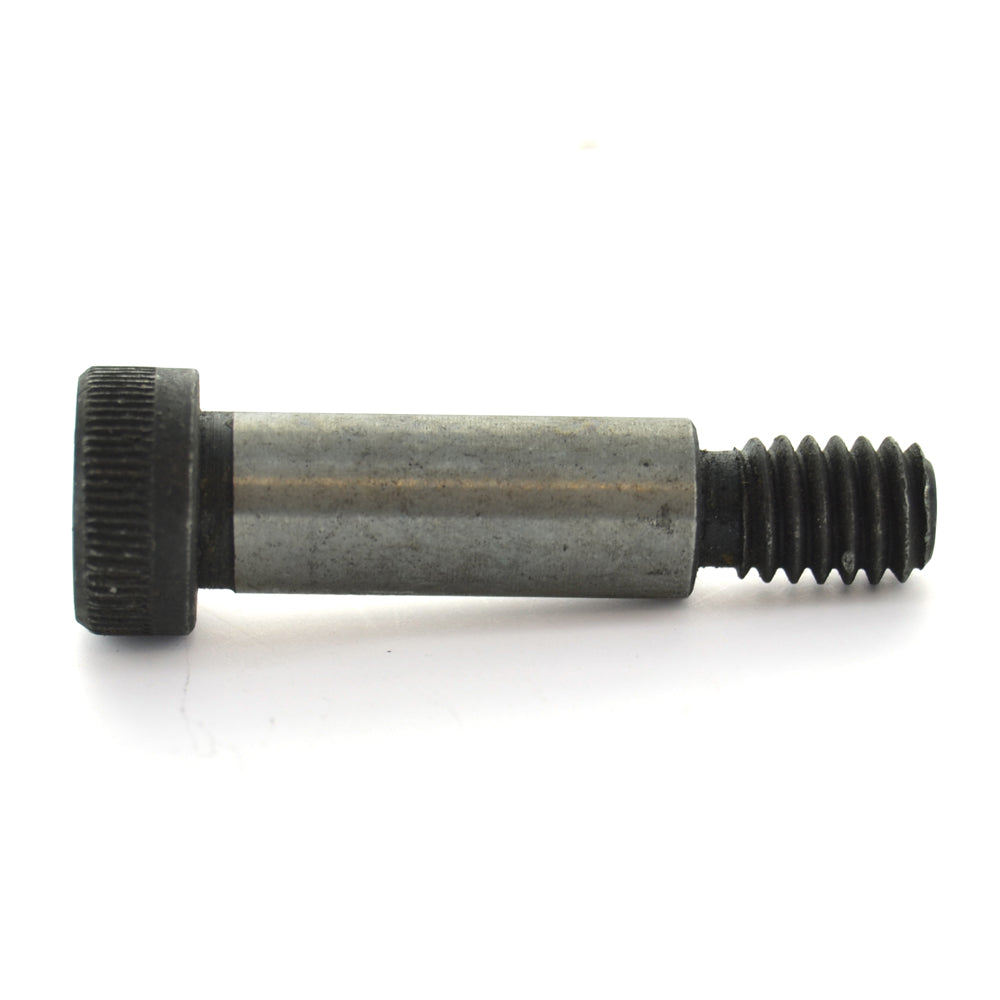

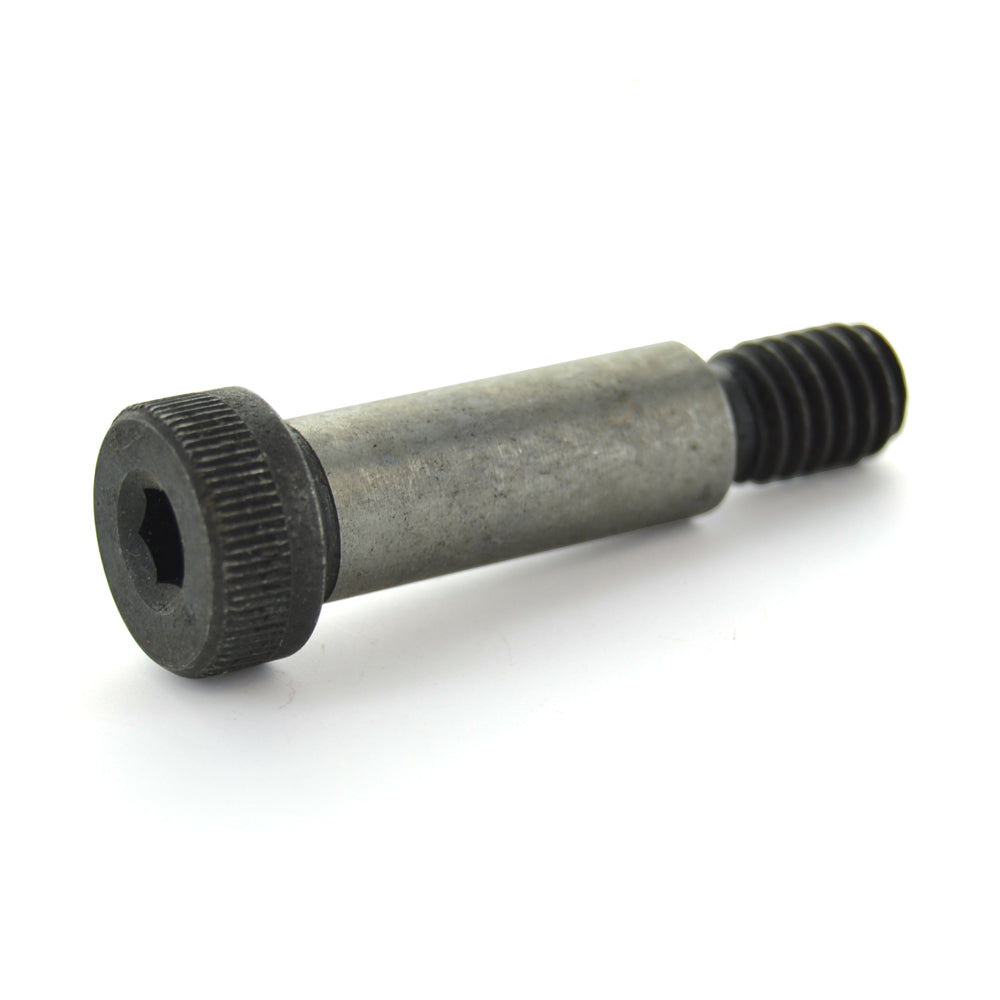

5/16 Inch X 2 Inch Black Oxide Astm A574 Socket Head Shoulder Screw
Item B50.516.2
Shoulder screws also called shoulder bolts allow for rotation of pulleys linkages and other moving parts in engines and mechanical applications.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Length | 5/16 Inch |
| Thread Type | Coarse |
| Head Style | Socket Cap |
| Drive Type | Internal Hex |
| Material | Alloy Steel |
| Finish | Black Oxide |
Description
Description
Shoulder screws also called shoulder bolts allow for rotation of pulleys linkages and other moving parts in engines and mechanical applications.
- Item: Shoulder Screw
- Length: 2
Specifications
General
- Finish
- Black Oxide
- Material
- Alloy Steel
- Measurement System
- Inch
- Origin
- Imported
Dimensions
- Length
- 5/16 Inch
- Thread Type
- Coarse
- Diameter
- 5/16 Inch
- Threads Per Inch
- 20
- Thread Length
- 7/16 Inch
- Head Diameter
- 0.419 – 0.438 Inch
- Head Height
- 0.209 – 0.219 Inch
- Key Size
- 5/32 Inch
- Drive Size
- 5/32
- Thread Diameter
- 1/4 Inch
- Shoulder Length
- 2 Inch
- Shoulder Diameter
- 5/16 Inch
Features
- Drive Type
- Internal Hex
- Head Style
- Socket Cap
- Tensile Strength
- 180,000 psi
- Proof Load
- 140,000 psi
Certifications & Standards
- Standards
- ASME/ANSI B18.3 - ASTM A574
