Photographs are representational and may not be size accurate.

OneSource

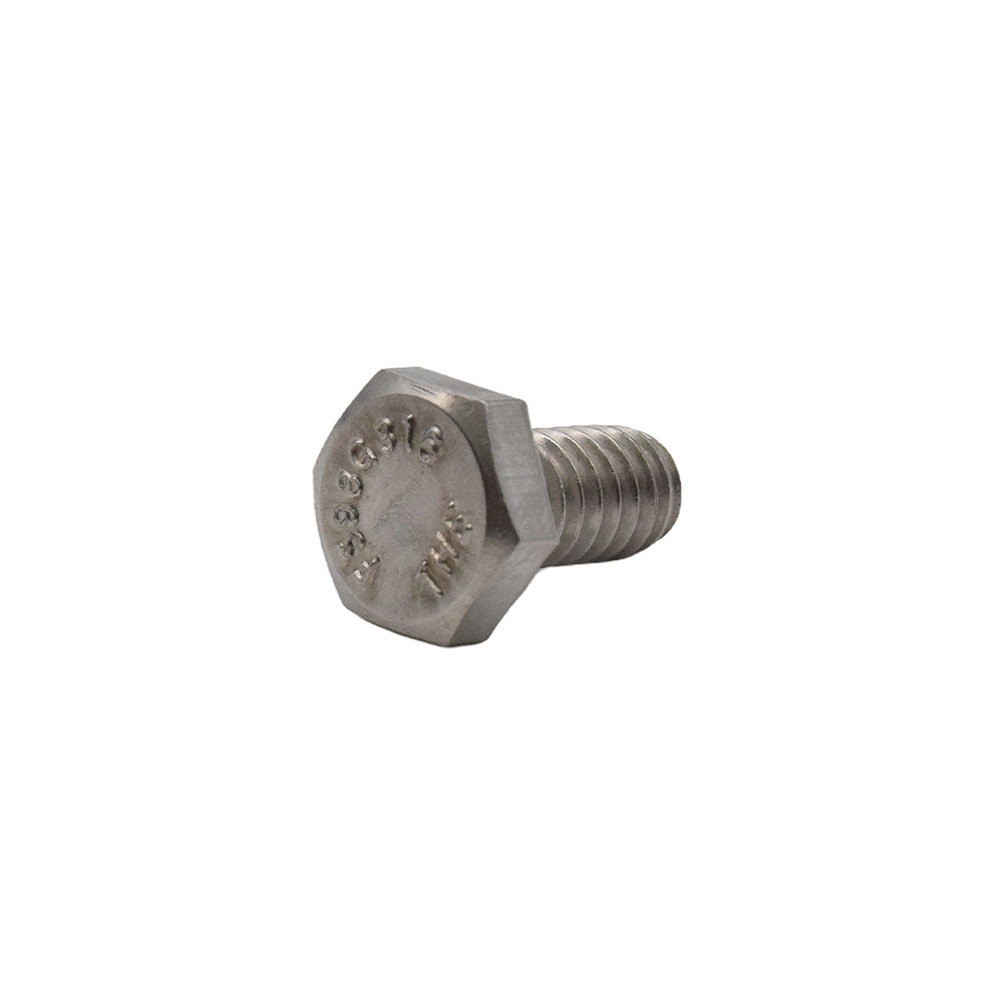

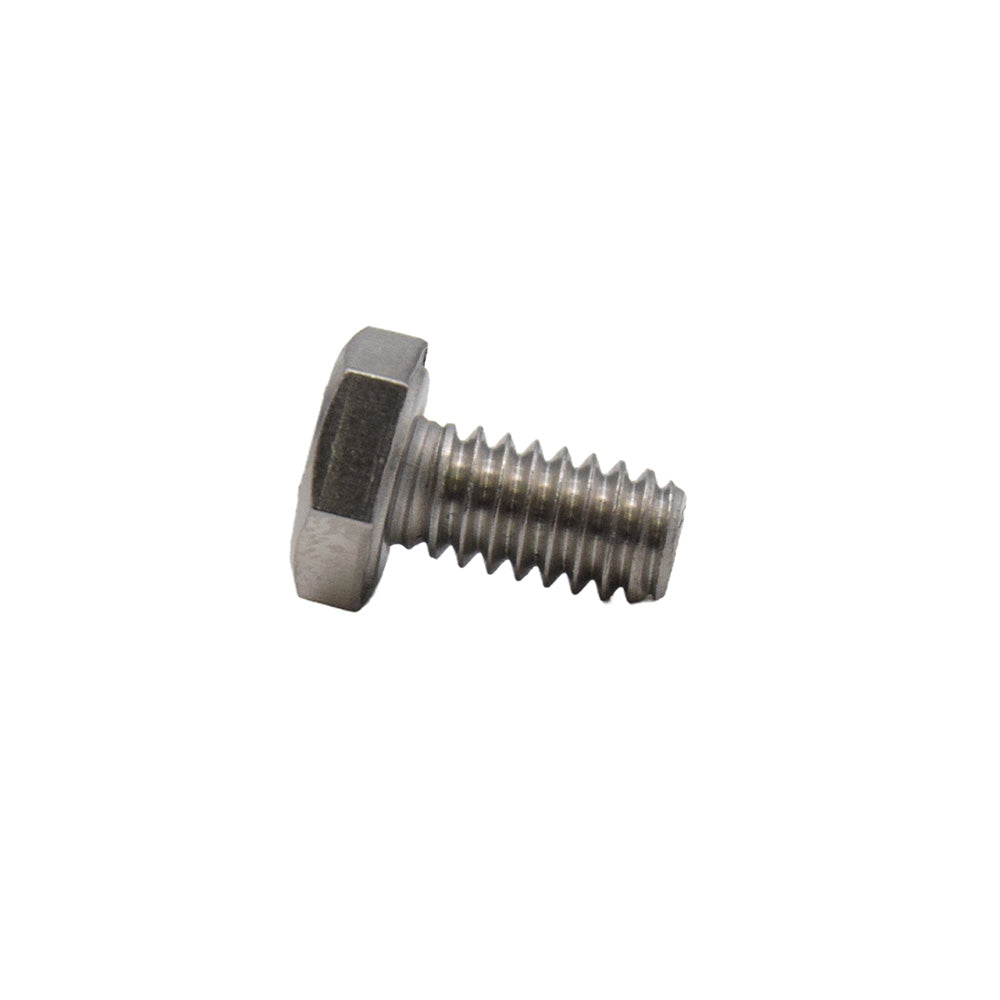

5/8-11 x 2 Inch Coarse Plain 316 Stainless Steel Hex Head Cap Screw

Item A70.58.2

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

Regular price $4.71
Sale price $4.71 Regular price
/ Each

Delivering to

Estimated delivery: 3–7 business days

Order by 2pm CT

Please note that this product is sold in multiples of 1

Photographs are representational and may not be size accurate.

Description

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

  • Item: Cap Screw

Specifications

General

Type
Full Threaded
Material
316 (A4) Stainless Steel
Finish
Plain
Measurement
Inch
Origin
Imported
Thread Type
Coarse

Dimensions

Diameter
5/8 Inch
Length
2 Inch
Threads Per Inch
11
Thread Length
2 Inch
Width Across Corner
1.051 – 1.083 Inch
Head Height
25/64 Inch
Diameter Thread Size
5/8-11
Body Diameter
0.617 – 0.625 Inch

Features

Head Style
Hex
Grade
316
Tensile Strength
100000 – 150,000 psi
Proof Load
65,000 psi

Certifications & Standards

Standards
ANSI B18.2.1 – 1981
