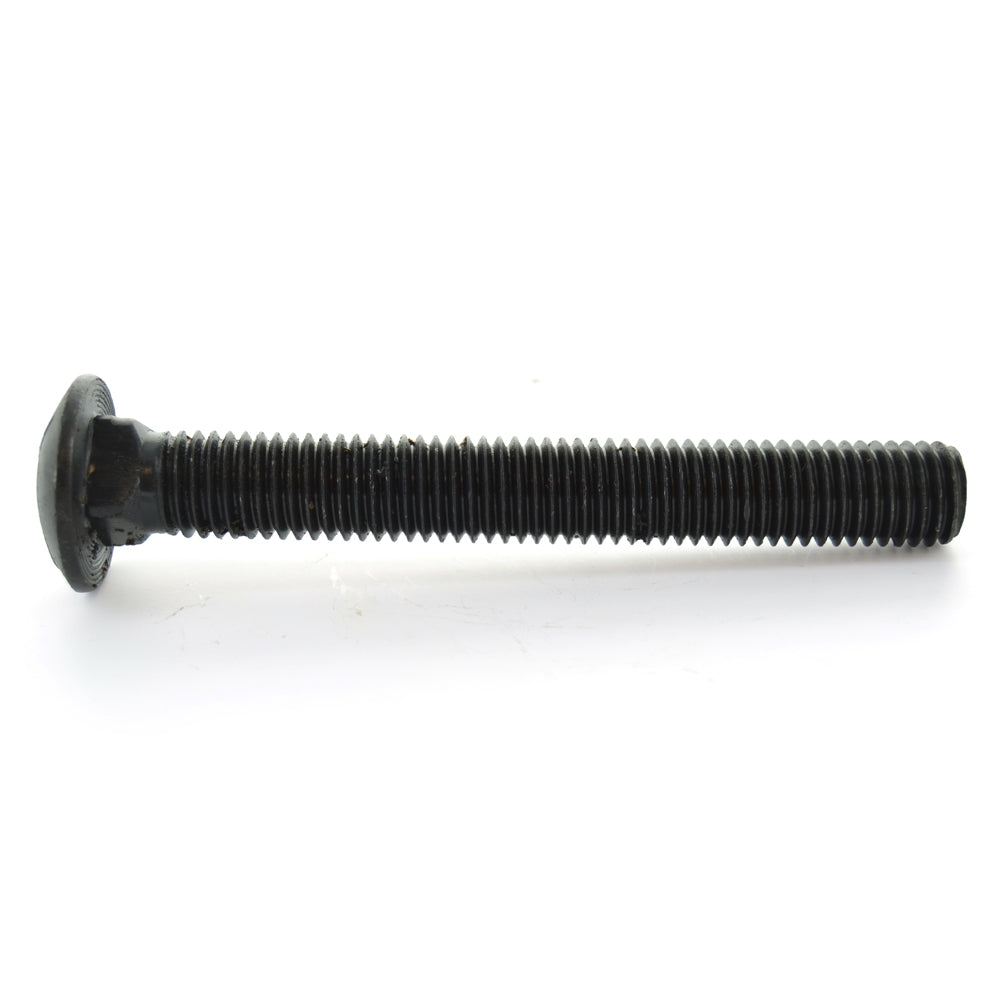

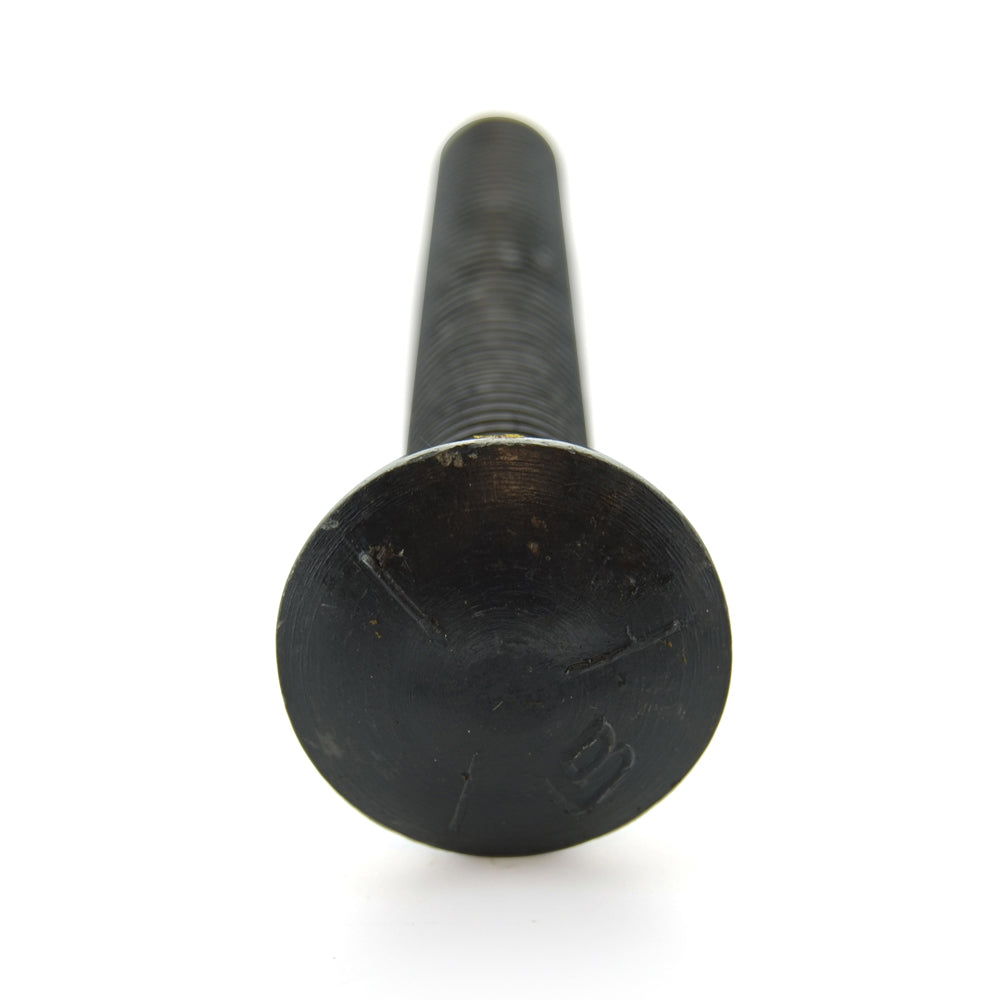

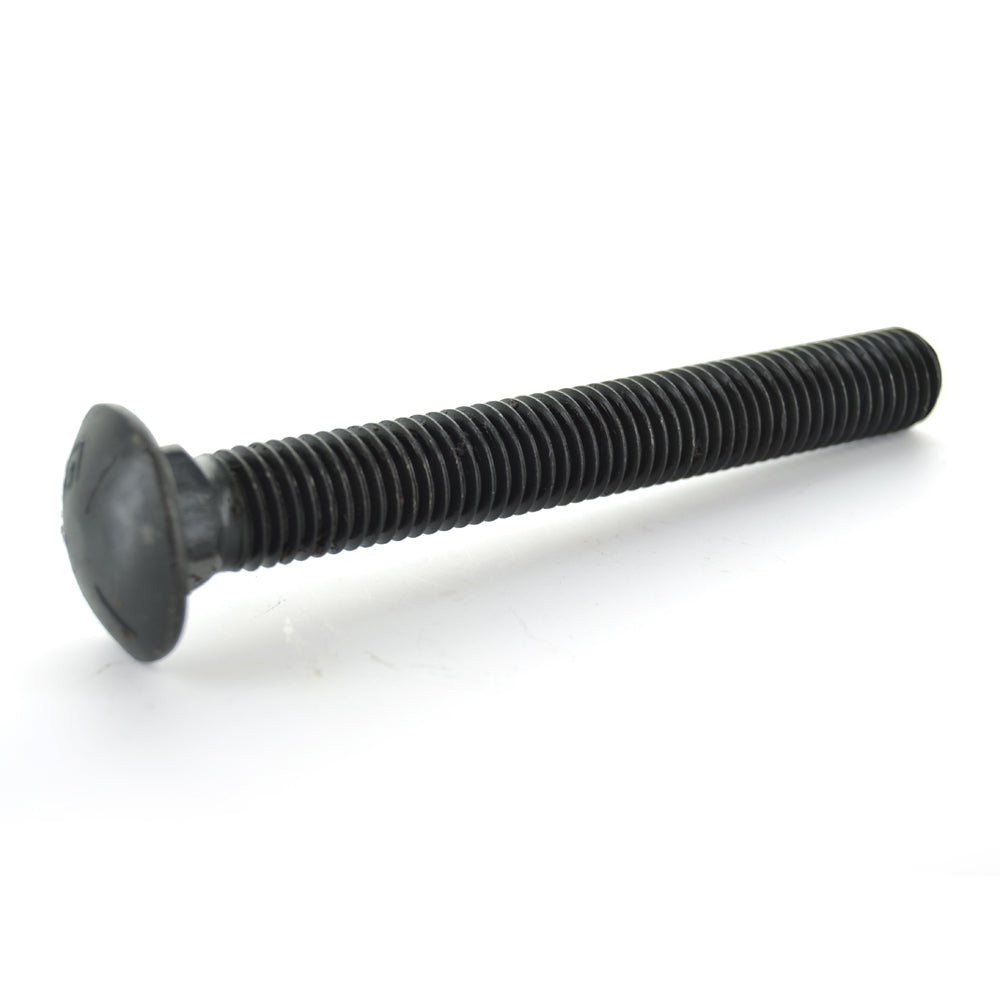

5/8-11 x 6 Inch Coarse Plain Grade 5 Round Head Carriage Bolt
Item C36.01.58.6
Carriage Bolts also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam. It is commonplace to use them into bare timber. Carriage bolts have a squared section under their round head that grip to prevent rotation
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 5/8 Inch |
| Finish | Plain |
| Head Style | Round |
| Length | 6 Inch |
| Measurement | Inch |
| Thread Type | Coarse |
Description
Description
Carriage Bolts also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam. It is commonplace to use them into bare timber. Carriage bolts have a squared section under their round head that grip to prevent rotation
- Origin: Imported
- Light Protective Oil
- Diameter: 5/8 Inch
- Finish: Plain
- Grade: Grade 5
- Head Diameter: 1.219 - 1.344 Inch
- Head Height: 0.313 - 0.344 Inch
- Head Height Max: .344
- Head Style: Round
- Item: Carriage Bolt
- Length: 6 Inch
- Material: Medium Carbon Steel
- Measurement: Inch
- Origin: Imported
- Specification: ASME/ANSI B18.5 SAE J429
- Square Depth: 0.313 - 0.344 Inch
- Square Width: 0.616 - 0.642 Inch
- Thread Length: 6 Inch
- Thread Type: Coarse
- Threads Per Inch: 11
- Type: Full Threaded
