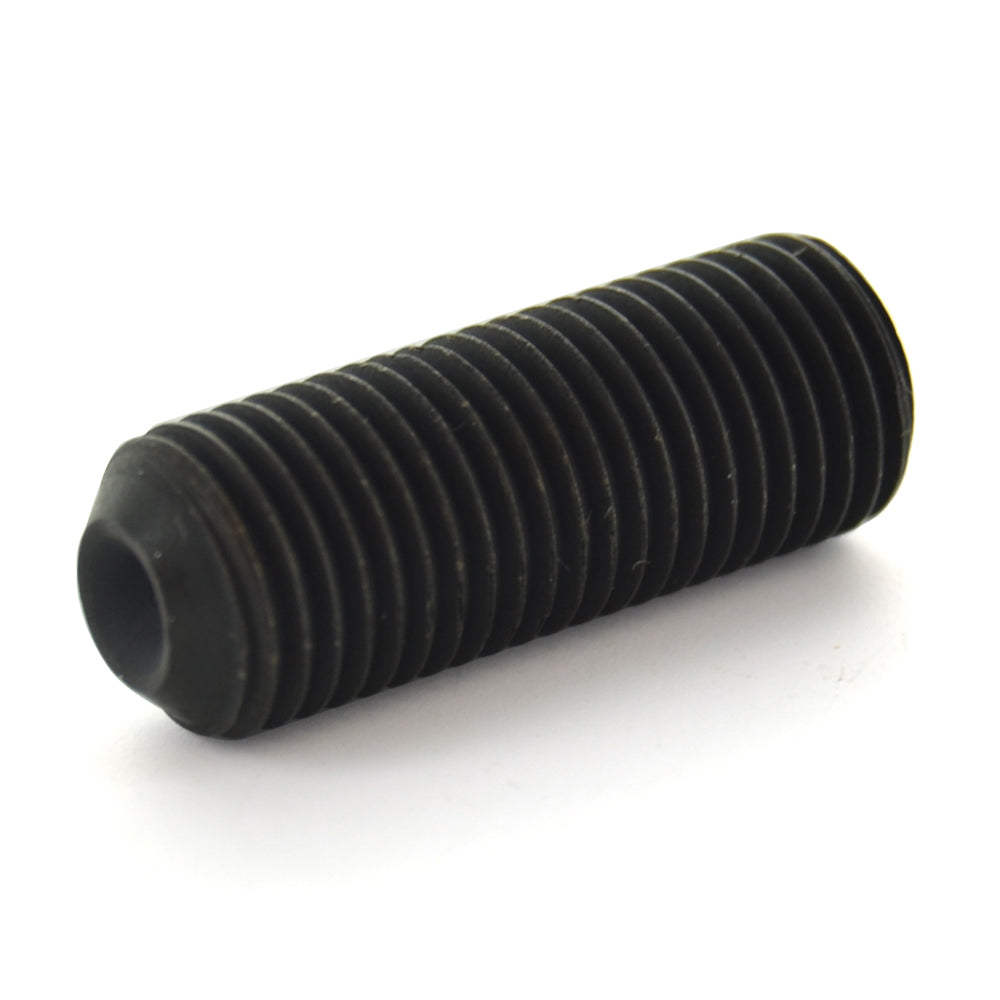

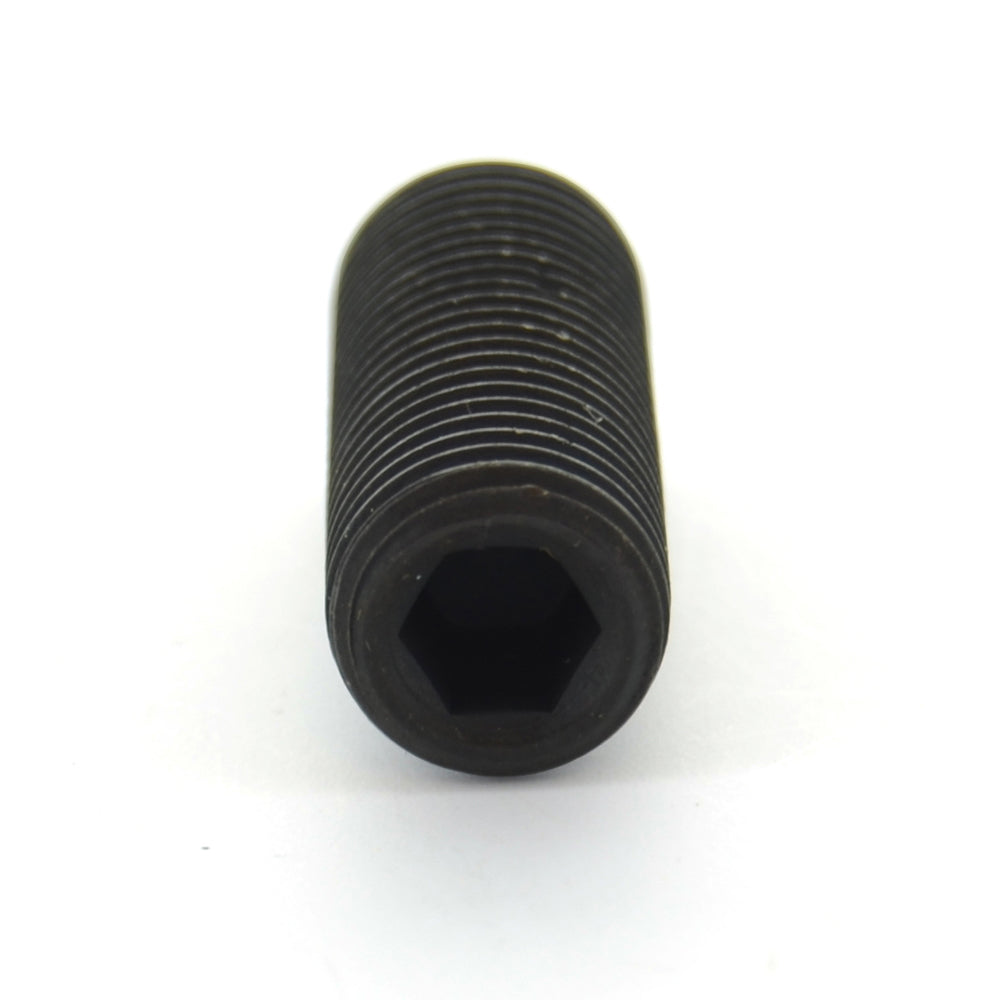

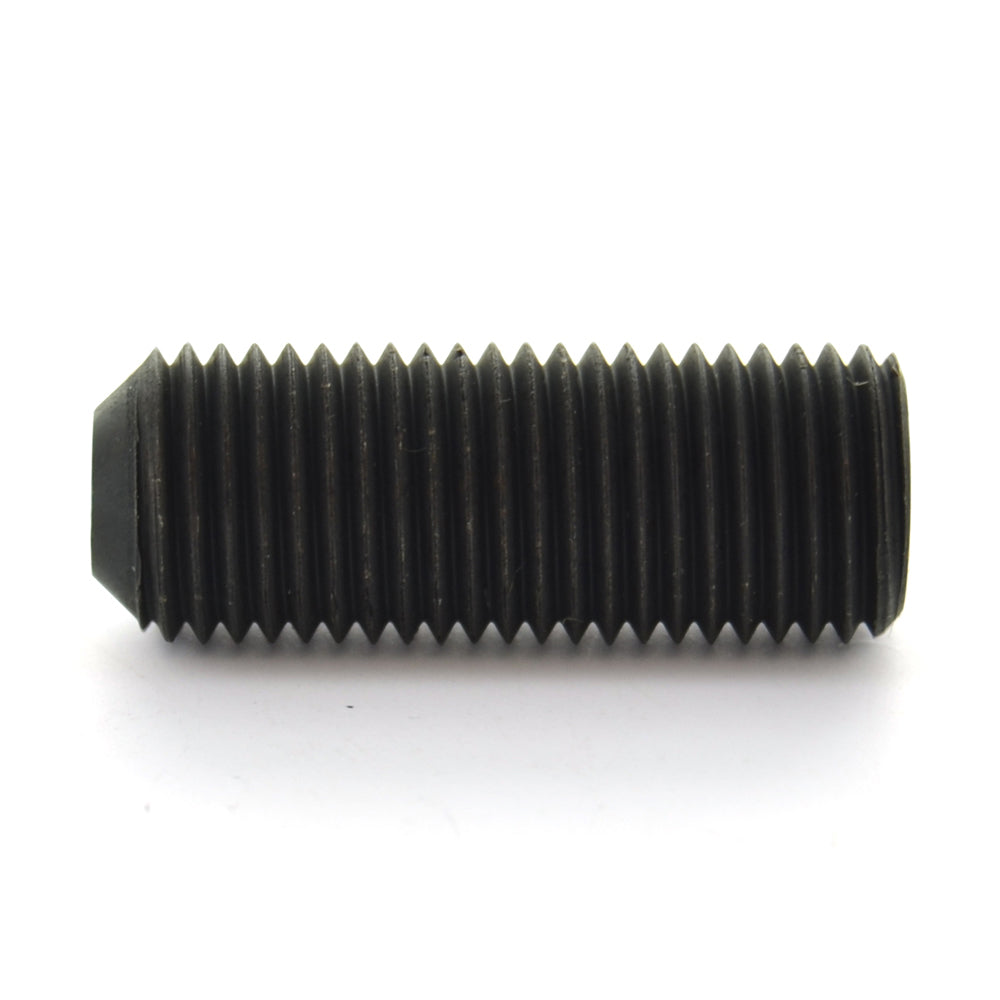

5/8-18 x 5/8 Inch Fine Black Oxide Alloy Steel Cup Point Socket Head Set Screw
Item B49.58.58
Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 5/8 Inch |
| Drive Type | Internal Hex |
| Finish | Black Oxide |
| Length | 5/8 Inch |
| Material | Alloy Steel |
| Measurement | Inch |
| Point Type | Cup Point |
| Thread Type | Fine |
Description
Description
Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.
- Diameter: 5/8 Inch
- Drive Size: 5/16 Inch
- Drive Type: Internal Hex
- Finish: Black Oxide
- Head Style: Socket
- Industry Standard: ASME/ANSI B18.3
- Item: Set Screw
- Key Engagement: 0.312 Inch
- Length: 5/8 Inch
- Material: Alloy Steel
- Measurement: Inch
- Origin: Imported
- Point Diameter: 0.347 - 0.371 Inch
- Point Type: Cup
- Specification: ASME/ANSI B18.3 ASTM F912
- Tensile Strength : 180000 psi
- Thread Type: Fine
- Threads Per Inch: 18
- Type: Full Threaded
