OneSource

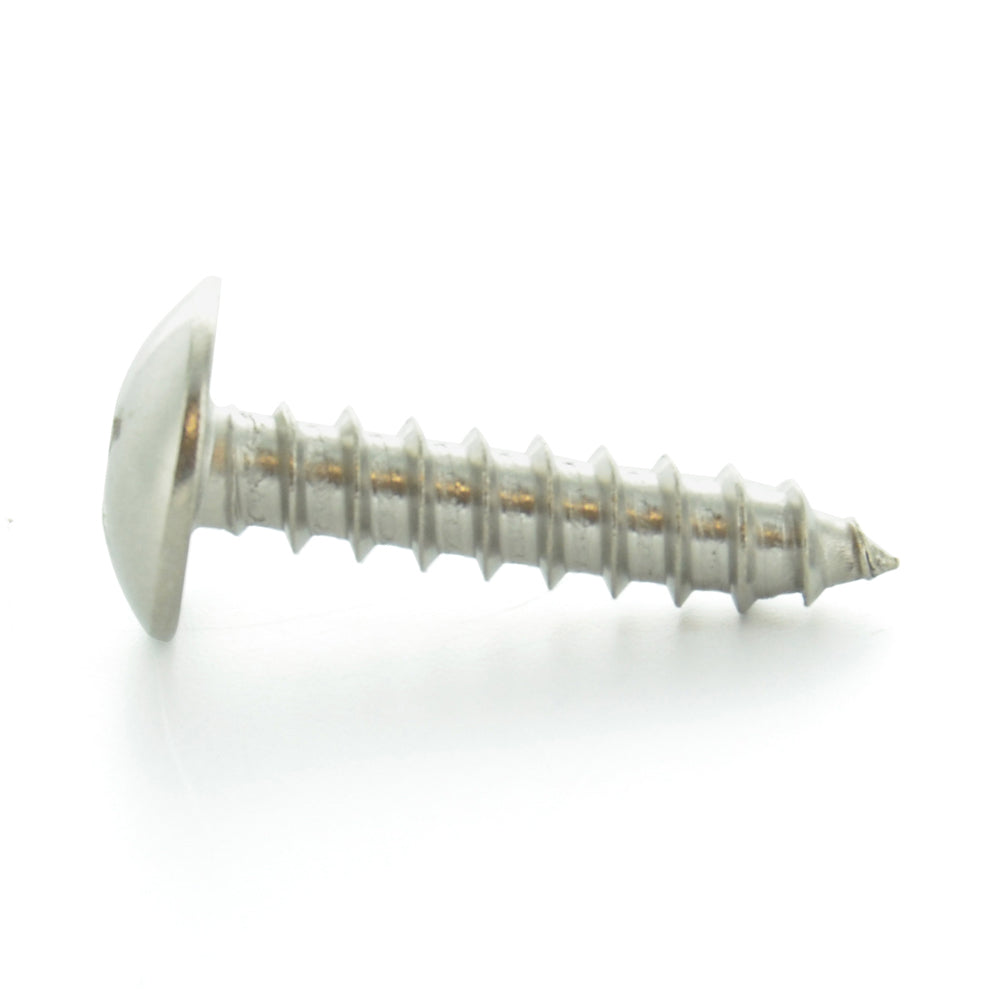

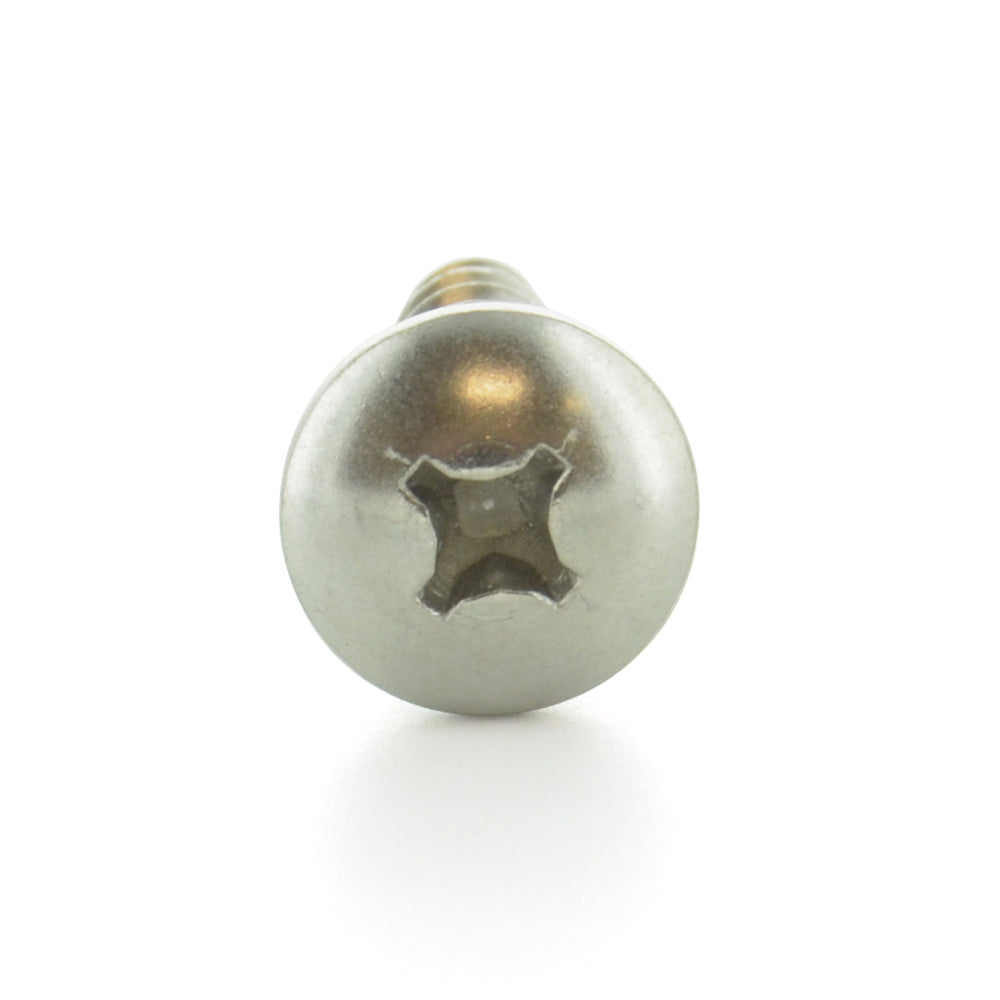

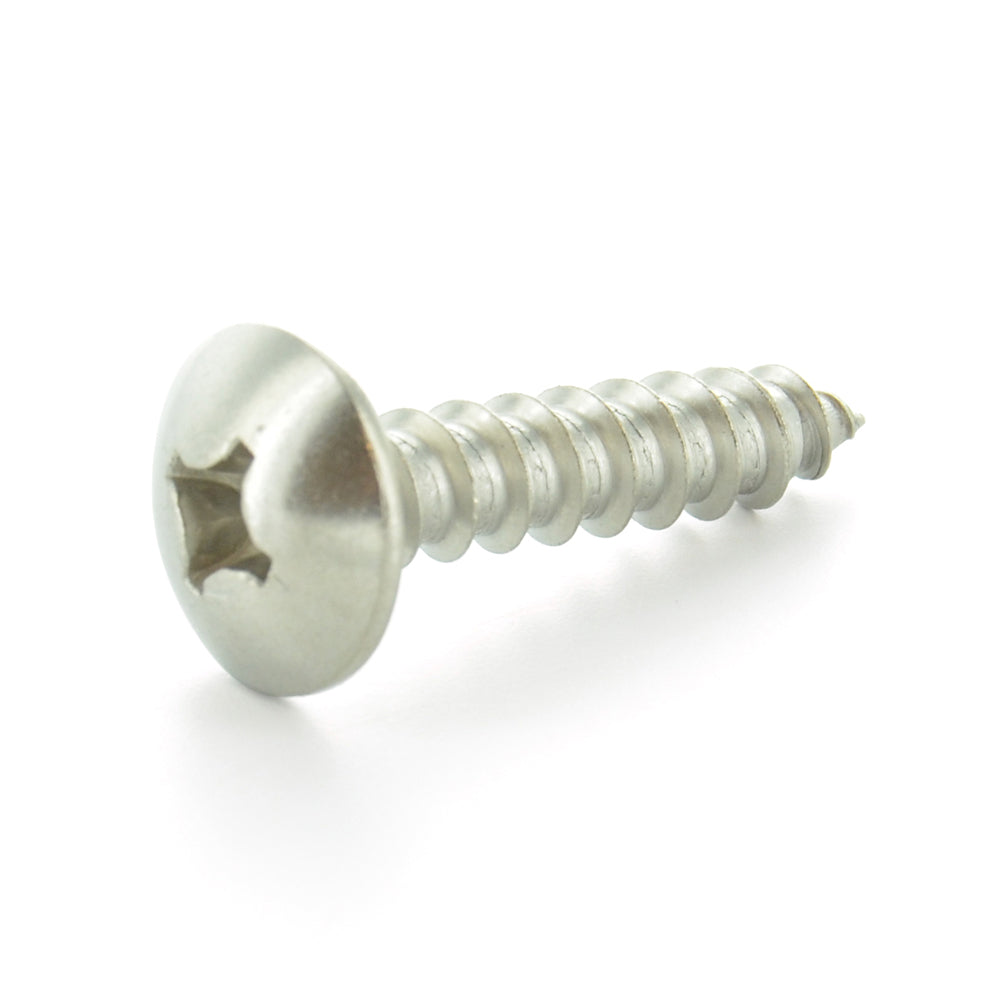

#6 x 3/8 Inch Plain 18-8 (A2) Stainless Steel Truss Head Type-A Self-Tapping Sheet Metal Screw
Item B12.6.38
Truss head sheet metal screws have a wider head than standard round head screws to extend holding power and reduce the risk of cracking thin metal. They fasten 0.025" and thinner sheet metal.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #6 |
| Drive Type | Phillips |
| Head Style | Truss |
| Length | 3/8 Inch |
| Material | 18-8 Stainless Steel |
| Measurement | Inch |
| Origin | IMPORT |
| Point Type | Type A |
Description
Description
Truss head sheet metal screws have a wider head than standard round head screws to extend holding power and reduce the risk of cracking thin metal. They fasten 0.025" and thinner sheet metal.
- Origin: Imported
- Drive Size: #2
- Drive Type: Phillips
- Finish: Plain
- Head Diameter: 0.303 - 0.321 Inch
- Head Height: 0.074 - 0.086 Inch
- Head Style: Truss
- Industry Standard: ASME/ANSI B18.6.4 SAE J78
- Item: Self-Tapping Sheet Metal Screw
- Length: 3/8 Inch
- Material: 18-8 (A2) Stainless Steel
- Measurement: Inch
- Origin: Imported
- Point Type: Type-A
- Recess Diameter: 0.151 Inch
- Recess Penetration Gagging Depth: 0.048 - 0.073 Inch
- Specification: ASME/ANSI B18.6.4 SAE J78
- Type: Full Threaded
