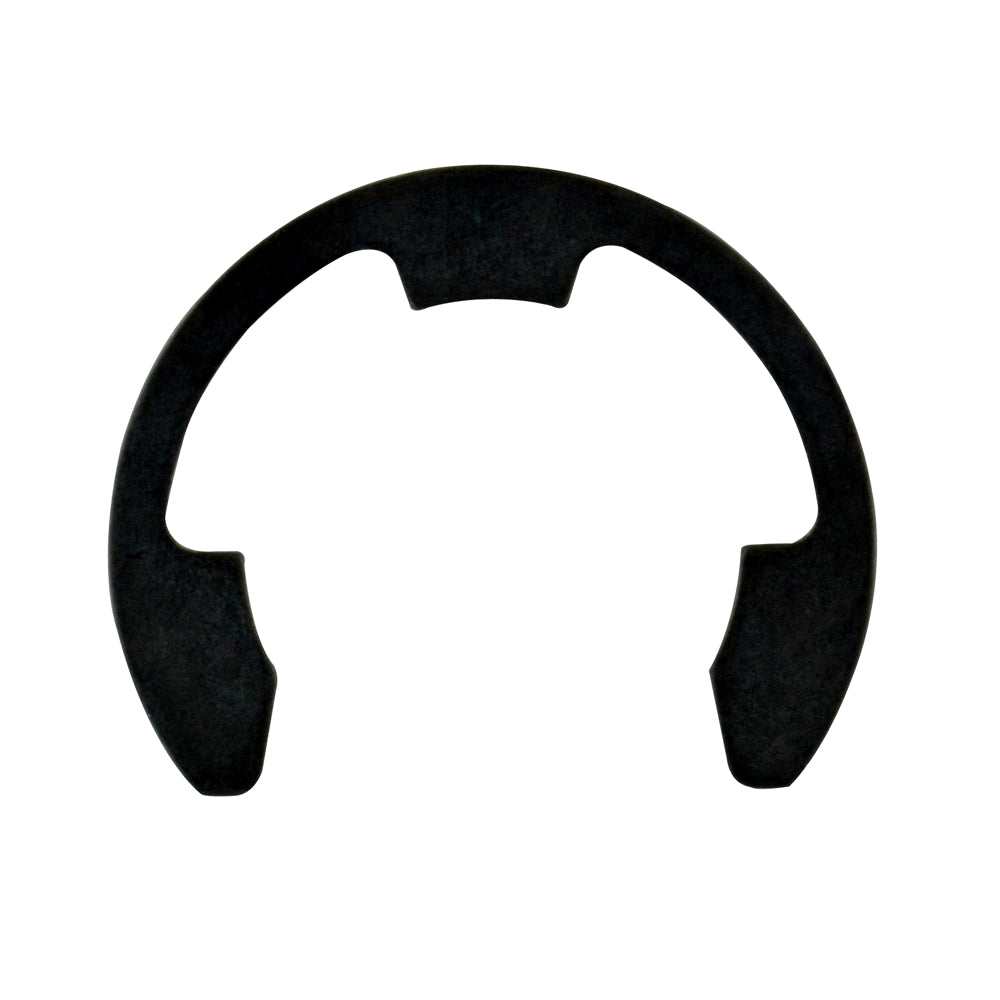

63/64 Inch Phosphate Carbon Spring Steel E-Clip Retaining Ring
Item E94.1
Circlips (also known as retaining rings) are types of fastener which look like flexible open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings retaining clips C-type Jesus clips snap rings and E-type.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Description
Description
Circlips (also known as retaining rings) are types of fastener which look like flexible open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings retaining clips C-type Jesus clips snap rings and E-type.
- Item: E-Clip
Specifications
General
- Material
- Spring Steel
- Measurement System
- Inch
- Type
- Special Stamped
- Finish
- Black
- Plating
- Phosphate
- Allowable Corner Radii
- 0.085 Inch
- Edge Margin
- 0.148 Inch
Dimensions
- Head Diameter
- 1.500
- Thickness
- 0.050 Inch
- Ring Free Diameter
- 0.822 Inch
- Ring Free Diameter Tolerance
- +0.003/-0.005
- Thickness Tolerance
- +/-0.002
- Shaft Diameter
- 63/64 Inch
- Groove Width
- 0.060 Inch
- Groove Diameter
- 0.840 Inch
- Groove Depth
- 0.070 Inch
- Clearance Diameter Released In Groove
- 1.530 Inch
- Groove Diameter To Shaft Concentricity
- 0.004 Inch
- Groove Width Tolerance
- +0.003/-0.000
- Clear Outside Diameter
- 1.500 Inch
Features
- Retainer Type
- E-Clip
- Hardness
- HRC 47-52
Miscellaneous
- Typical Applications
- E-clip
- Allowable Corner Chamfers
- 0.065 Inch
- RPM Limits
- 6,500 RPM
- Thrust Max Load
- 2,700 lb
