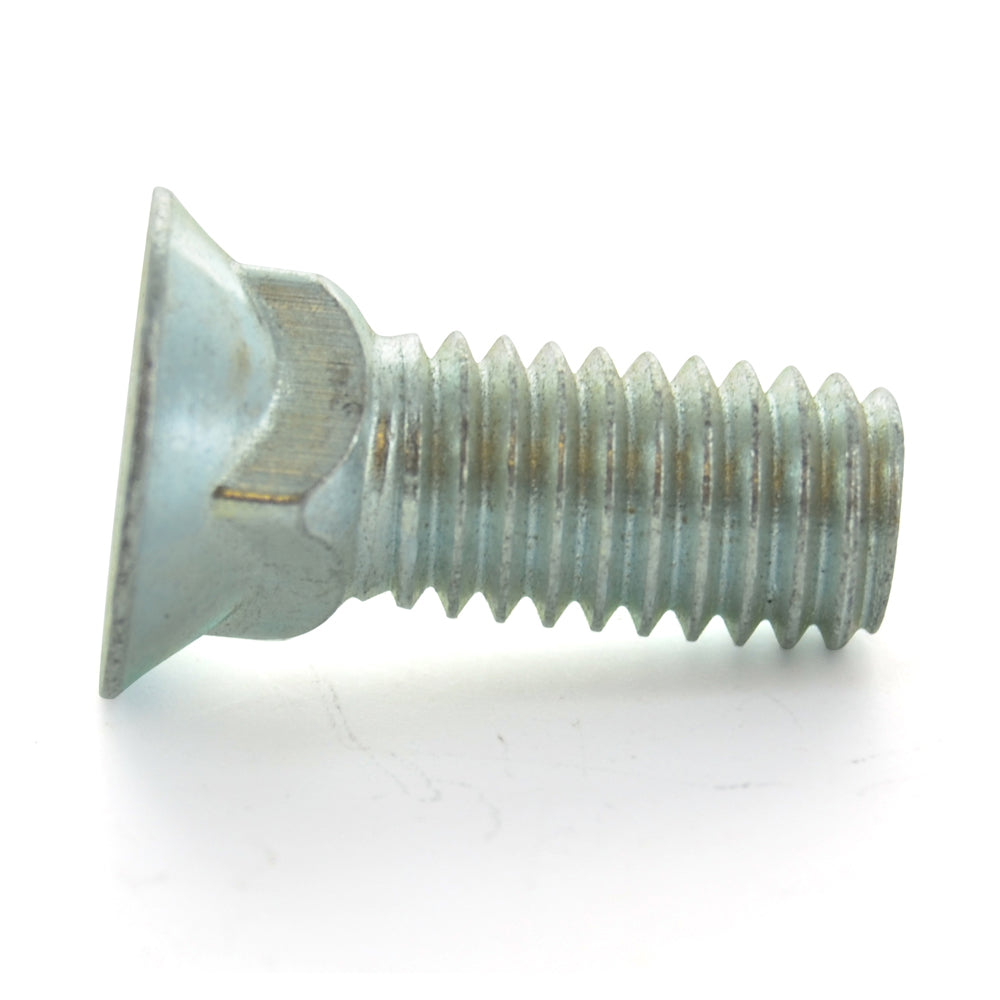

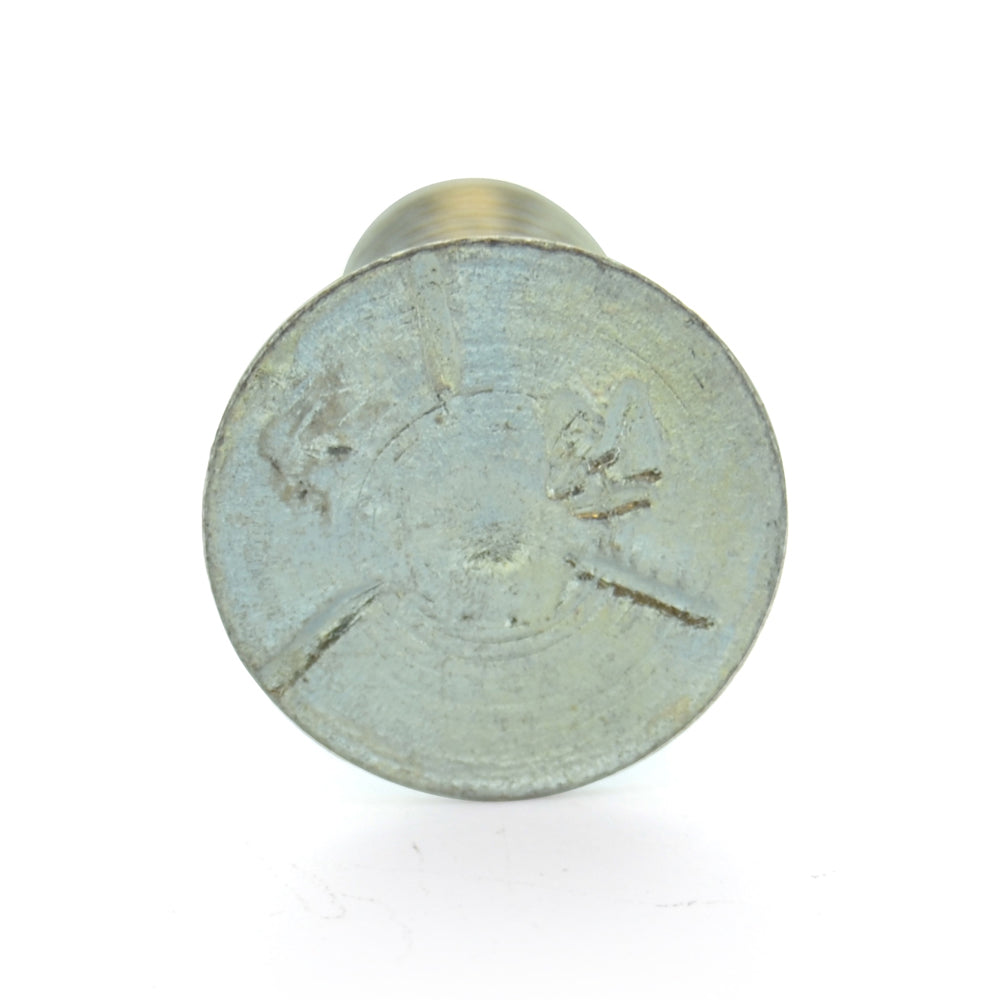

7/16-14 x 3-1/2 Inch Coarse Zinc Plated Grade 5 Flat Head Plow Bolt
Item C33.716.312
Grade 5 plow bolts are used in medium-duty small or confined operational systems. They come in black oxide which is corrosion resistant in dry environments or zinc-plated finishes which are corrosion resistant in wet environments.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 7/16 Inch |
| Finish | Zinc |
| Head Style | Flat |
| Length | 3-1/2 Inch |
| Measurement | Inch |
| Thread Type | Coarse |
Description
Description
Grade 5 plow bolts are used in medium-duty small or confined operational systems. They come in black oxide which is corrosion resistant in dry environments or zinc-plated finishes which are corrosion resistant in wet environments.
- Plating : Zinc
- Tensile Strength : 120 000
- ANSI B18.3Body Diameter: 0.421 - 0.438 Inch
- Diameter: 7/16 Inch
- Finish: Zinc
- Grade: Grade 5
- Head Diameter: 0.766 - 0.826 Inch
- Head Diameter Max: .826
- Head Style: #3 Flat Regular
- Industry Standard: ASME/ANSI B18.9
- Item: Plow Bolt
- Length: 3-1/2 Inch
- Material: Medium Carbon Steel
- Measurement: Inch
- Origin: Imported
- Proof Load: 85000 psi
- Specification: ASME/ANSI B18.9 SAE J429
- Square Depth: 0.328 - 0.364 Inch
- Square Width: 0.438 - 0.450 Inch
- Tensile Strength : 25/32 Inch
- Thread Length: 1-1/8 Inch
- Thread Type: Coarse
- Threads Per Inch: 14
- Type: Partial Threaded
