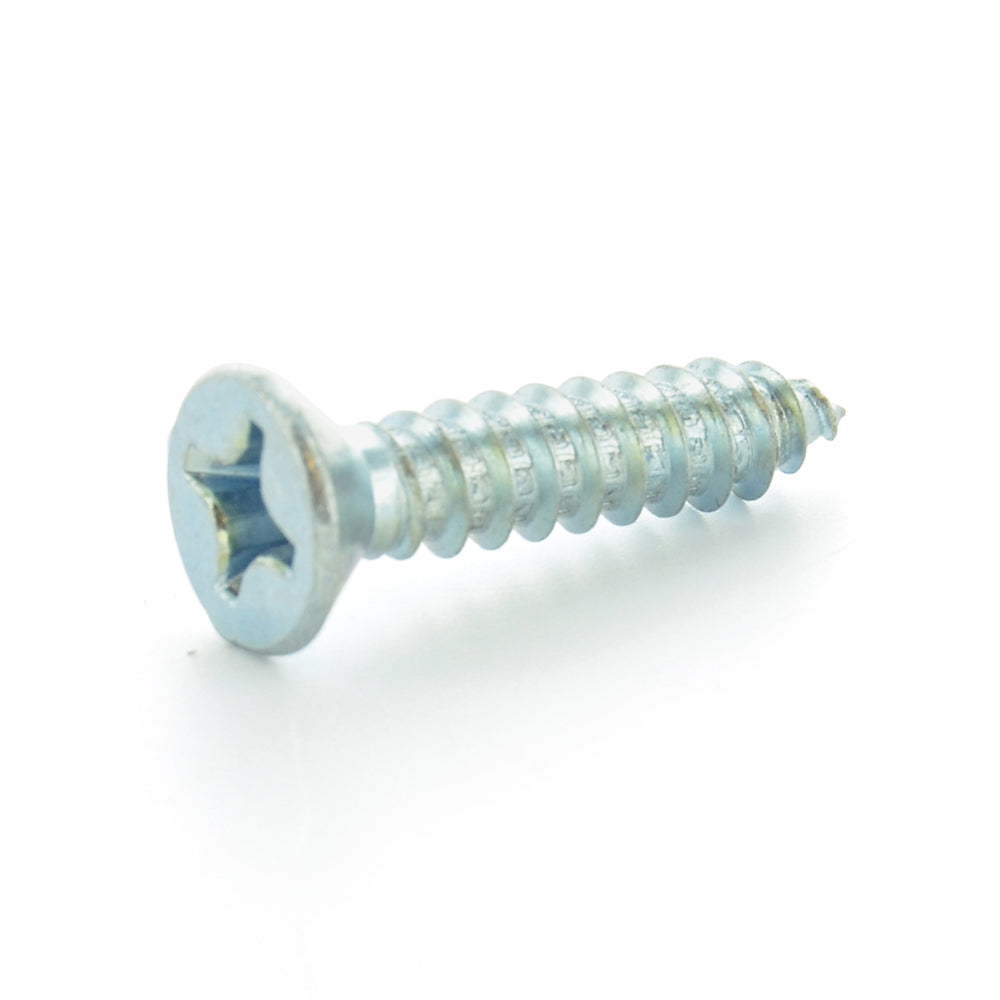

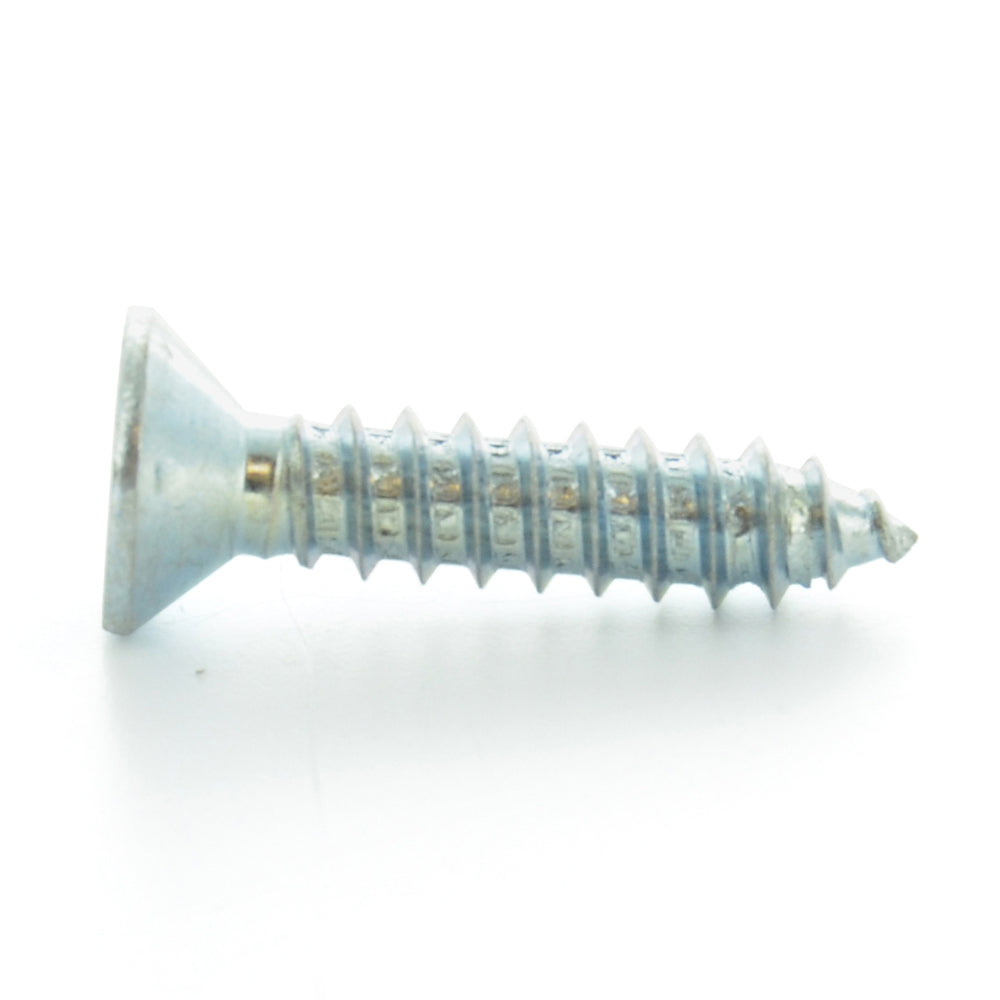

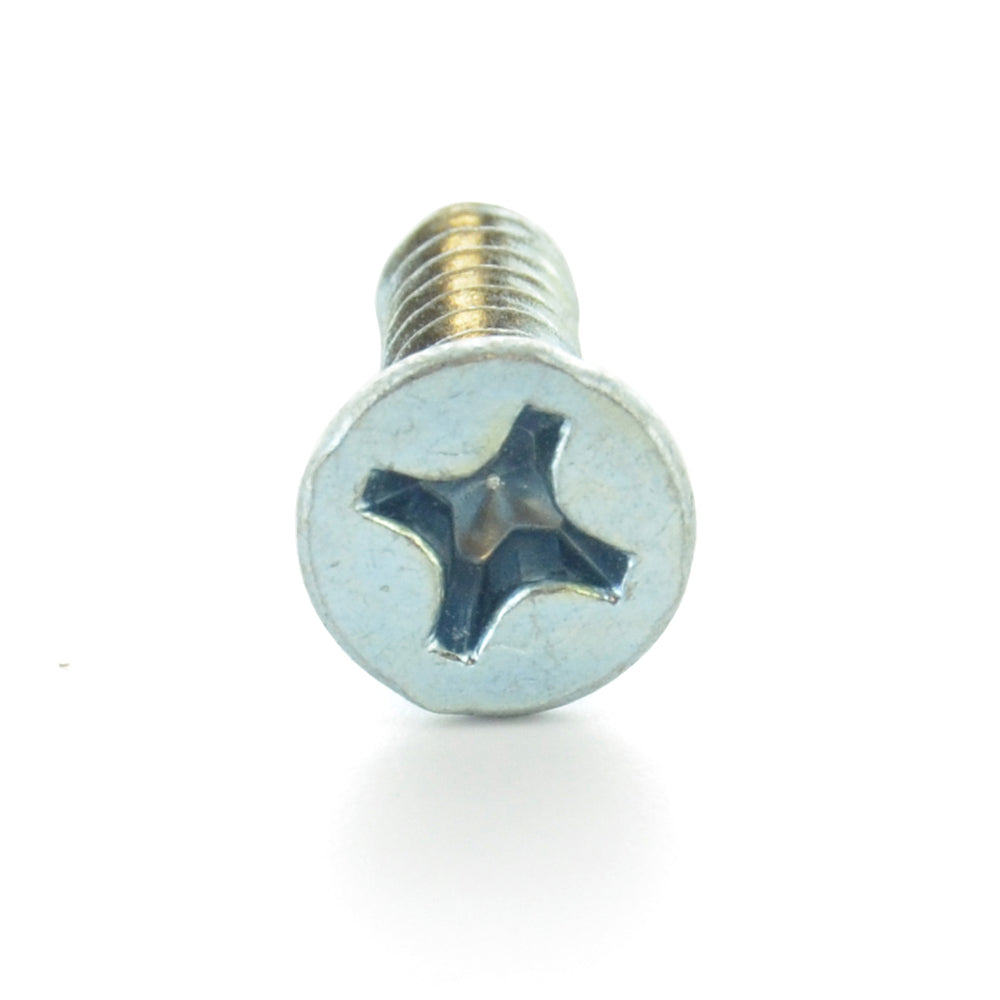

#8-18 x 1-3/4 Inch Zinc Plated Low Carbon Steel Flat - Countersunk Head Type AB Self-Tapping Sheet Metal Screw
Item B13.8.134
These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #8 |
| Length | 1-3/4 Inch |
| Head Style | Flat |
| Drive Type | Phillips |
| Material | Alloy Steel |
| Finish | Zinc |
Description
Description
These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.
- Finish as per ASTM F1941 Fe/Zn 3AT
- Item: Self-Tapping Sheet Metal Screw
Specifications
General
- Finish
- Zinc
- Material
- Alloy Steel
- Measurement System
- Inch
- Origin
- Imported
- Type
- Full Threaded
Dimensions
- Diameter
- #8
- Length
- 1-3/4 Inch
- Threads Per Inch
- 18
- Head Diameter
- 0.282 – 0.312 Inch
- Head Height
- 0.072 Inch
- Drive Size
- #2
- Recess Penetration Gagging Depth
- 0.087 – 0.110 Inch
- Recess Diameter
- 0.182 Inch
Features
- Drive Type
- Phillips
- Head Style
- Flat
- Point Type
- Drill Point
Certifications & Standards
- Standards
- ASME/ANSI B18.6.4 - SAE J78 - SAE J933
