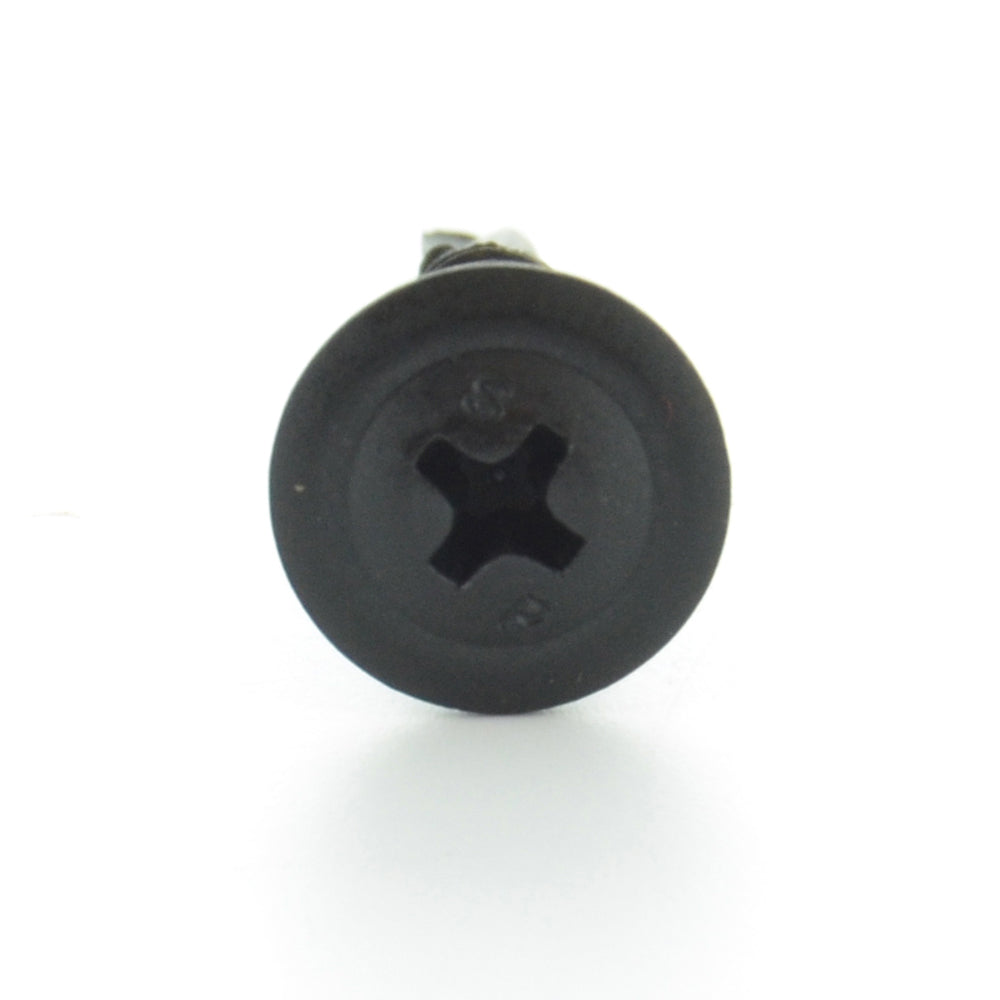

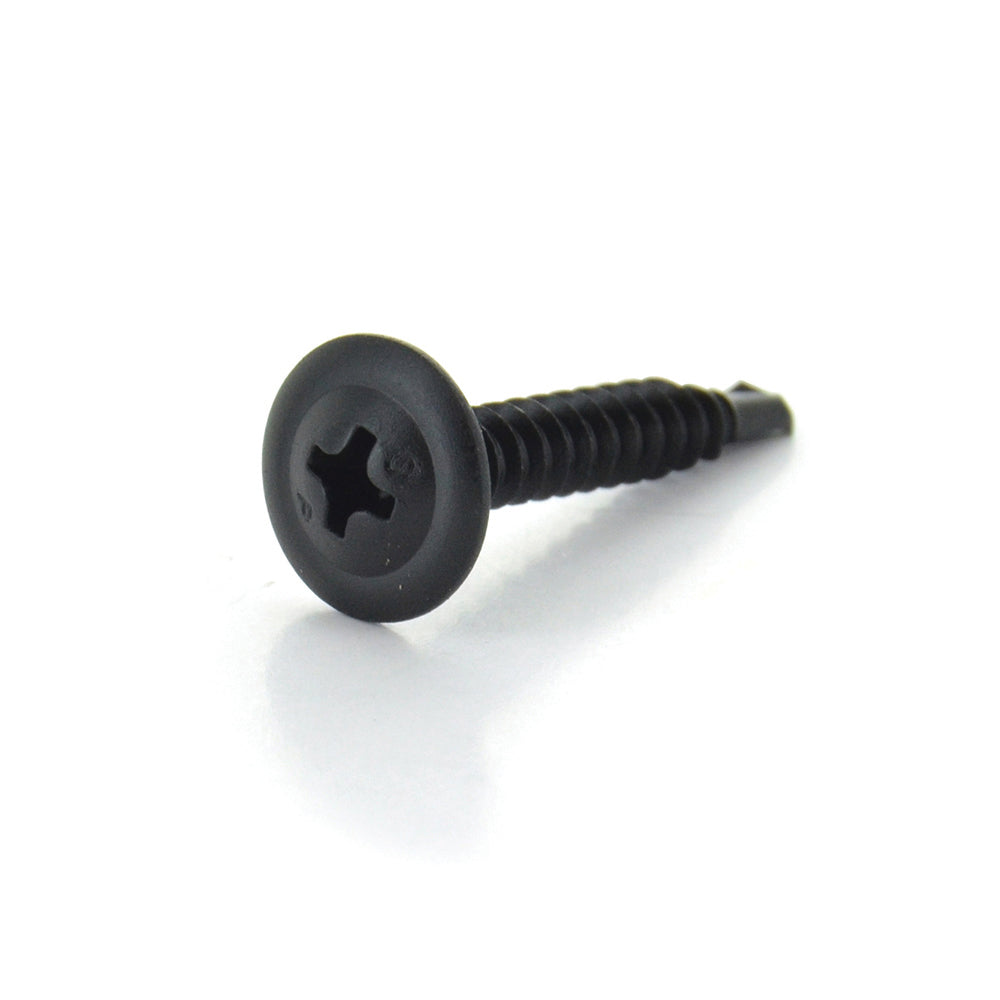

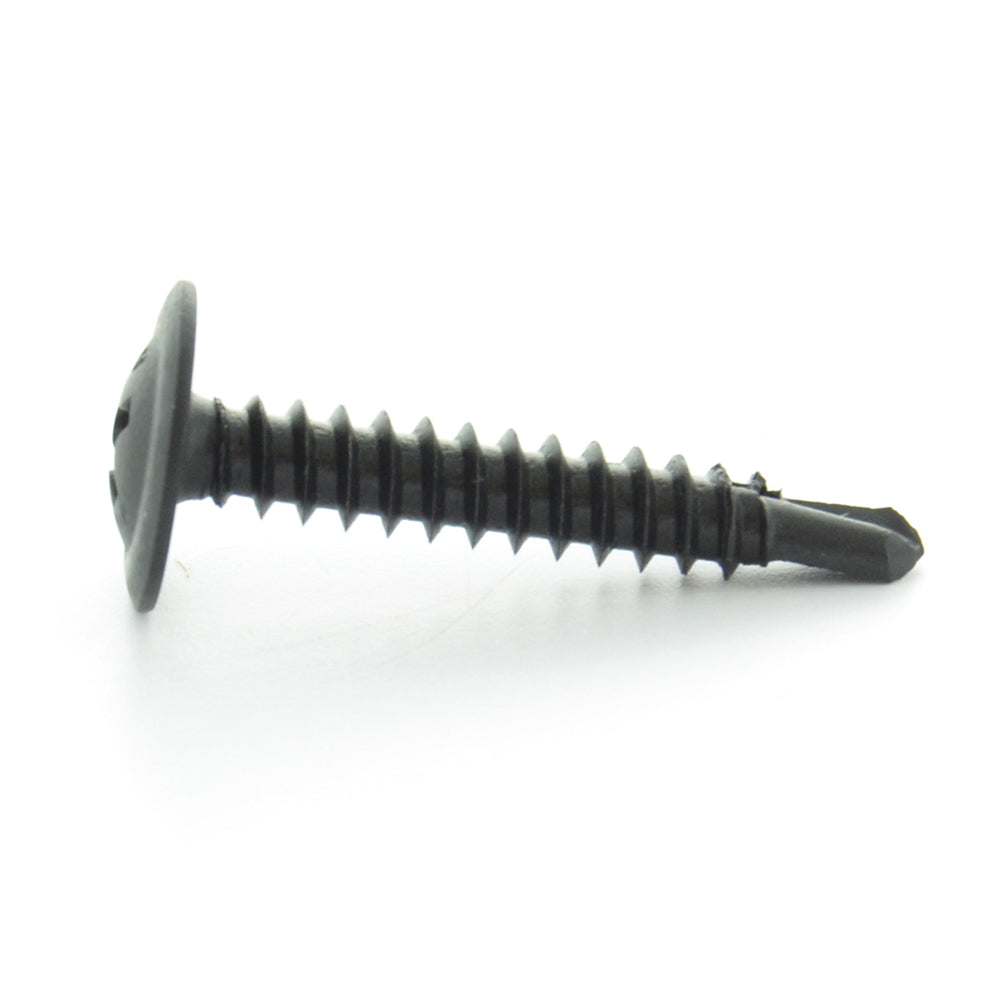

#8-18 x 1 Inch Black Oxide Steel #2 Point Modified Truss Head Self-Drilling Tek Screw
Item B21.02.8.1
Truss head sheet metal screws have a wider head than standard round head screws to extend holding power and reduce the risk of cracking thin metal. They fasten 0.025" and thinner sheet metal.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #8 |
| Length | 1 Inch |
| Head Style | Modified Truss |
| Drive Type | Phillips |
| Material | Steel |
| Finish | Black Oxide |
Description
Description
Truss head sheet metal screws have a wider head than standard round head screws to extend holding power and reduce the risk of cracking thin metal. They fasten 0.025" and thinner sheet metal.
- Finishing screw for use when aesthetics are important
- Item: Self-Drilling TEK Screw
Specifications
General
- Finish
- Black Oxide
- Material
- Steel
- Measurement System
- Inch
- Origin
- Imported
Dimensions
- Diameter
- #8
- Length
- 1 Inch
- Threads Per Inch
- 18
- Head Diameter
- 0.364 – 0.384 Inch
- Head Height
- 0.088 – 0.102 Inch
- Drive Size
- #2
- Recess Penetration Gagging Depth
- 0.063 – 0.088 Inch
- Recess Diameter
- 0.166 Inch
- Drill Capacity
- 0.035 – 0.100 Inch
Features
- Drive Type
- Phillips
- Head Style
- Modified Truss
- Point Type
- 3.2 mm
Certifications & Standards
- Standards
- ASME/ANSI B18.6.4 - SAE J78 - SAE J933
