Description
Square Drive Pan head self drilling screws have a self driller cutting (TEK) point to pierce through 20 to 14 gauge metals. The heads use a square bit #1 through #3 driver depending on the size of the screw. These screws are used in the exterior elements. Square Drive screws are preferred by some over traditional Phillips Drives because the Square Drive allows for a higher torque installation reduces cam out and reduces screw stripping when compared to Phillips.

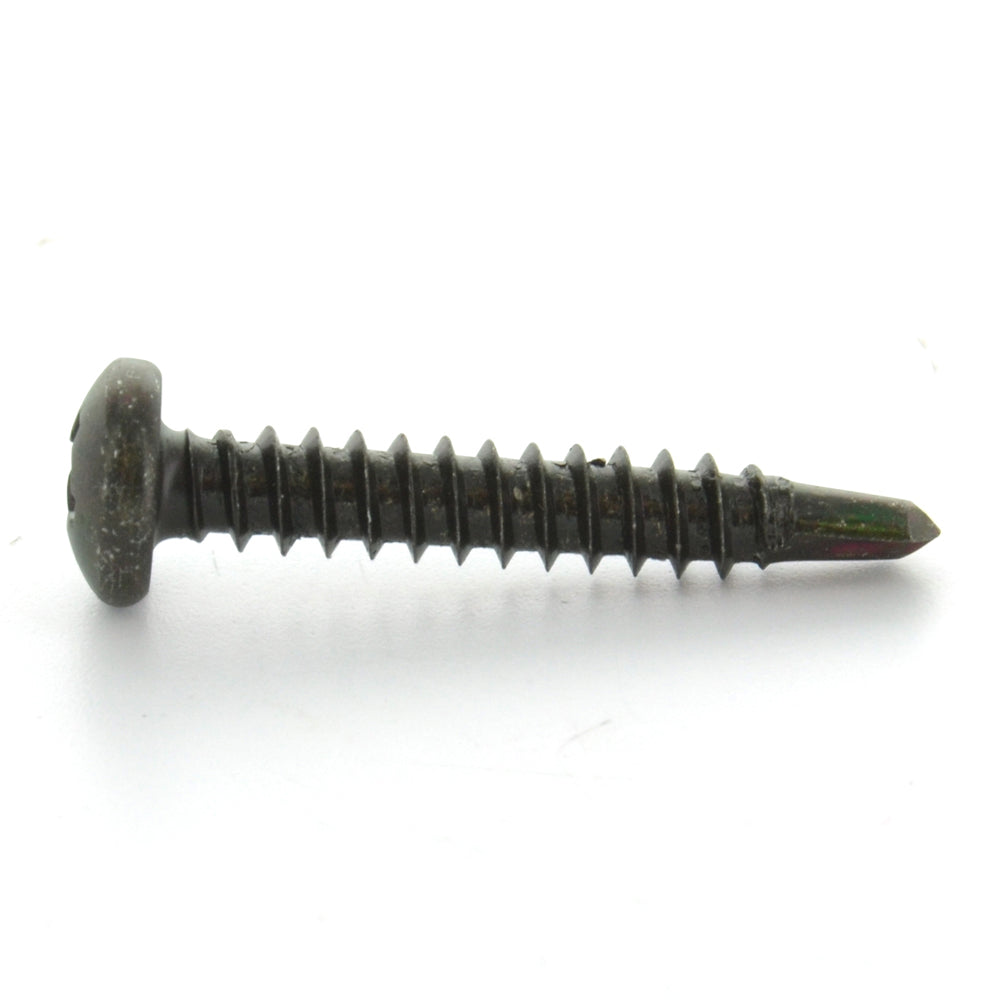

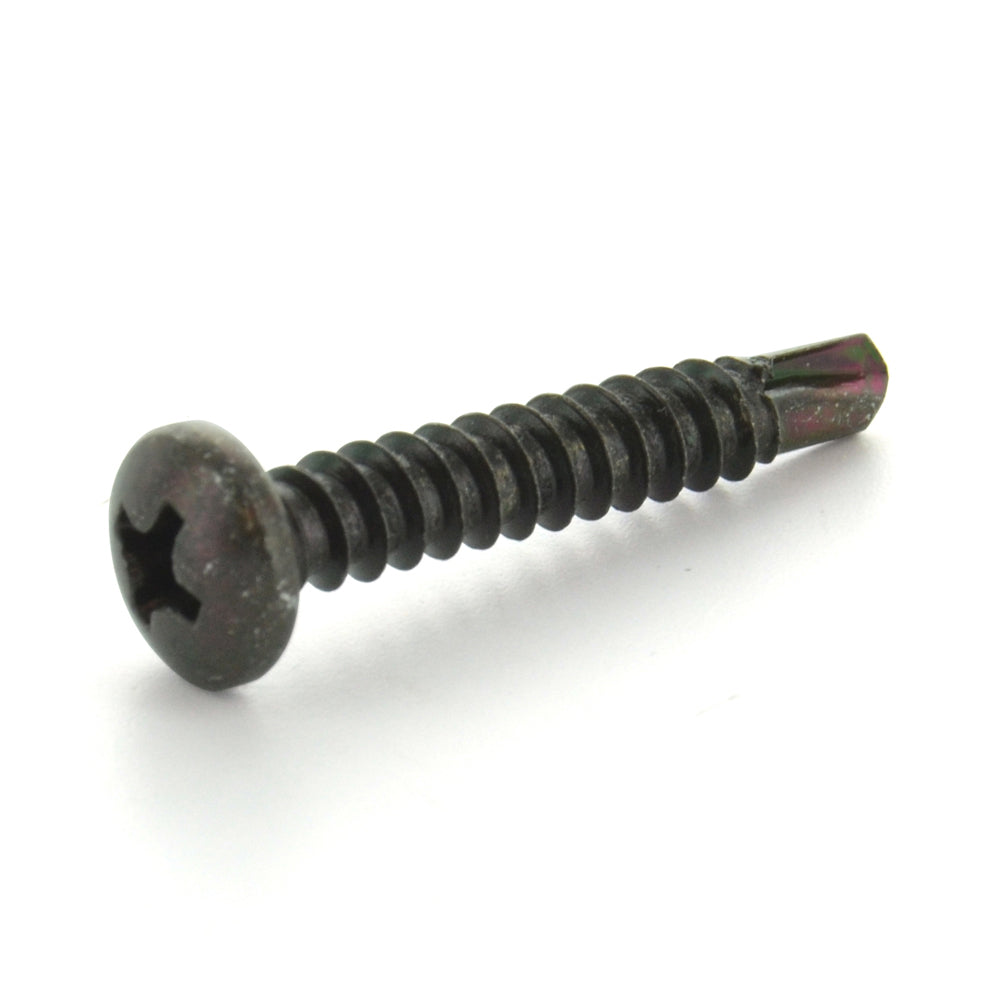

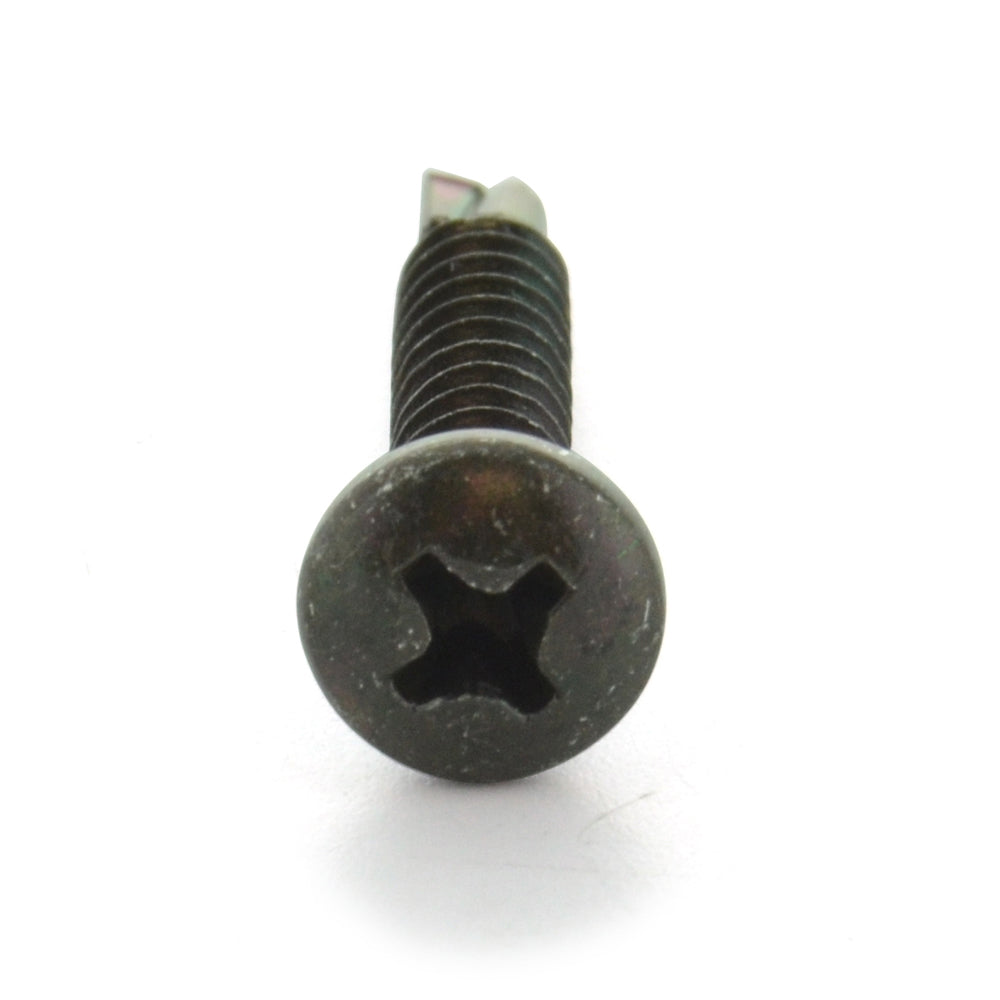

- Item: Self-Drilling TEK Screw
Specifications
General
- Finish
- Black Oxide
- Material
- Hardened Steel
- Measurement System
- Inch
- Origin
- Imported
Dimensions
- Diameter
- #8
- Length
- 1 Inch
- Head Diameter
- 0.306 – 0.322 Inch
- Head Height
- 0.085 – 0.096 Inch
- Drive Size
- #2
- Recess Penetration Gagging Depth
- 0.071 – 0.097 Inch
- Recess Diameter
- 0.175 Inch
Features
- Drive Type
- Square Socket
- Head Style
- Pan
- Point Type
- 3.2 mm
Certifications & Standards
- Standards
- ASME/ANSI B18.6.4 - SAE J78 - SAE J933
