OneSource

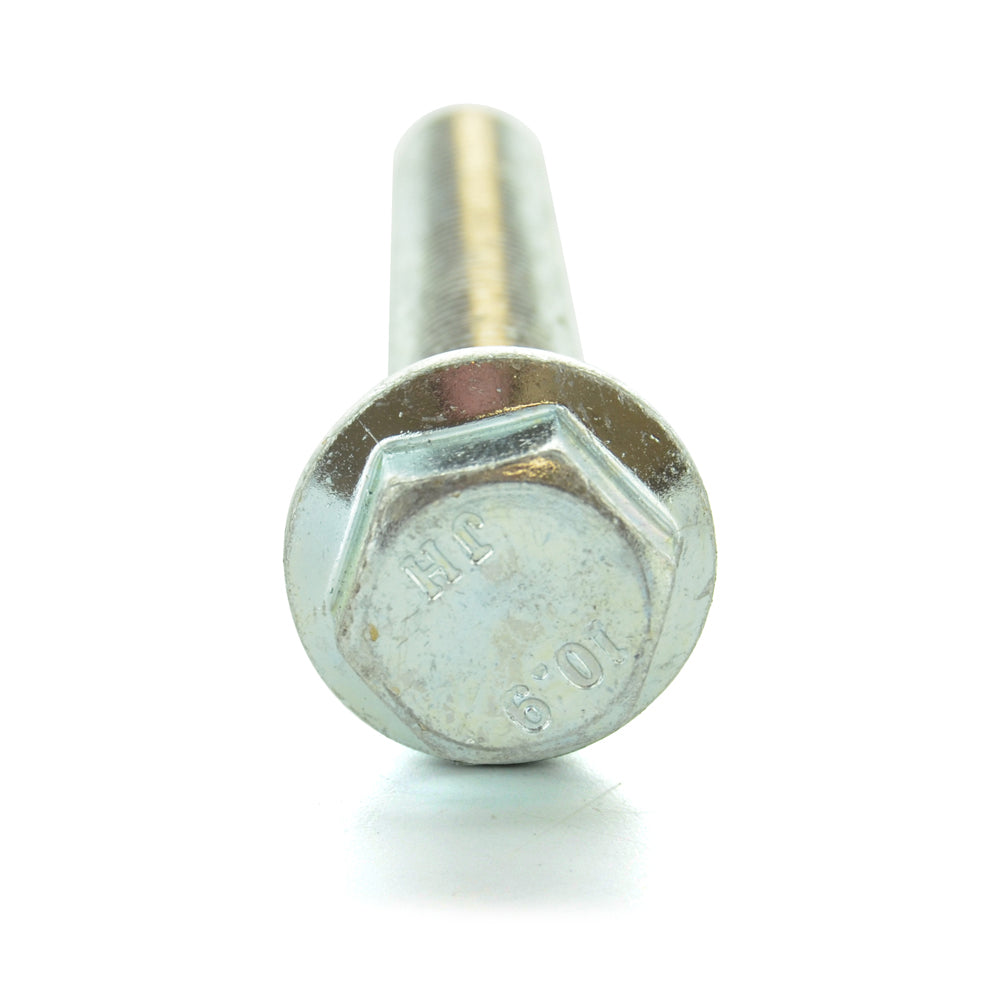

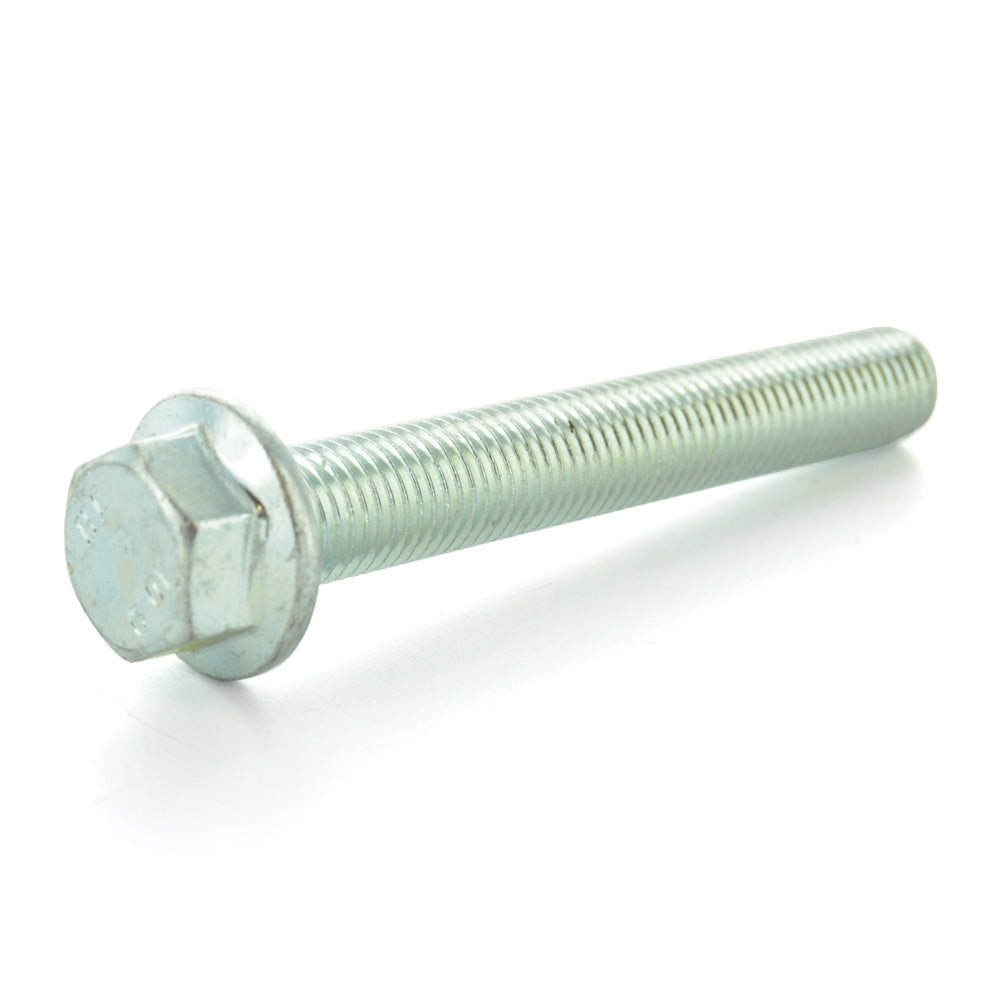

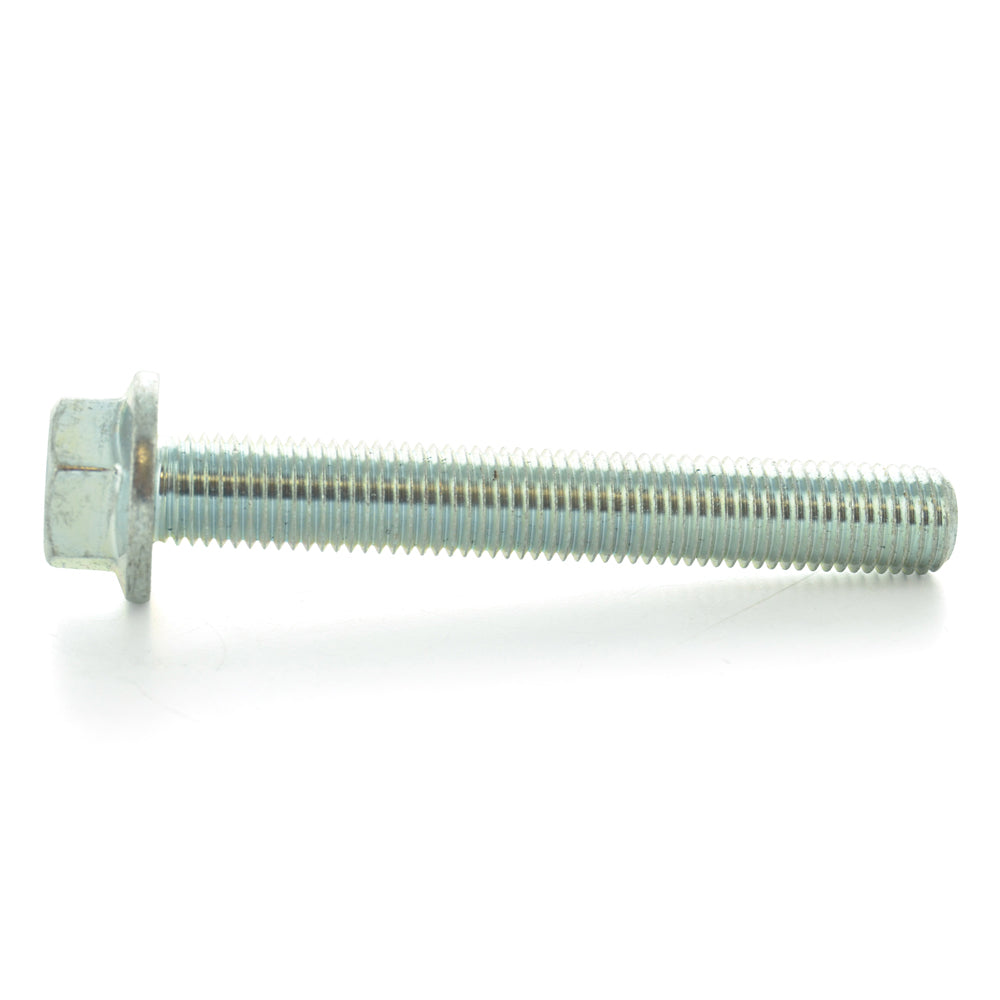

M10 x 1.25 x 50 Mm Fine Zinc Plated Class 10.9 JIS Indented Hex Head Flange Bolt

Item A61.10.50

Body Diameter: 9.85 - 10.00 mm

Regular price $2.56
Sale price $2.56 Regular price
/ Each

Delivering to

Estimated delivery: 3–7 business days

Order by 2pm CT

Please note that this product is sold in multiples of 1

Photographs are representational and may not be size accurate.

Key Specifications

Diameter M10
Length 50 mm
Thread Type Fine
Head Style Flanged Hex/Hex Washer
Finish Zinc
See all specifications

Description

Body Diameter: 9.85 - 10.00 mm

  • Origin: Imported
  • Diameter: M10
  • Finish: Zinc
  • Flange Diameter: 21 mm
  • Grade: Class 10.9
  • Head Height: 10 mm
  • Head Style: JIS Reduced Hex Flange
  • Item: Flange Bolt
  • Length: 50 mm
  • Material: Alloy Steel
  • Measurement: Metric
  • Origin: Imported
  • Specification: ISO 898-1 JIS B1189
  • Thread Length: 26 mm
  • Thread Type: Fine
  • Type: Partial Threaded
  • Width Across Corner: 15.85 mm

Specifications

General

Finish
Zinc
Measurement System
Metric
Type
Partial Threaded
Material
Alloy Steel
Origin
Imported

Dimensions

Diameter
M10
Length
50 mm
Thread Type
Fine
Thread Length
26 mm
Head Height
10 mm
Width Across Corner
15.85 mm
Body Diameter
9.85 – 10.00 mm
Flange Diameter
21 mm

Features

Head Style
Flanged Hex/Hex Washer
Grade
Class 10.9

Certifications & Standards

Standards
ISO 898-1 - JIS B1189
