Photographs are representational and may not be size accurate.
OneSource

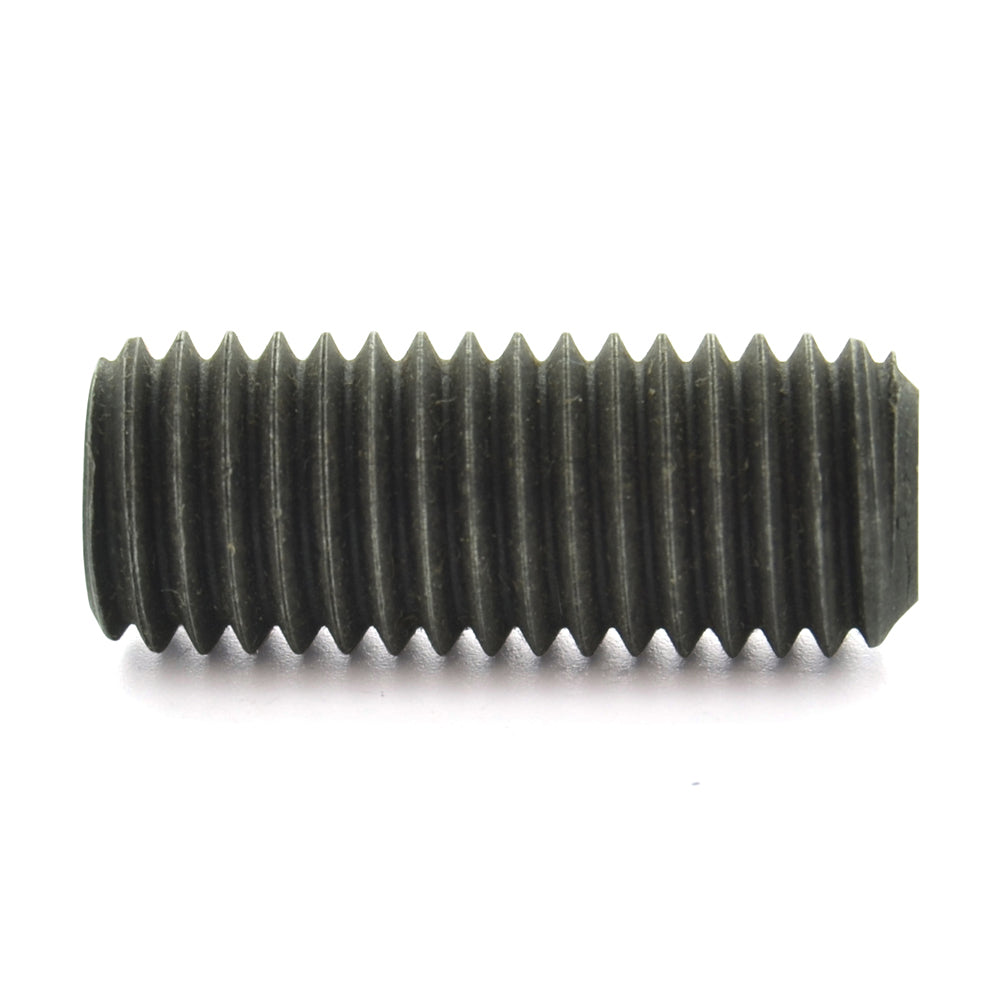

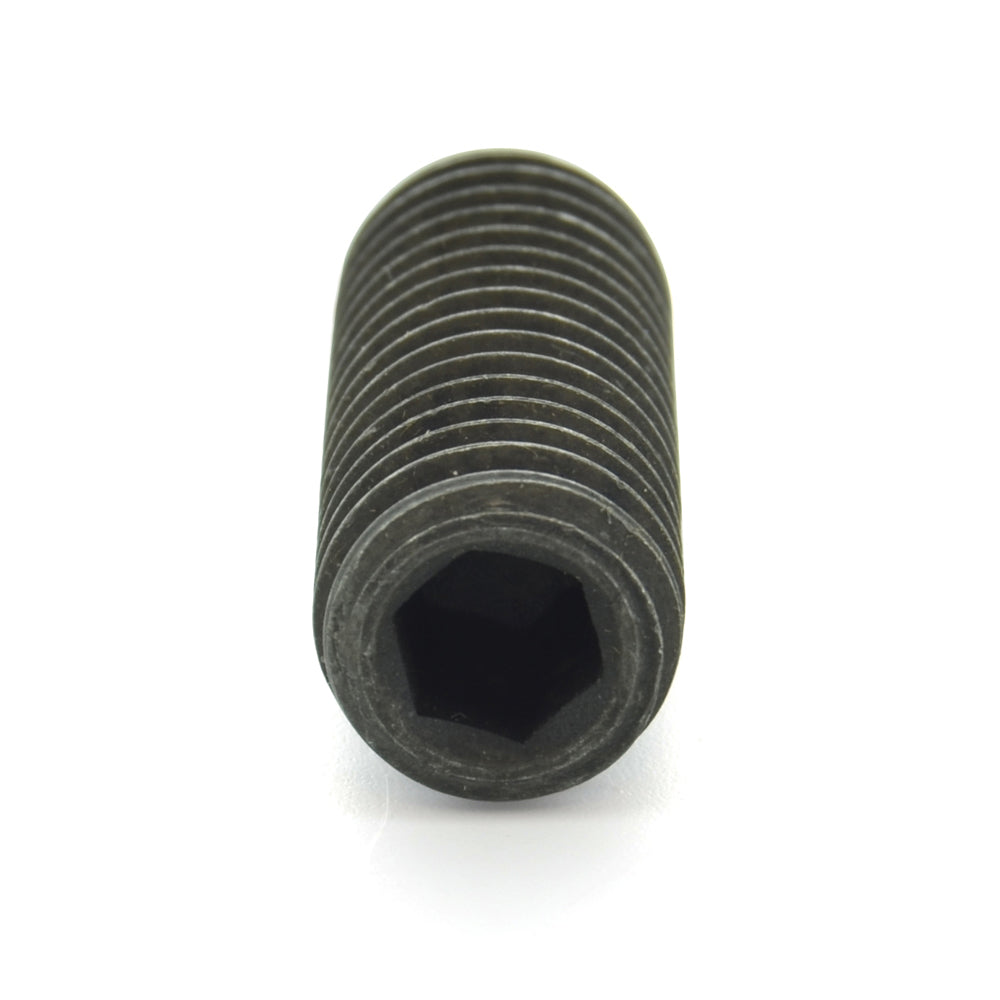

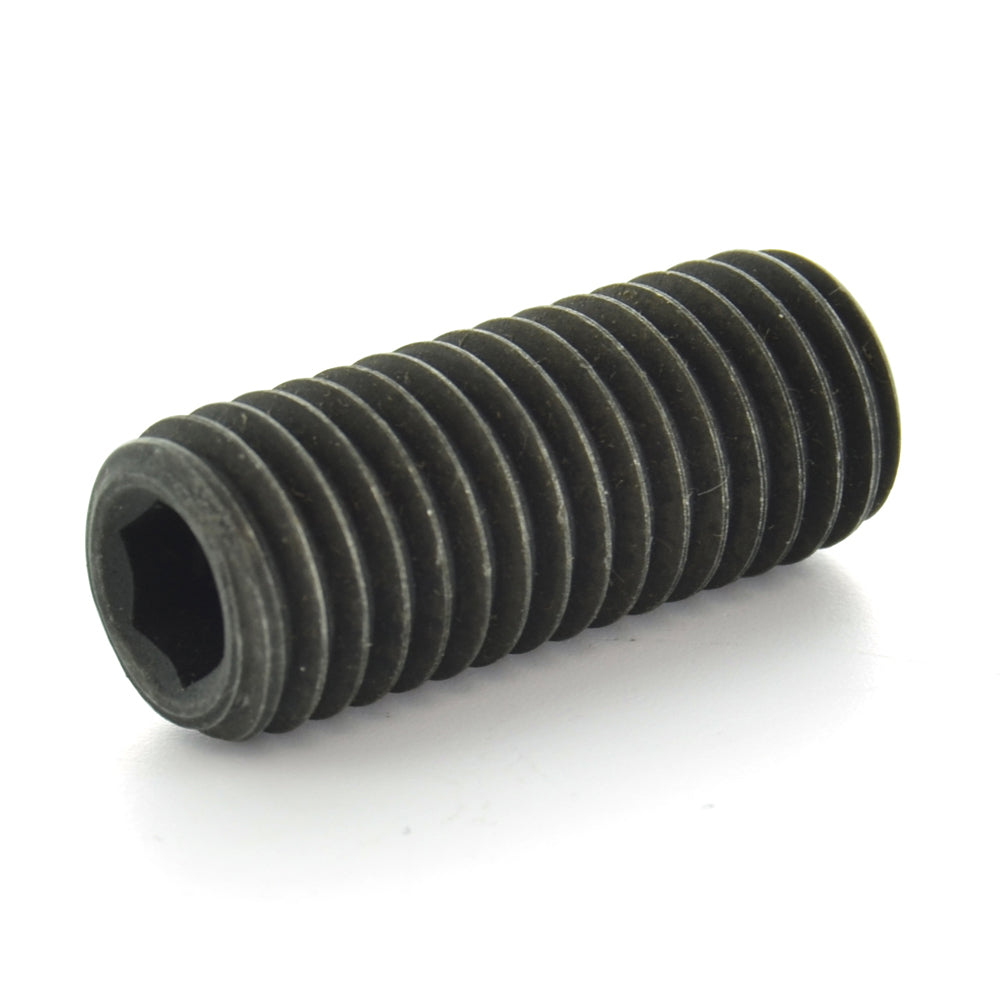

M10 x 1.5 x 35 Mm Coarse Black Oxide Alloy Steel DIN 916 Cup Point Socket Head Set Screw
Item A85.10.35
Socket set screws also known as grub screws have no head and are typically tightened or loosened with a square or hex key. A slotted set screw can be adjusted with a screwdriver. Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that grips and resists deforming the shaft surface. A flat point screw provides more contact with the shaft.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | M10 |
| Drive Type | Internal Hex |
| Finish | Black Oxide |
| Head Style | Socket |
| Length | 35 mm |
| Measurement | Metric |
| Origin | IMPORT |
| Thread Type | Coarse |
Description
Description
Socket set screws also known as grub screws have no head and are typically tightened or loosened with a square or hex key. A slotted set screw can be adjusted with a screwdriver. Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that grips and resists deforming the shaft surface. A flat point screw provides more contact with the shaft.
- Origin: Imported
- A headless screw threaded the entire length
- Length is measured as overall length including the tip
- Has a hexagonal drive at one end and a cup point shaped indention at the other end
- The most used style set screw used for permanent location of one part to another
- Often used as adjusting screws and can be used to replace dowel pins
- Drive Size: 5 mm
- Drive Type: Internal Hex
- Finish: Black Oxide
- Grade: Class 10.9
- Head Style: Socket
- Industry Standard: DIN 916
- Item: Set Screw
- Key Engagement: 4 mm
- Length: 35 mm
- Material: Alloy Steel
- Measurement: Metric
- Origin: Imported
- Point Diameter: 5.70 - 6.00 mm
- Point Type: Cup
- Specification: DIN 916 ISO 898-1
- Tensile Strength : 150800 psi
- Thread Type: Coarse
- Type: Full Threaded
- Width Across Corner: 5.723 mm
