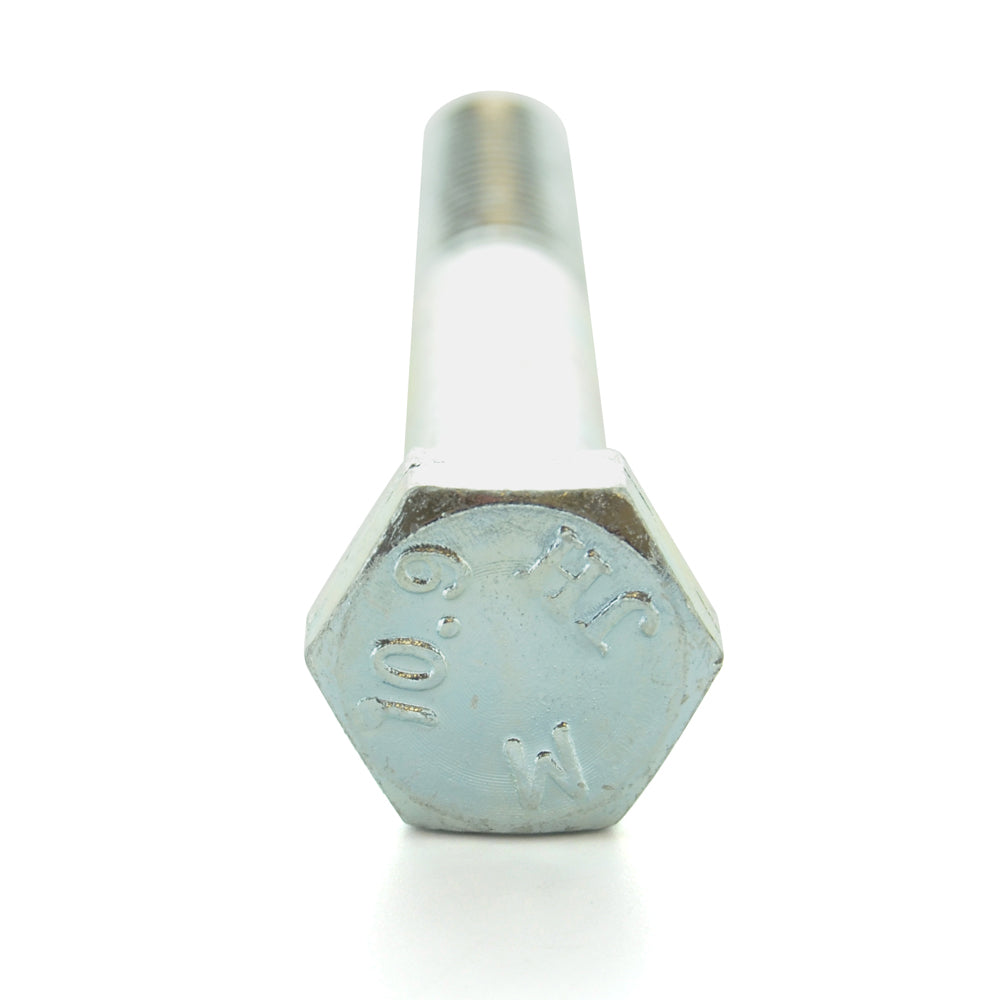

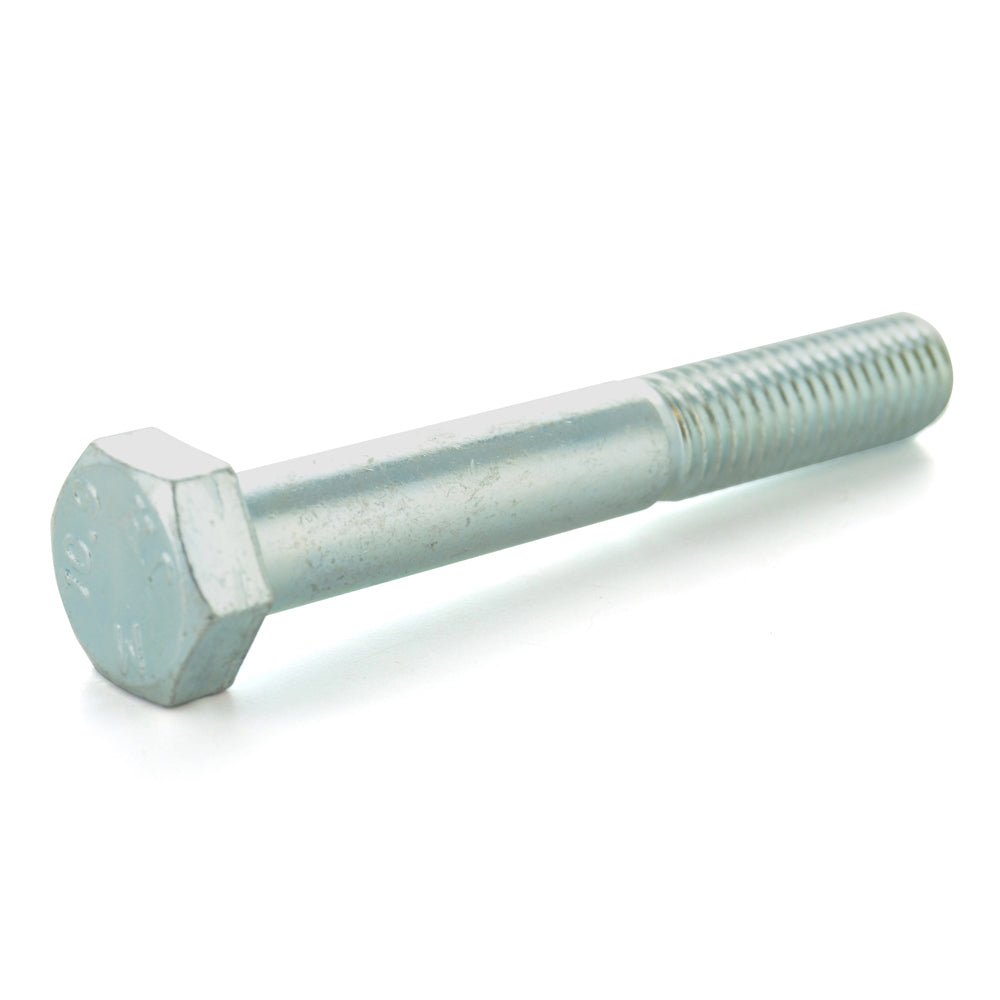

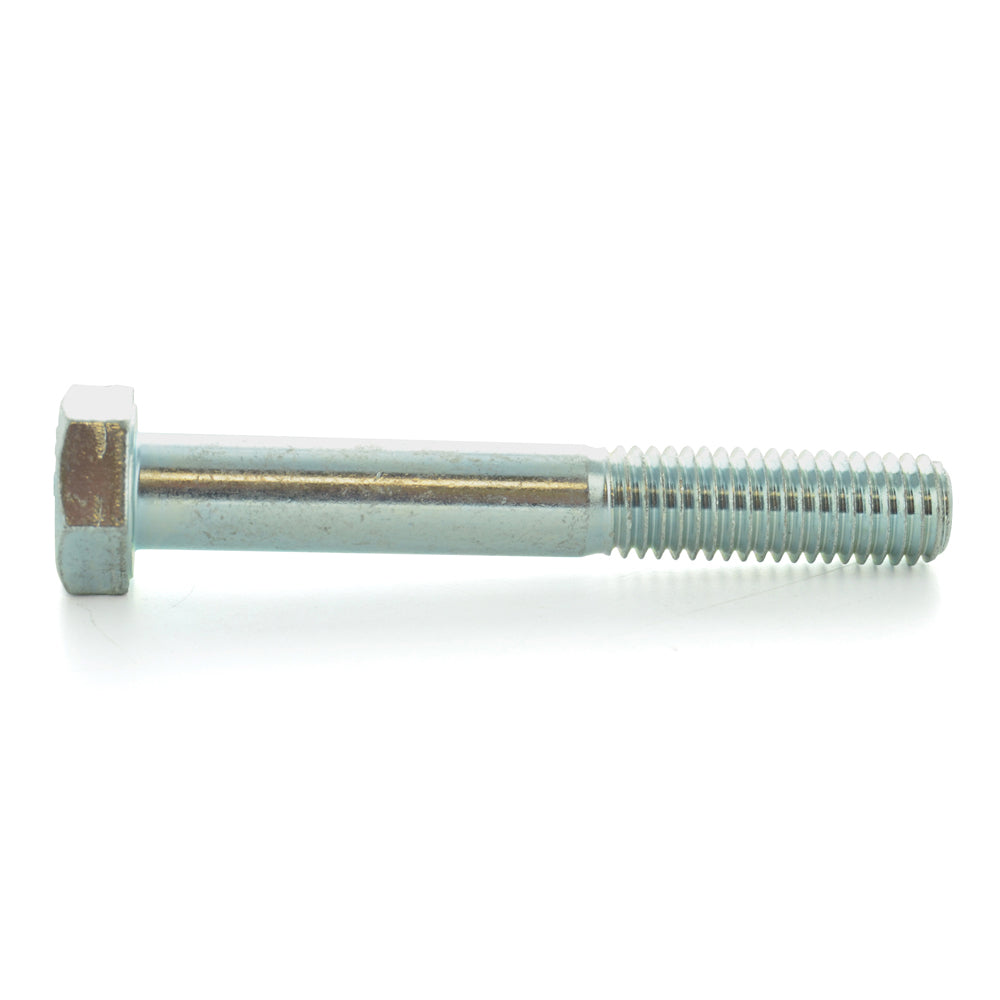

M12 x 1.75 x 45 Mm Coarse Class 10.9 Zinc Plated Steel Hex Head Cap Screw

Item A64.12.45

$0.83
$0.83
/ Each

Please note that this product is sold in multiples of 1
Ships in 1 day
Free shipping

Free Shipping On All Orders Over $15

We Stand Behind Our Products

with our 100% quality assurance guarantee.

Description

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

  • Origin: Imported
  • Diameter Thread Size: M12 x 1.75
  • Finish: Zinc
  • Grade: Class 10.9
  • Head Height Max: 7.76 mm Height
  • Head Style: 0.019 Inch
  • Head Type: Hex
  • Item: Cap Screw
  • Length: 45 mm
  • Material: Steel
  • Measurement: Metric
  • Origin: Imported
  • Proof Load: 120350 psi
  • Specification: ANSI B18.2.3.1M
  • Tensile Strength : 145000 psi
  • Thread Length: 30 mm
  • Thread Type: Coarse
  • Type: Partial Threaded
  • Width Across Corner: 20.78 mm
