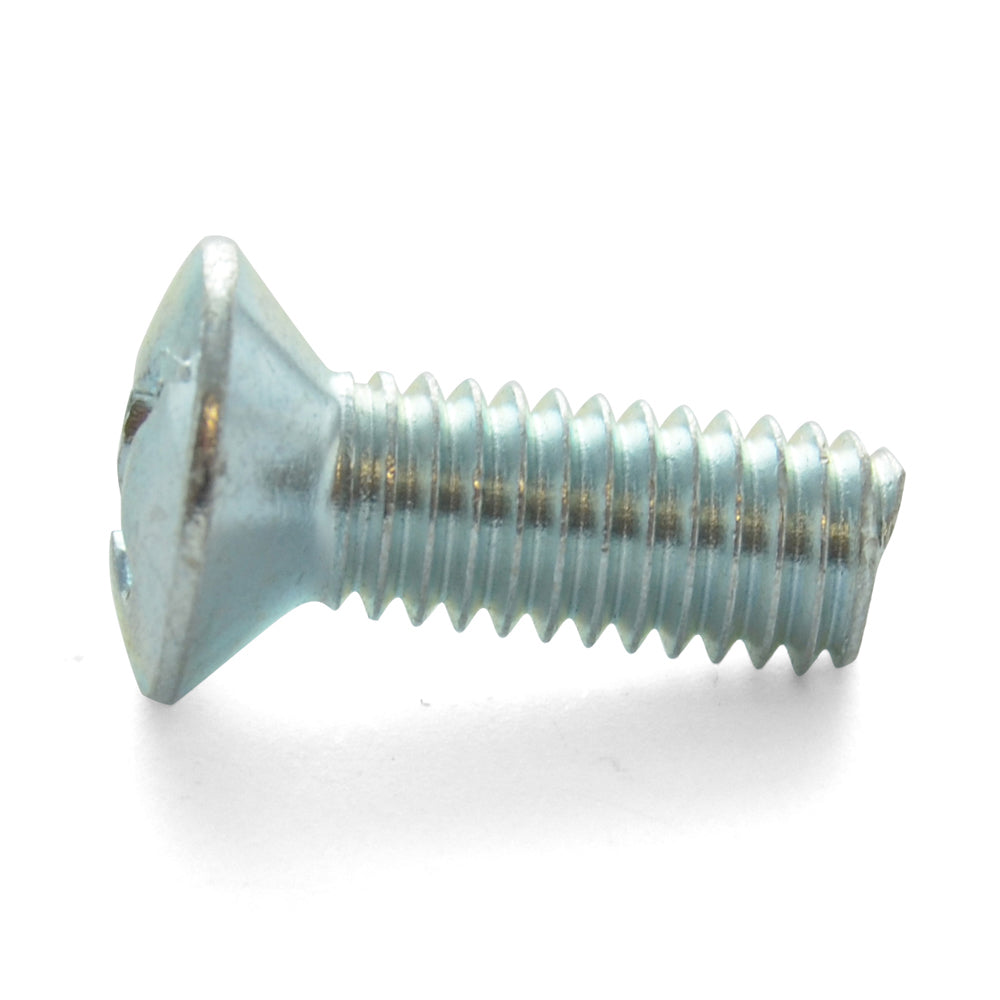

M3 x 0.5 x 16 Mm Coarse Class 4.8 Zinc Plated Steel Phillips Drive Oval Countersunk Head Machine Screw
Item A49.3.16
These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Length | 16 mm |
| Thread Type | Coarse |
| Head Style | Oval |
| Drive Type | Phillips |
| Finish | Zinc |
Description
Description
These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.
- Hardness: HRB 71 - 99.5
- Drive Type: Phillips
- Finish: Zinc
- Grade: Class 4.8
- Head Diameter: 5.3 - 5.6 mm
- Head Height: 1.65 mm
- Head Type: Oval Countersunk
- Industry Standard: DIN 966
- Item: 0.032 Inch
- Length: 16 mm
- Material: Steel
- Measurement: Metric
- Origin: Imported
- Recess Diameter: 1 mm
- Recess Penetration Gagging Depth: 1.70 - 2.00 mm
- Specification: DIN 966
- Tensile Strength : 60900 psi
- Thread Length: 16 mm
- Thread Type: Coarse
- Type: Full Threaded
- Yield Strength: 49300 Psi
Specifications
General
- Finish
- Zinc
- Measurement System
- Metric
Dimensions
- Length
- 16 mm
- Thread Type
- Coarse
Features
- Drive Type
- Phillips
- Head Style
- Oval
