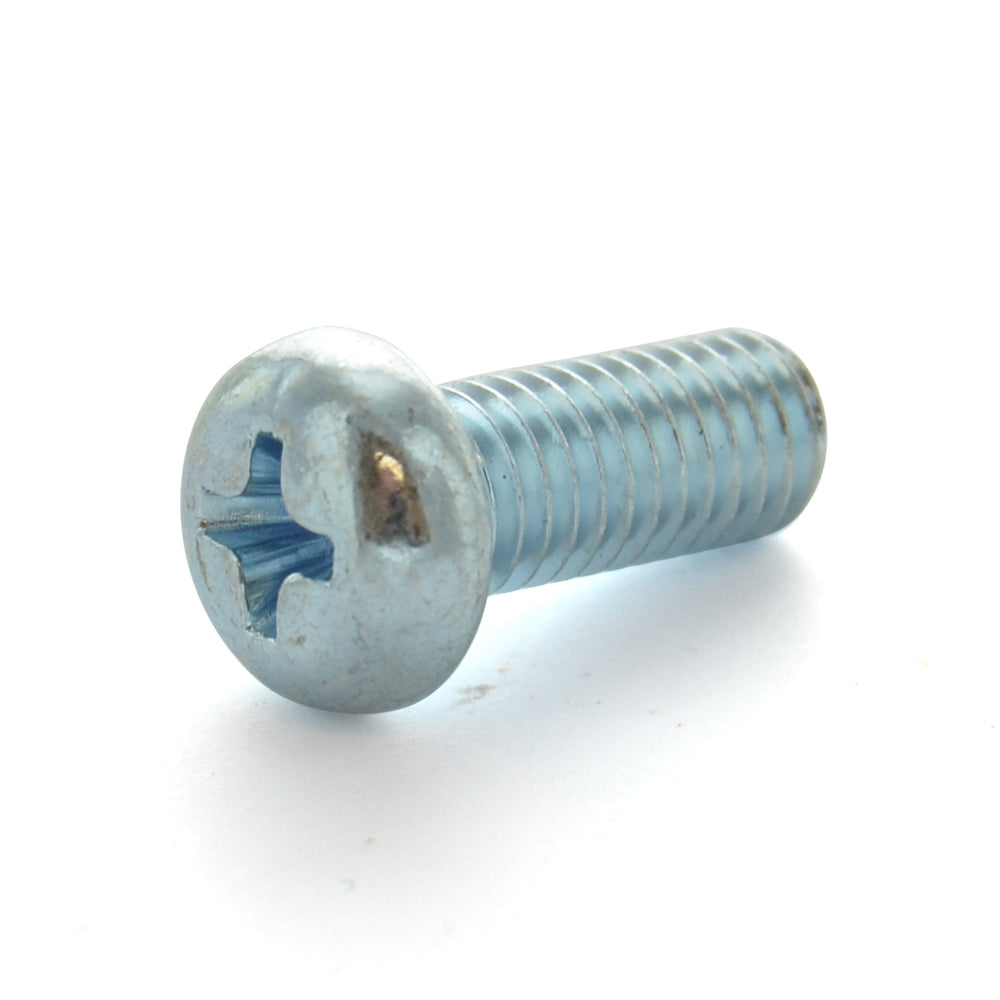

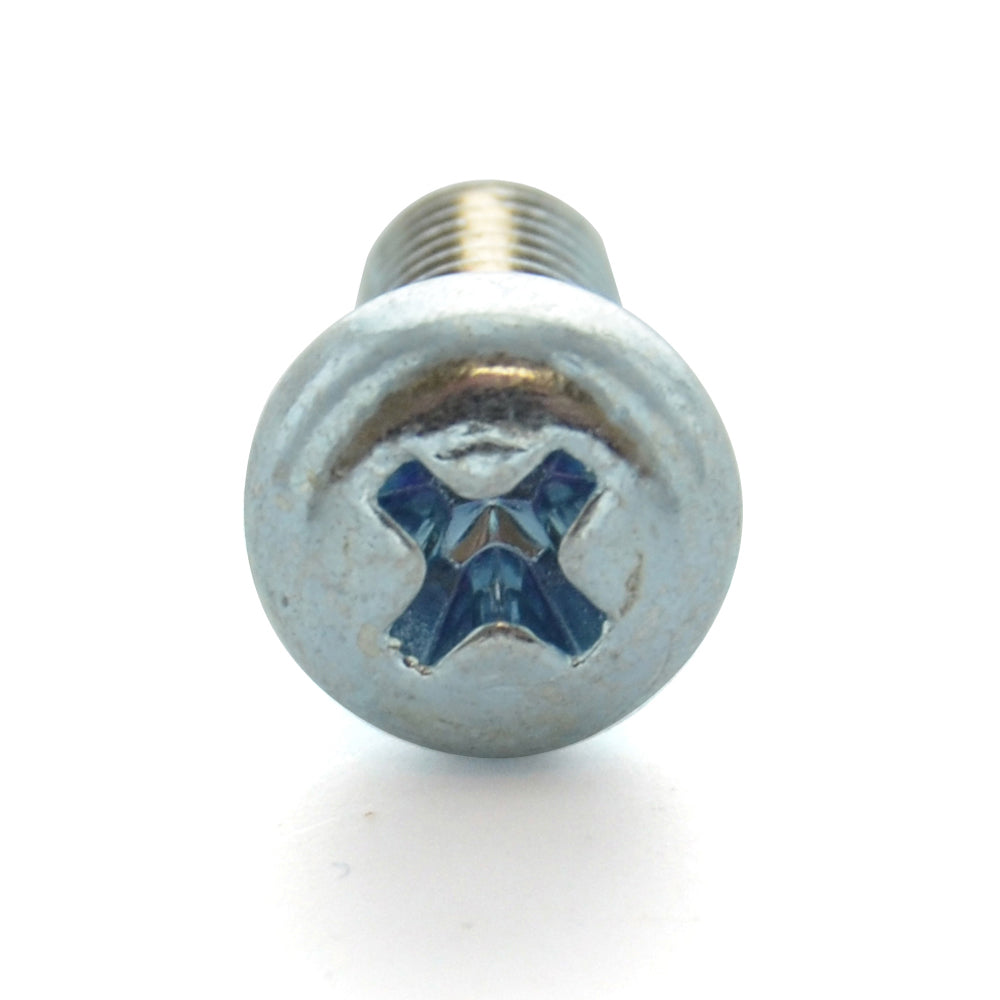

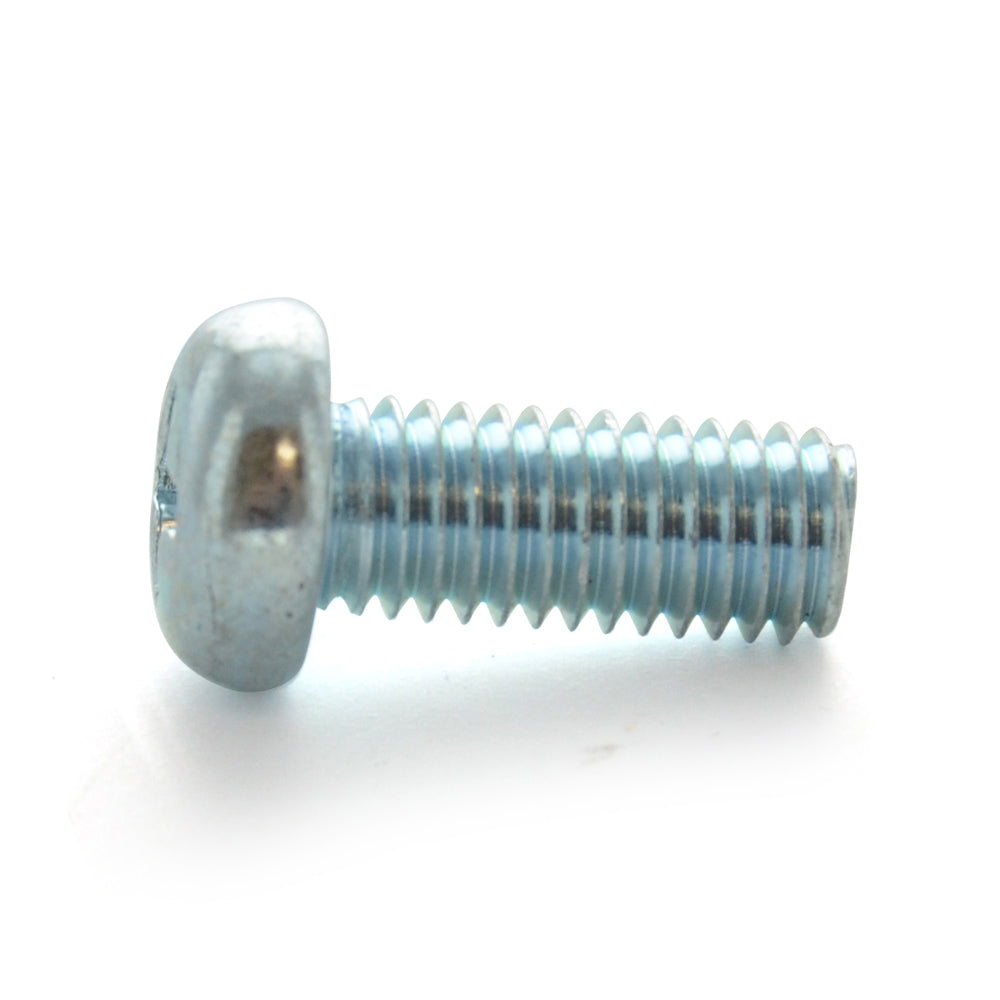

M4 x 0.7 x 60 Mm Coarse Class 4.8 Zinc Plated Steel Phillips Drive Pan Head Reduced Machine Screw
Item A47.4.60
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.
- Hardness: HRB 71 - 99.5
- Drive Type: Phillips
- Finish: Zinc
- Grade: Class 4.8
- Head Diameter: 6.5 - 7 mm
- Head Height: 2.45 - 2.75 mm
- Head Type: Pan
- Industry Standard: JIS B-1111
- Item: Reduced Machine Screw
- Length: 60 mm
- Material: Steel
- Measurement: Metric
- Origin: Imported
- Recess Diameter: 2 mm
- Recess Penetration Gagging Depth: 1.45 - 2.03 mm
- Specification: JIS B-1111
- Tensile Strength : 60900 psi
- Thread Length: 60 mm
- Thread Type: Coarse
- Type: Full Threaded
- Yield Strength: 49300 Psi
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | M4 |
| Drive Type | Phillips |
| Finish | Zinc |
| Head Style | Pan |
| Length | 60 mm |
| Measurement | Metric |
| Thread Type | Coarse |
