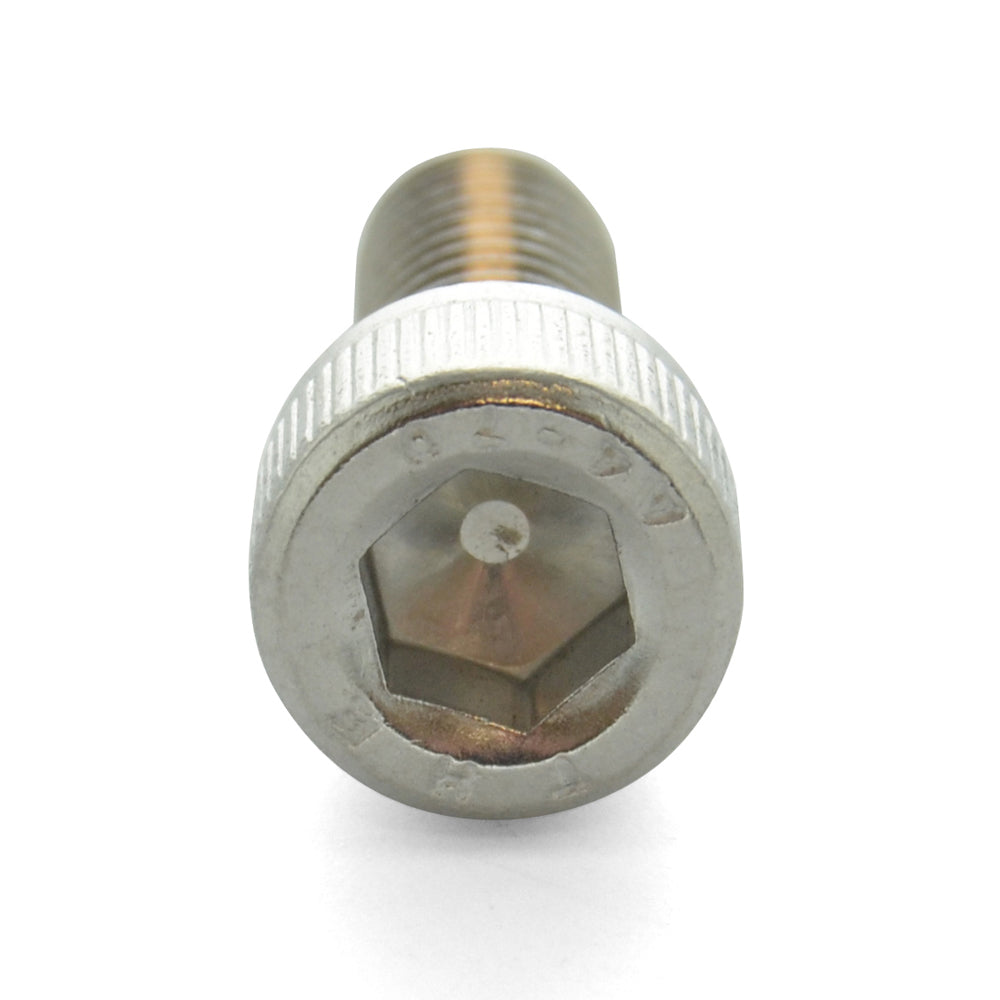

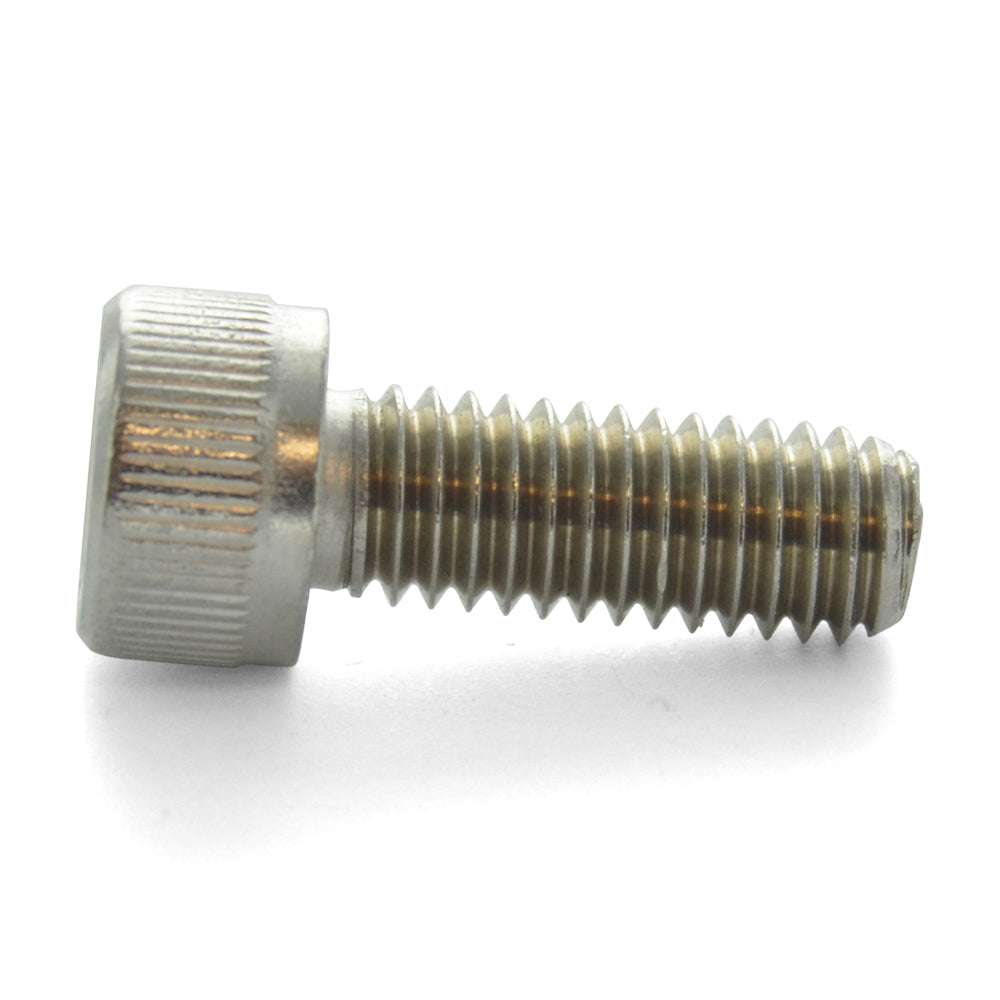

M5 x 0.8 x 20 Mm Coarse Plain 316 (A4) Stainless Steel Socket Head Cap Screw
Item A50.5.20
Socket head cap screws are bolts (cap screws) with a hexagonal recessed drive
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | M5 |
| Length | 20 mm |
| Thread Type | Coarse |
| Head Style | Socket |
| Drive Type | Internal Hex |
| Material | A4 Stainless Steel |
Description
Description
Diameter: M5
- Origin: Imported
- Socket head cap screws are bolts (cap screws) with a hexagonal recessed drive
- Also know as Allen bolts they are driven with a hex key or Allen wrench
- Socket cap screws are popular in tight spaces where an Allen wrench would fit when another type of drive may not
- Commonly used in machinery and assemblies
- Drive Type: Internal Hex
- Finish: Plain
- Grade: A4
- Head Diameter: 8.28 - 8.72 mm
- Head Diameter Max: 8.72mm
- Head Height: 4.82 - 5.00 mm
- Head Height Max: 5.00mm
- Head Style: Socket
- Industry Standard: DIN 912
- Item: Socket Cap Screw
- Key Size: 4 mm
- Length: 20 mm
- Material: A4 Stainless Steel
- Measurement: Metric
- Origin: Imported
- Specification: DIN 912
- Tensile Strength : 101500 psi
- Thread Length: 20 mm
- Thread Type: Coarse
- Type: Full Threaded
Specifications
General
- Finish
- Plain
- Material
- A4 Stainless Steel
- Measurement System
- Metric
Dimensions
- Diameter
- M5
- Length
- 20 mm
- Thread Type
- Coarse
Features
- Drive Type
- Internal Hex
- Head Style
- Socket
