Photographs are representational and may not be size accurate.
OneSource

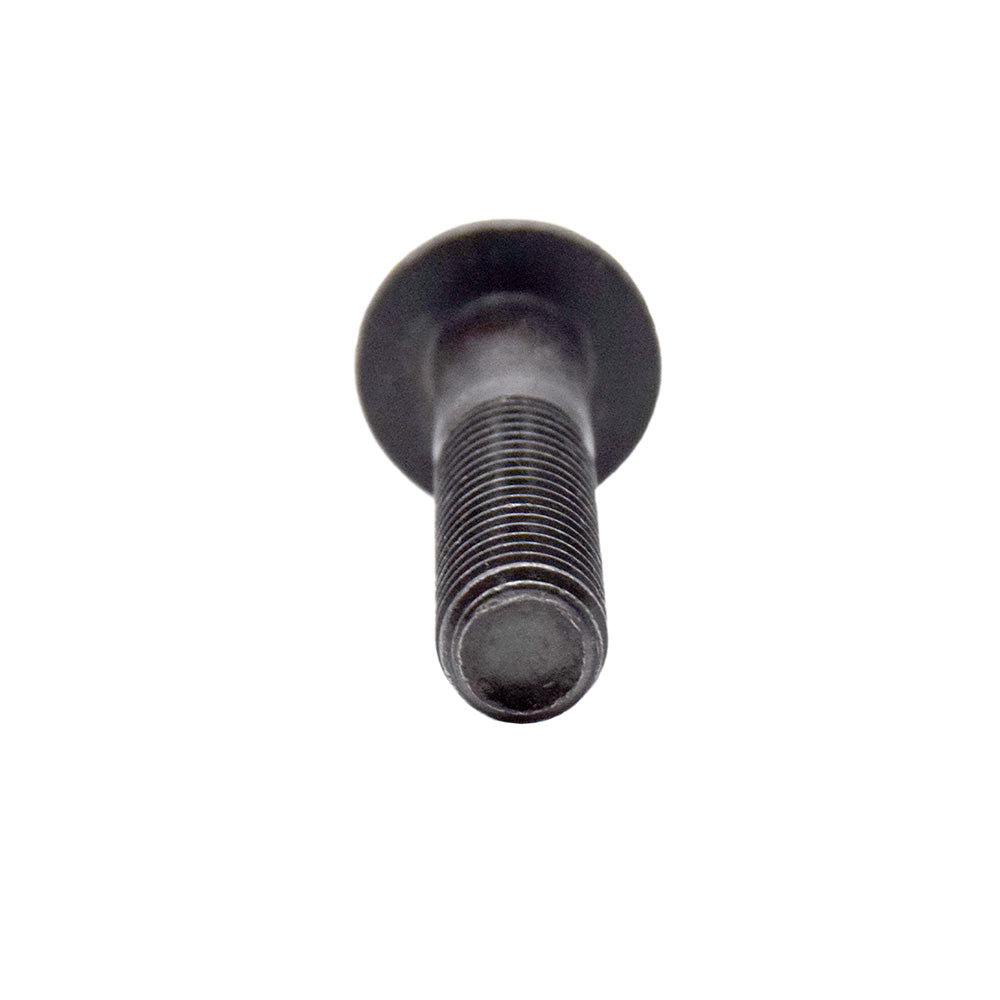

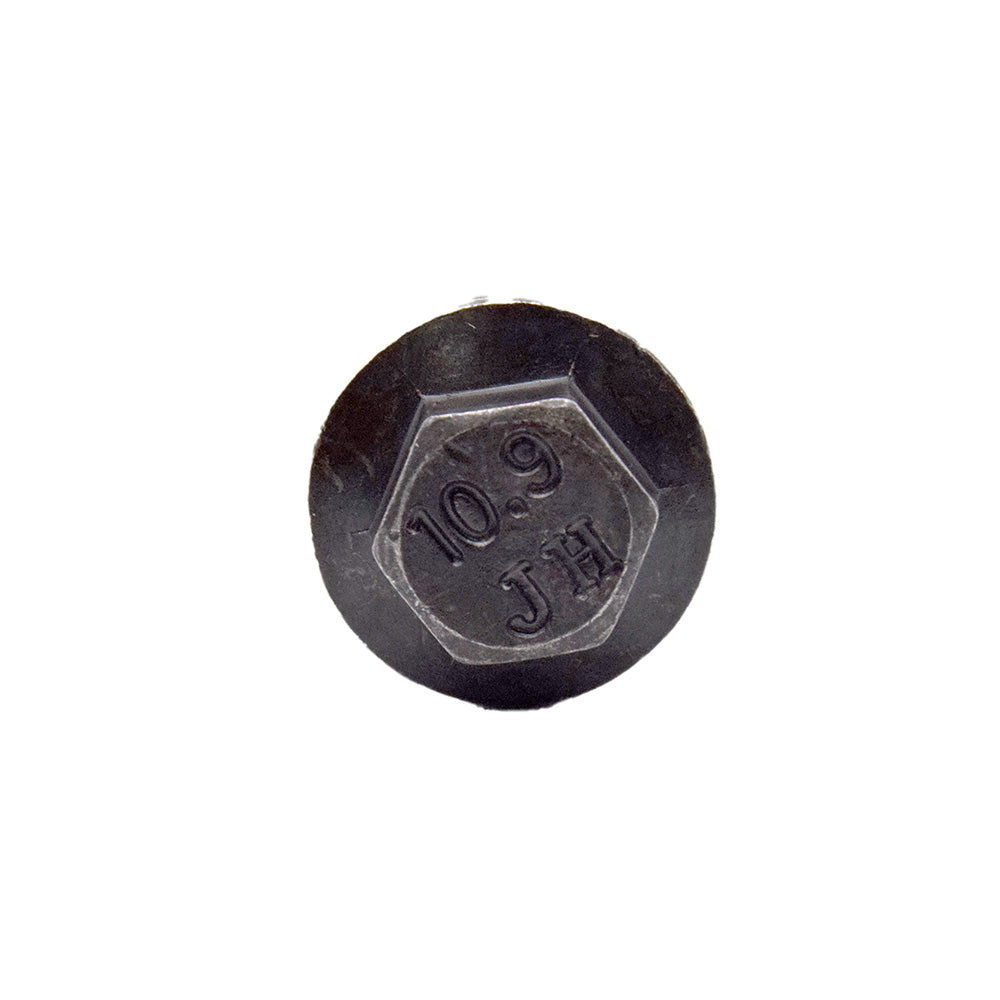

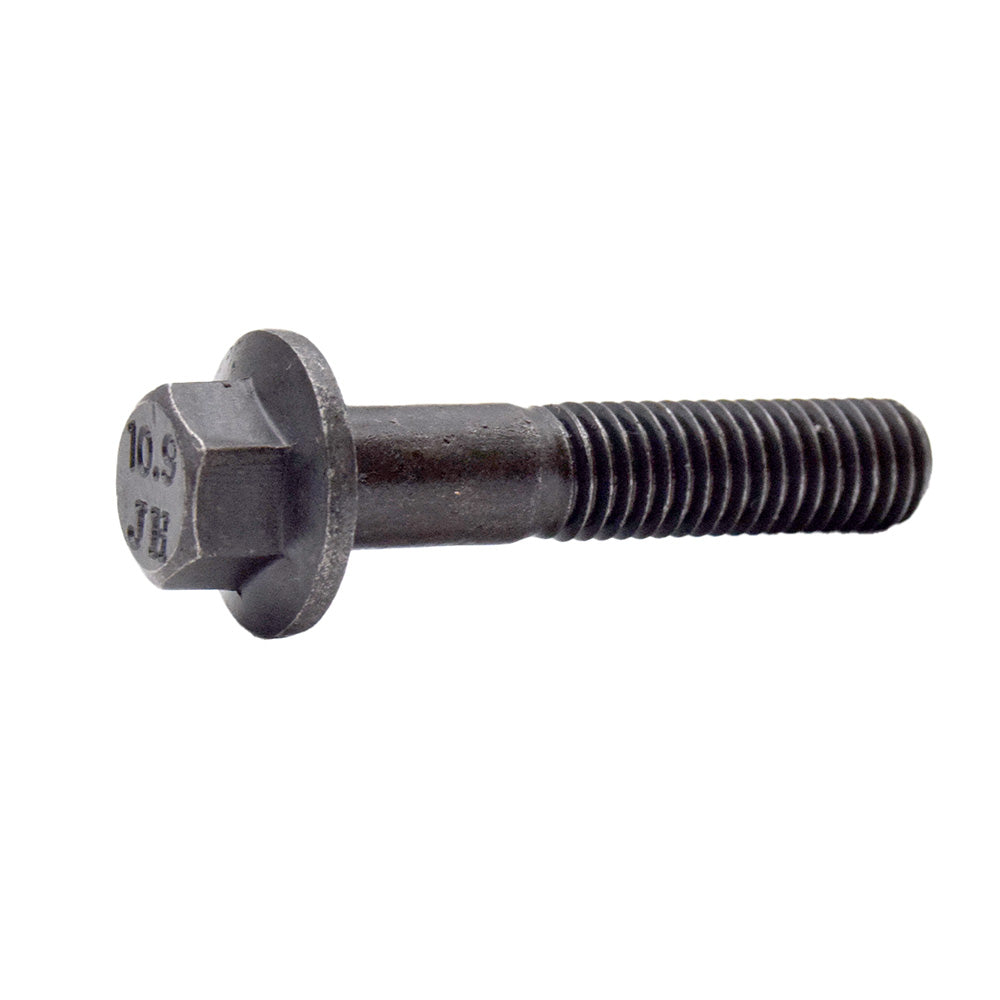

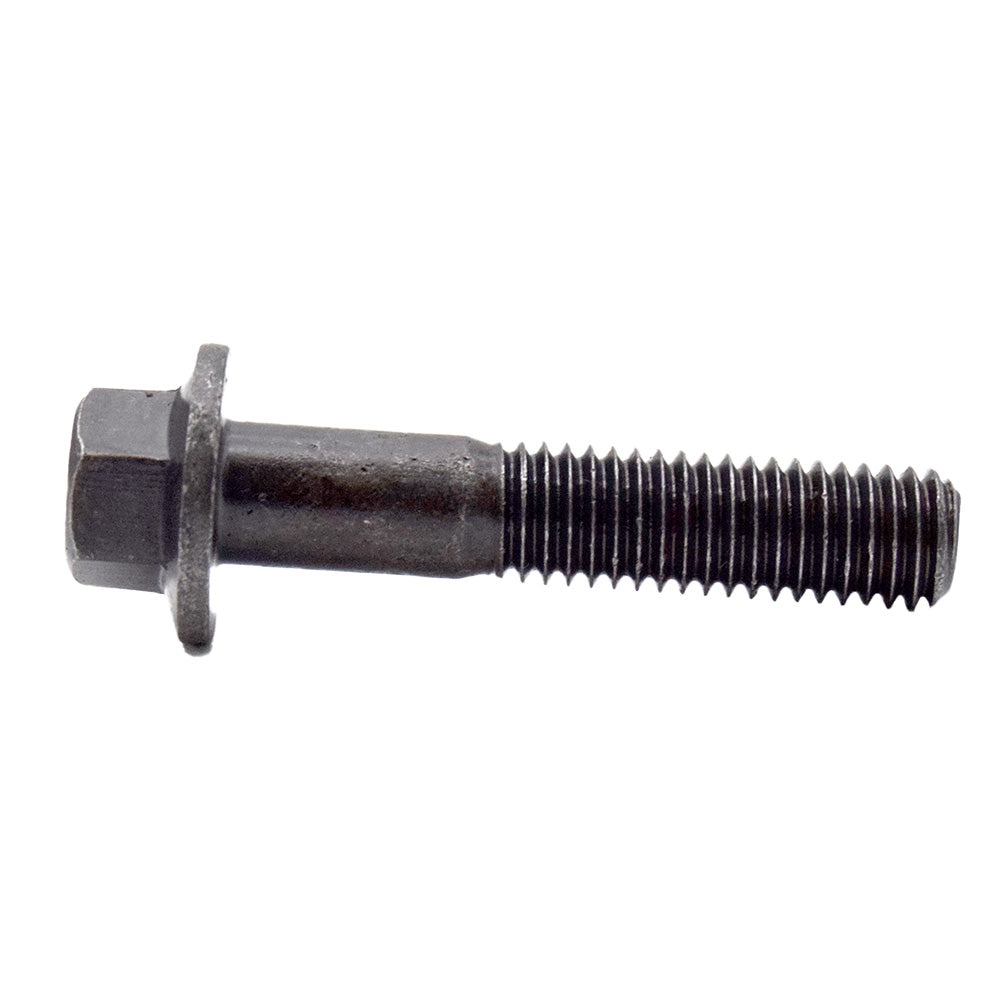

M6 x 1.0 x 16Mm Reduced Head Hex Flange Screw Non Serrated Frame Bolts Plain Grade 10.9
Item C74.9.536.6.16
Frame Bolts are hex washer head bolts with a smooth flat washer bearing surface. They are made from high-alloy steel and commonly used on truck frames and that is where they get their name. The flange eliminates the need for washers.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Documents
Documents
Photographs are representational and may not be size accurate.
Key Specifications
| Thread Size | M6-1 |
| Diameter | 6 mm |
| Length | 16 mm |
| Head Style | Flanged Hex/Hex Washer |
| Finish | Plain |
| Grade | Class 10.9 |
Description
Description
Frame Bolts are hex washer head bolts with a smooth flat washer bearing surface. They are made from high-alloy steel and commonly used on truck frames and that is where they get their name. The flange eliminates the need for washers.
- Diameter M6
- Thread Pitch 1.00
- Length 16mm
- Head Height 6.8mm
- Flange Diameter 13.6mm
- WAF 8mm
- Full Thread
Specifications
General
- Finish
- Plain
- Measurement System
- Metric
Dimensions
- Diameter
- 6 mm
- Length
- 16 mm
- Thread Size
- M6-1
Features
- Flange
- Non-Serrated
- Grade
- Class 10.9
- Head Style
- Flanged Hex/Hex Washer
