OneSource

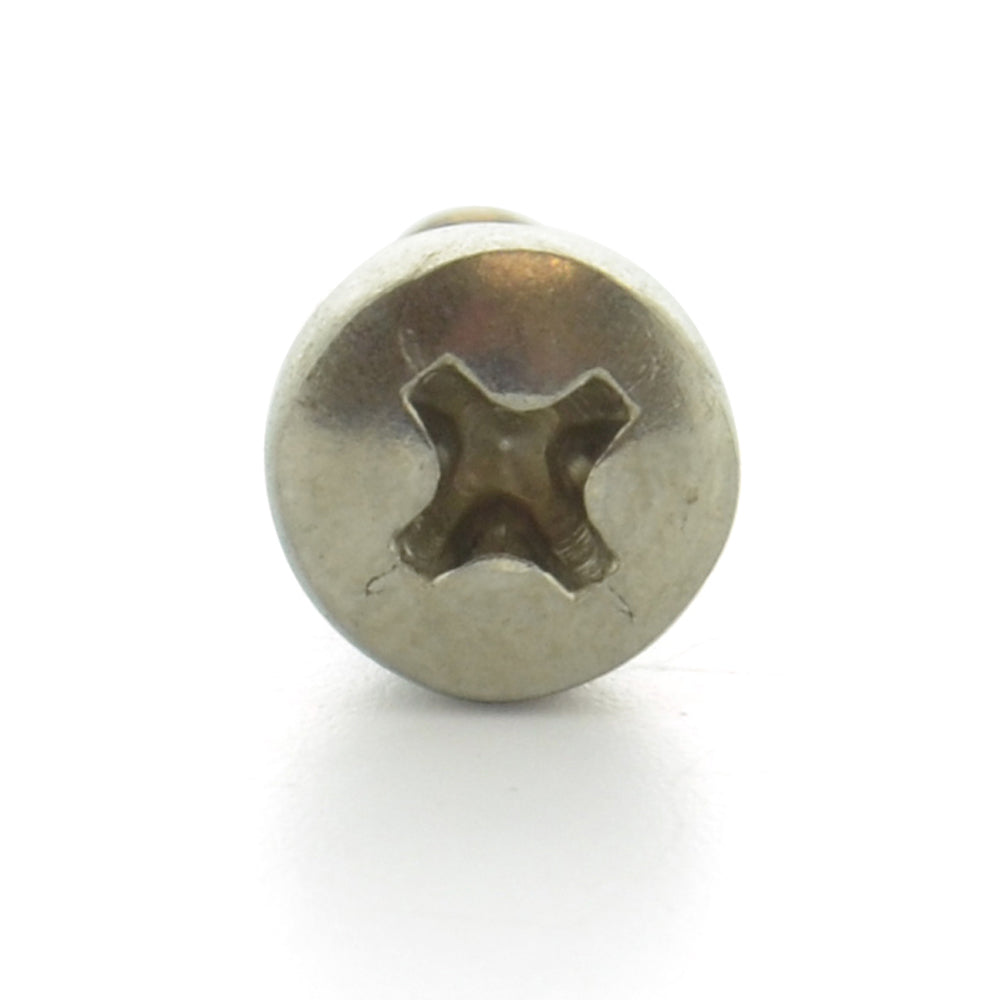

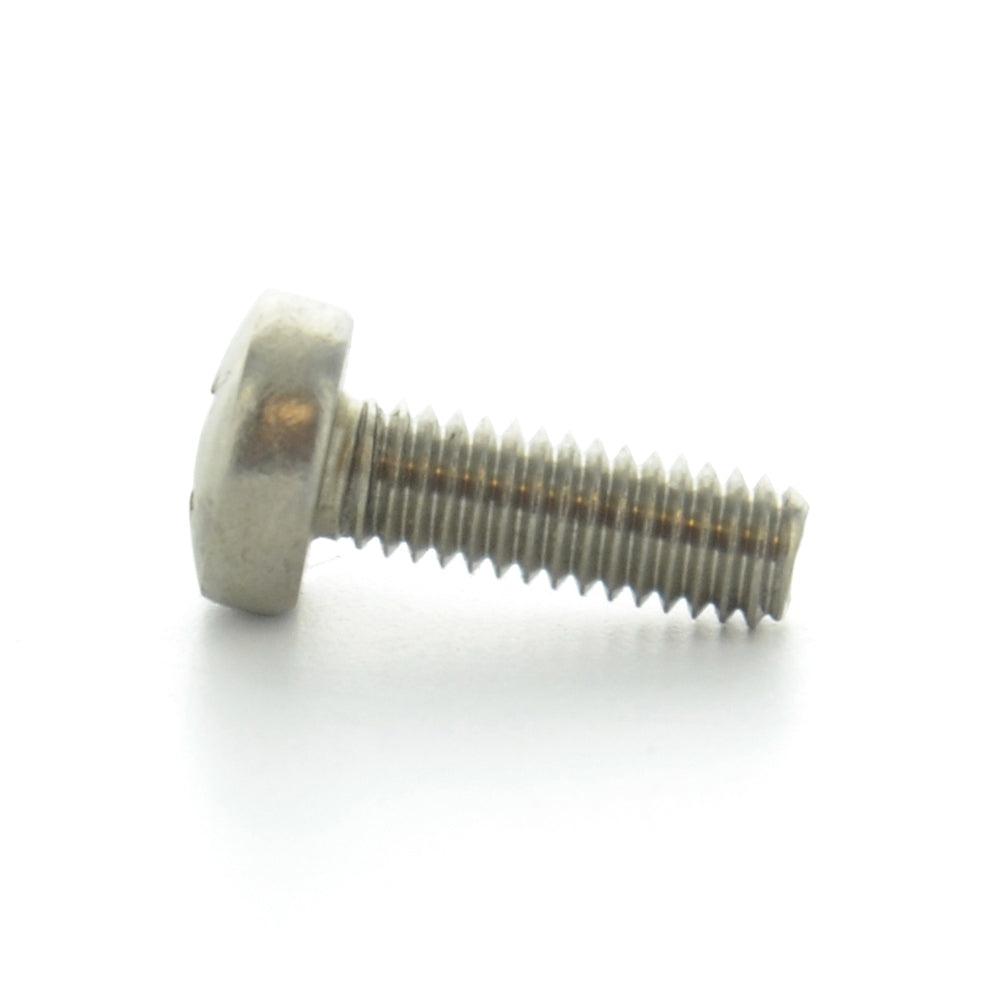

M6 x 1 x 18 Mm Coarse Plain 18-8 (A2) Stainless Steel Phillips Drive Pan Head Machine Screw

Item A54.6.18

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

Regular price $0.80
Sale price $0.80 Regular price
/ Each

Delivering to

Estimated delivery: 3–7 business days

Order by 2pm CT

Please note that this product is sold in multiples of 1

Photographs are representational and may not be size accurate.

Key Specifications

Diameter M6
Length 18 mm
Thread Type Coarse
Head Style Pan
Drive Type Phillips
Finish Plain
See all specifications

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Item: 0.032 Inch

Specifications

General

Finish
Plain
Measurement System
Metric
Type
Full Threaded
Material
Stainless Steel 18-8 (A2)
Origin
Imported

Dimensions

Diameter
M6
Length
18 mm
Thread Type
Coarse
Thread Length
18 mm
Head Diameter
11.57 – 12 mm
Head Height
4.45 – 4.75 mm
Recess Penetration Gagging Depth
3.03 – 3.53 mm
Recess Diameter
3 mm

Features

Drive Type
Phillips
Head Style
Pan
Tensile Strength
72,500 psi
Yield Strength
30,450 Psi

Certifications & Standards

Standards
DIN 7985
