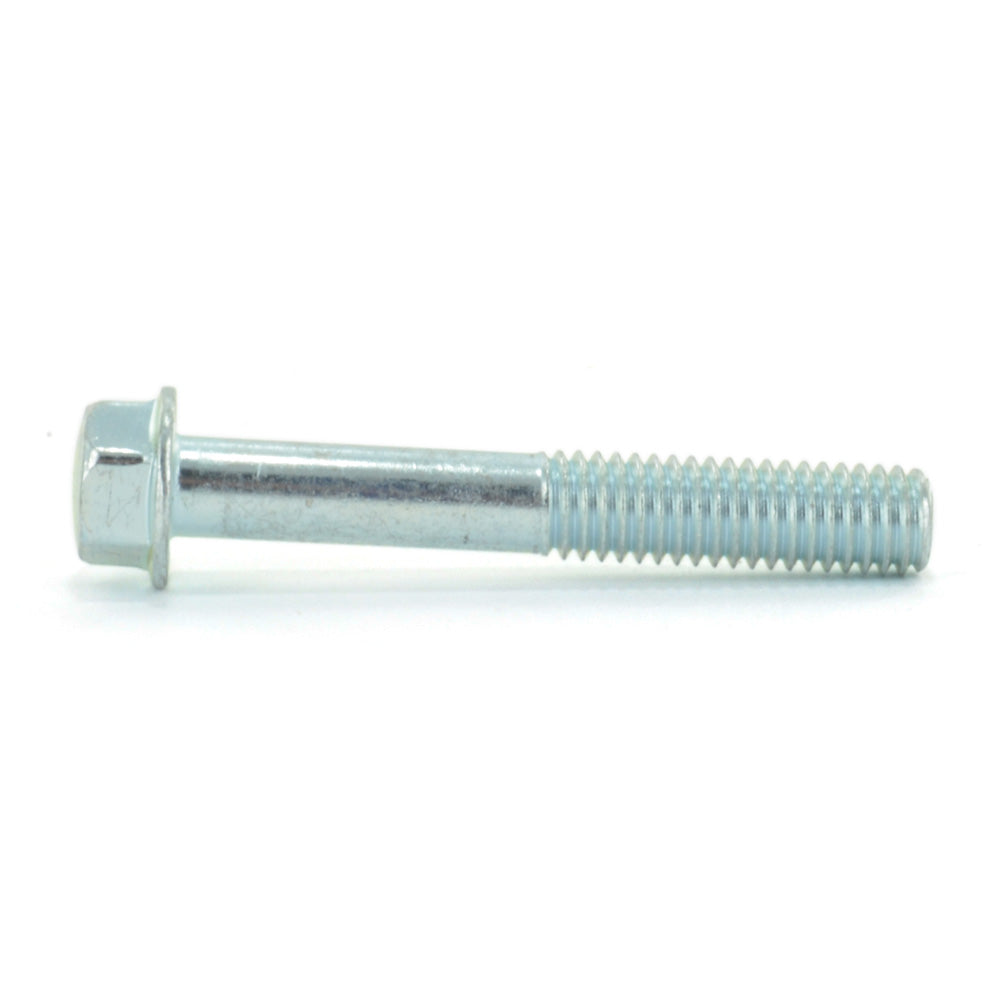

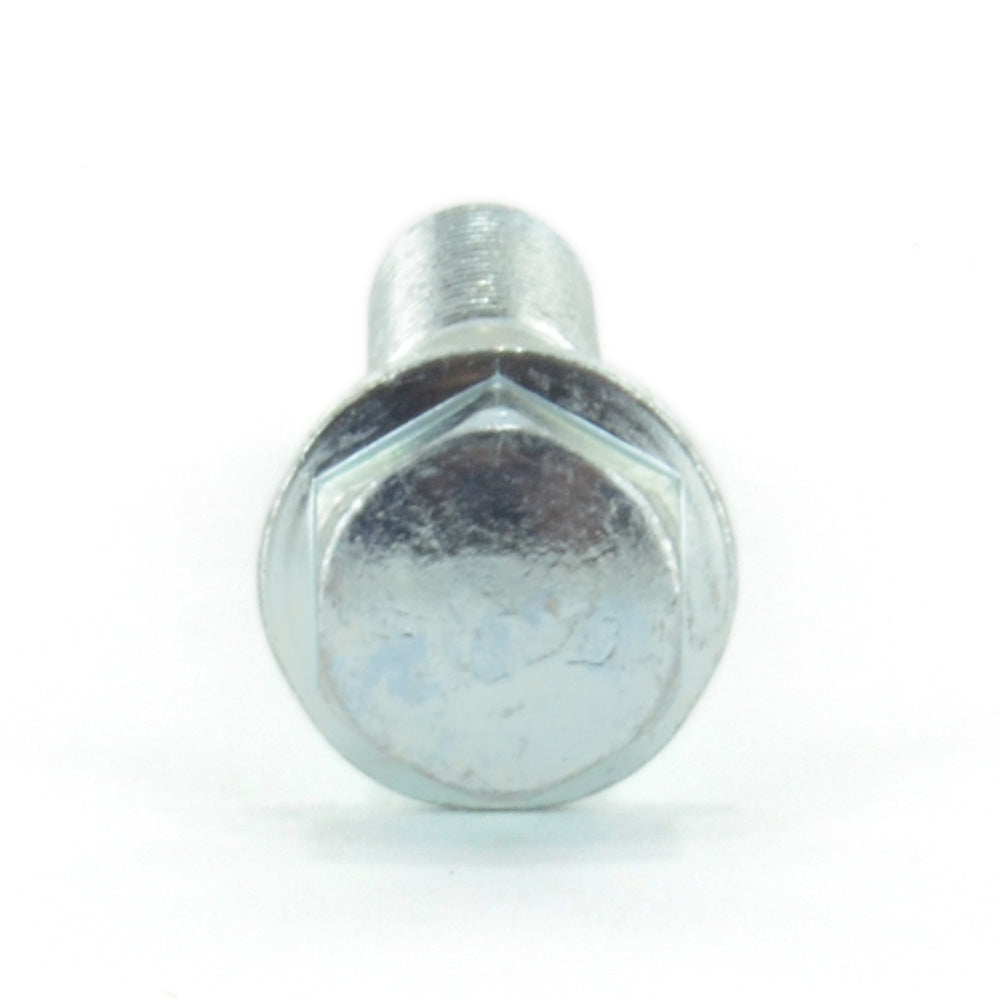

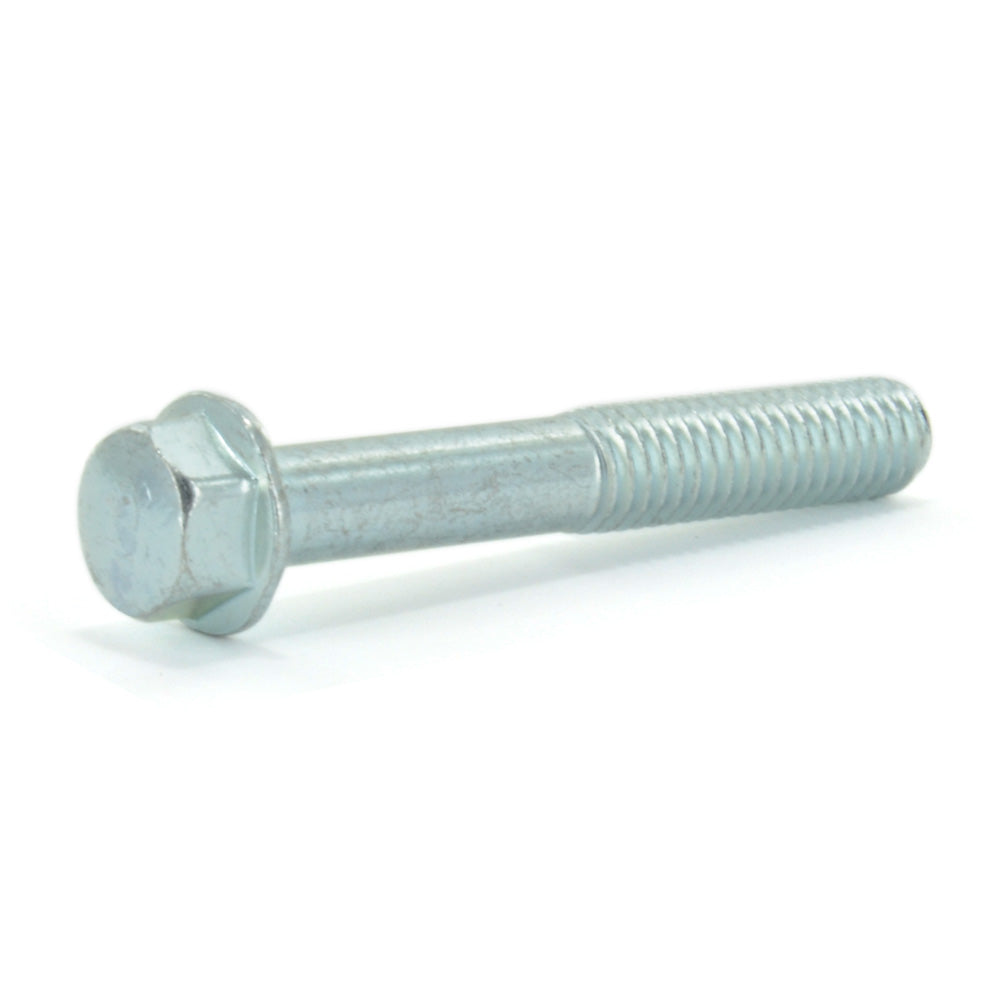

M6 x 1 x 40 Mm Coarse Zinc Plated Class 10.9 Jis Dome Hex Flange Bolt
Item A61.6.401
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Origin: Imported Body Diameter: 5.90 - 6.00 mm Diameter: M6 Finish: Zinc Flange Diameter: 14 mm Grade: Class 10.9 Head Height: 6 mm Head Style: JIS Reduced Hex Flange Item: Flange Bolt Length: 40 mm Material: Alloy Steel Measurement: Metric Origin: Imported Specification: ISO 898-1 JIS B1189 Thread Length: 18 mm Thread Type: Coarse Type: Partial Threaded Width Across Corner: 11.55 mm
- Origin: Imported
- Diameter: M6
- Finish: Zinc
- Flange Diameter: 14 mm
- Grade: Class 10.9
- Head Height: 6 mm
- Head Style: JIS Reduced Hex Flange
- Item: Flange Bolt
- Length: 40 mm
- Material: Alloy Steel
- Measurement: Metric
- Origin: Imported
- Specification: ISO 898-1 JIS B1189
- Thread Length: 18 mm
- Thread Type: Coarse
- Type: Partial Threaded
- Width Across Corner: 11.55 mm
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | M6 |
| Finish | Zinc |
| Head Style | JIS Reduced Hex Flange |
| Length | 40 mm |
| Measurement | Metric |
| Thread Type | Coarse |
