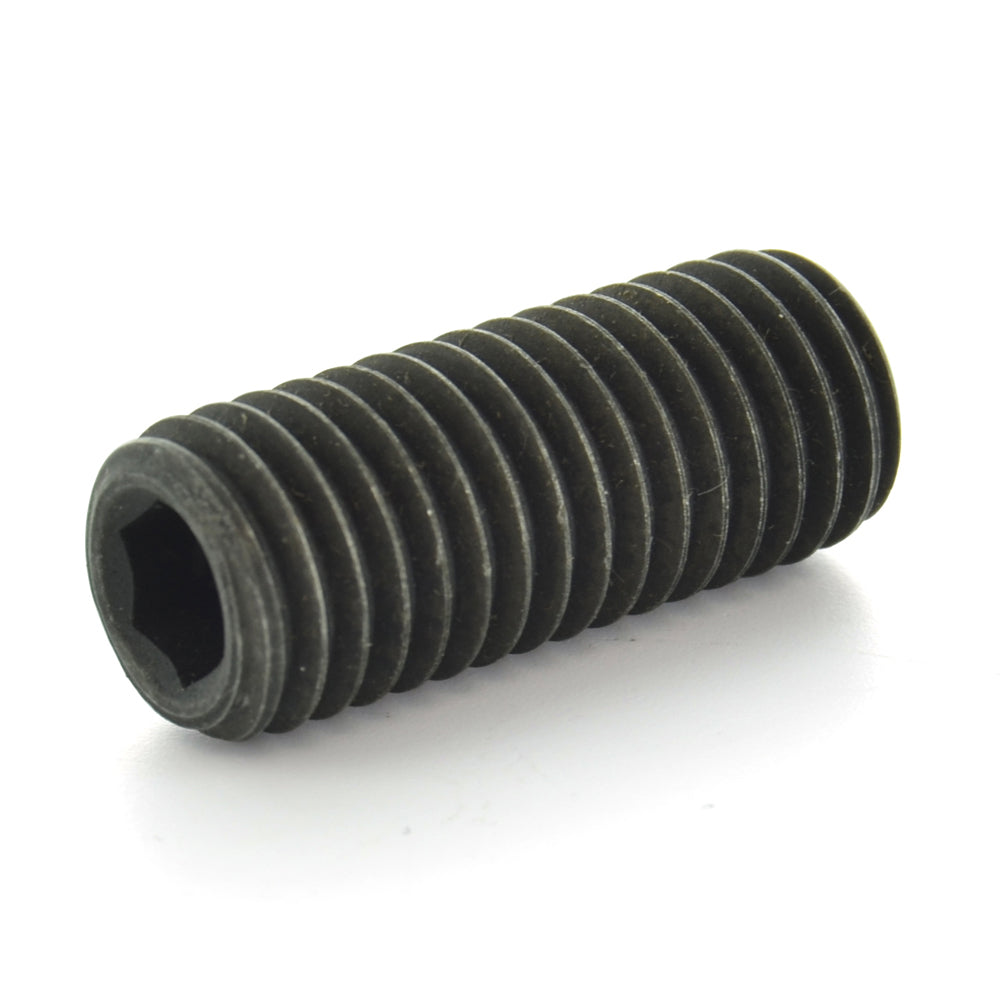

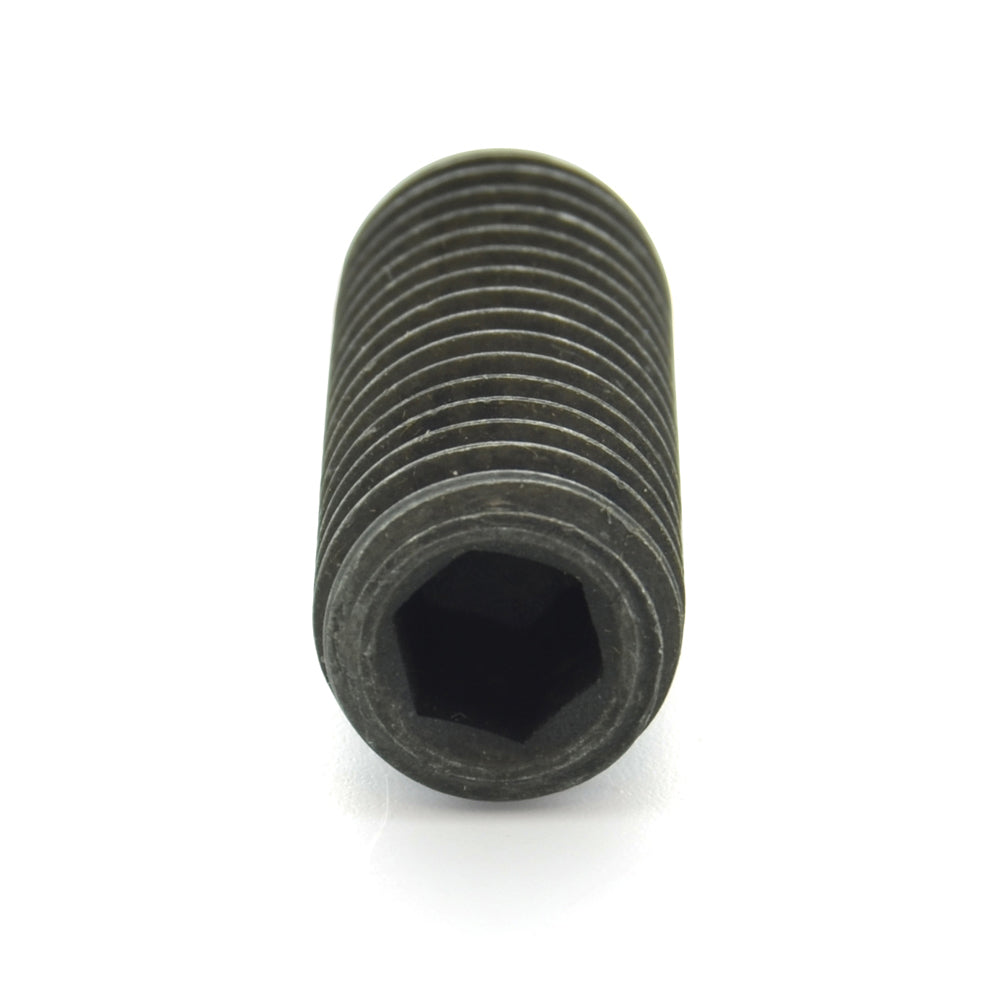

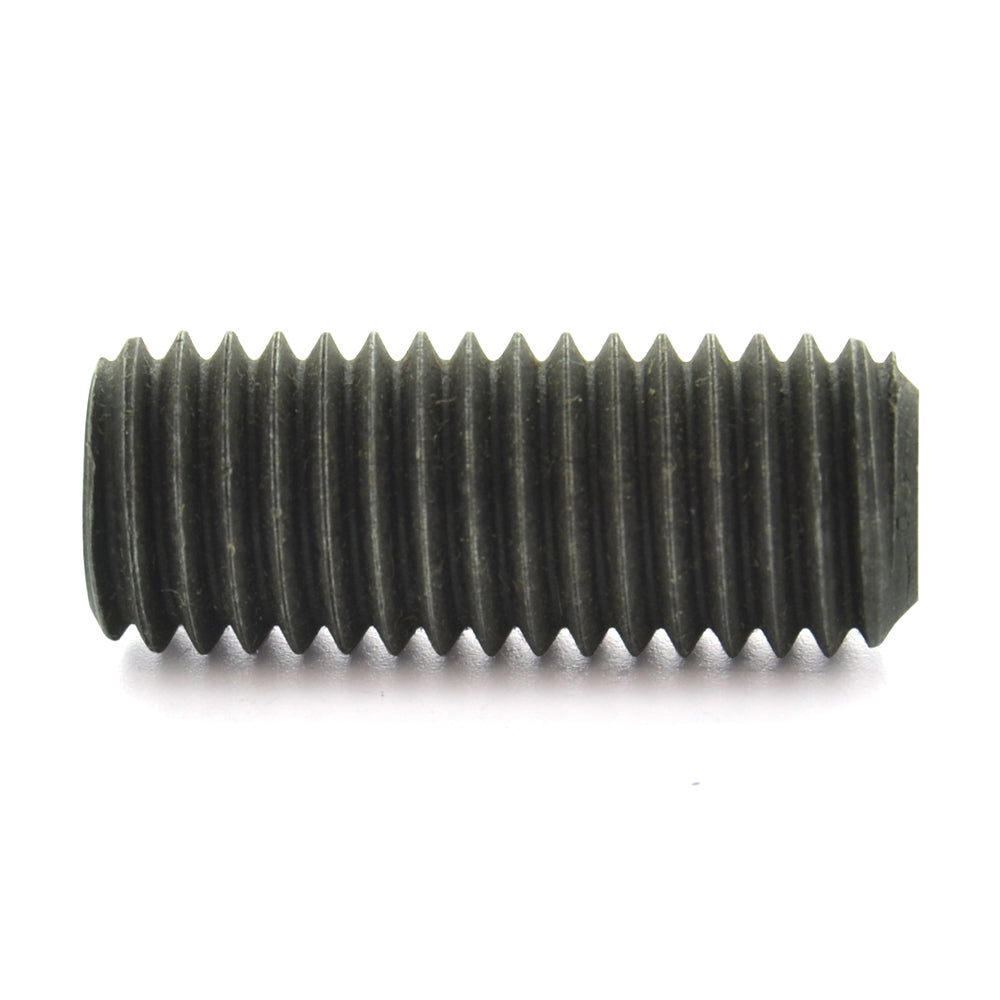

M8 x 1.25 x 10 Mm Coarse Black Oxide Alloy Steel DIN 916 Cup Point Socket Head Set Screw
Item A85.8.10
Socket set screws also known as grub screws have no head and are typically tightened or loosened with a square or hex key. A slotted set screw can be adjusted with a screwdriver. Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that grips and resists deforming the shaft surface. A flat point screw provides more contact with the shaft.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | M8 |
| Length | 10 mm |
| Thread Type | Coarse |
| Head Style | Socket Cap |
| Drive Type | Internal Hex |
| Finish | Black Oxide |
Description
Description
Socket set screws also known as grub screws have no head and are typically tightened or loosened with a square or hex key. A slotted set screw can be adjusted with a screwdriver. Socket set screws prevent movement of a pulley or similar machine part relative to a shaft. A cup point set screw has a rounded tip that grips and resists deforming the shaft surface. A flat point screw provides more contact with the shaft.
- A headless screw threaded the entire length
- Length is measured as overall length including the tip
- Has a hexagonal drive at one end and a cup point shaped indention at the other end
- The most used style set screw used for permanent location of one part to another
- Often used as adjusting screws and can be used to replace dowel pins
- Item: Set Screw
Specifications
General
- Finish
- Black Oxide
- Measurement System
- Metric
- Origin
- Imported
- Type
- Full Threaded
- Material
- Alloy Steel
Dimensions
- Diameter
- M8
- Length
- 10 mm
- Thread Type
- Coarse
- Width Across Corner
- 0.01 Inch
- Drive Size
- 4 mm
- Point Diameter
- 4.70 – 5.00 mm
- Key Engagement
- 3 mm
Features
- Drive Type
- Internal Hex
- Head Style
- Socket Cap
- Point Type
- Cup
- Grade
- Class 10.9
- Tensile Strength
- 150,800 psi
Certifications & Standards
- Standards
- DIN 916 - ISO 898-1
