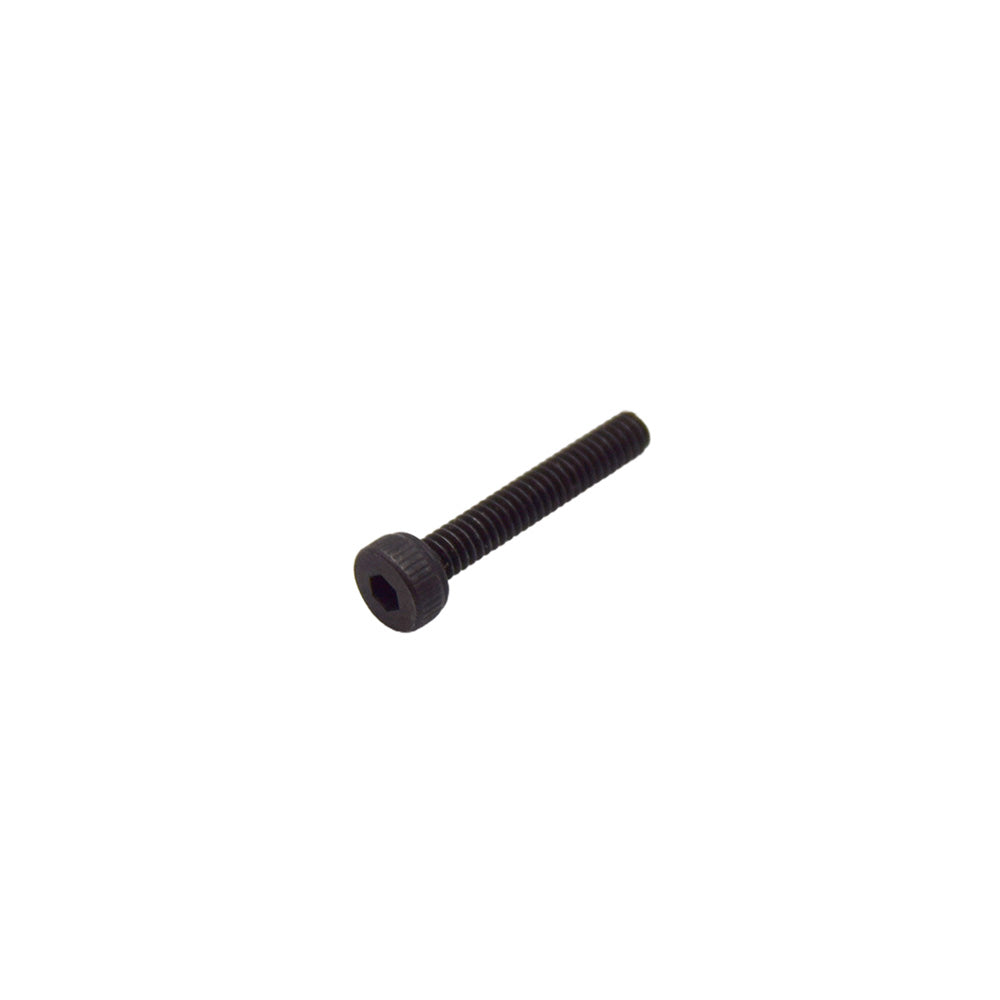

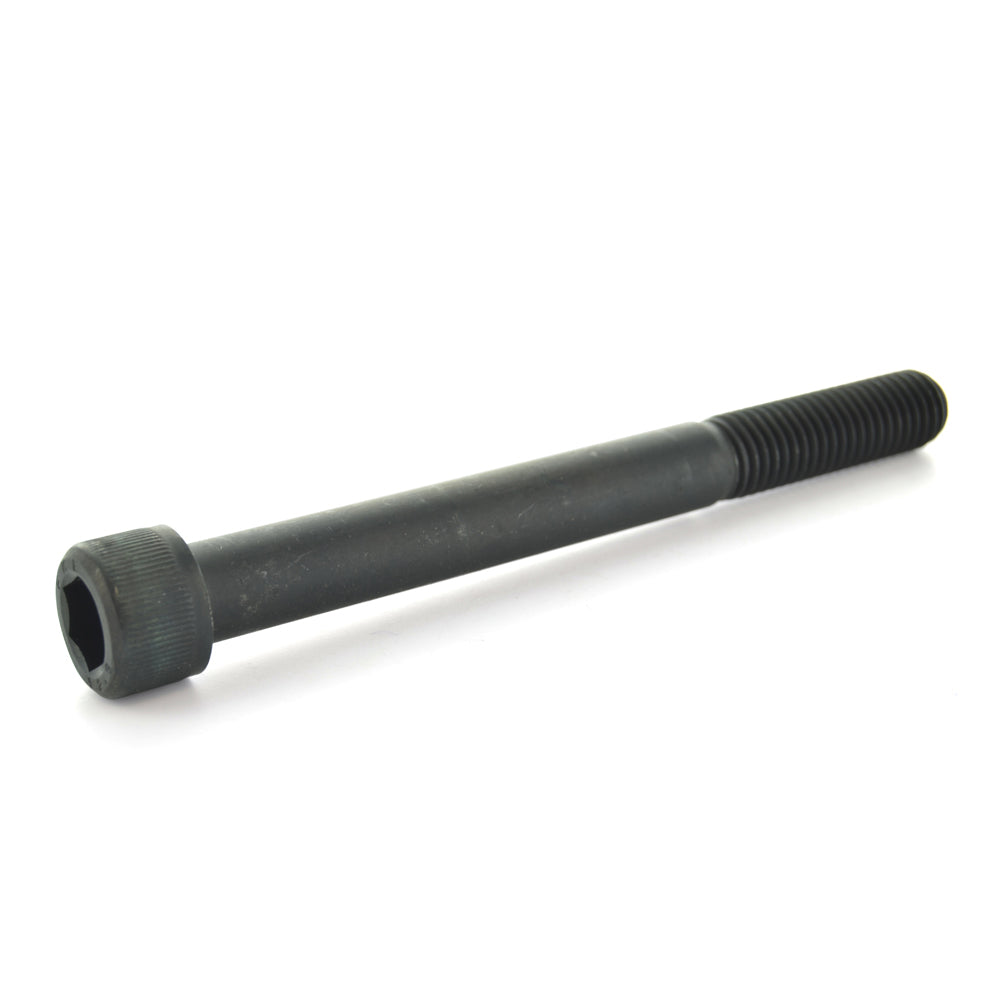

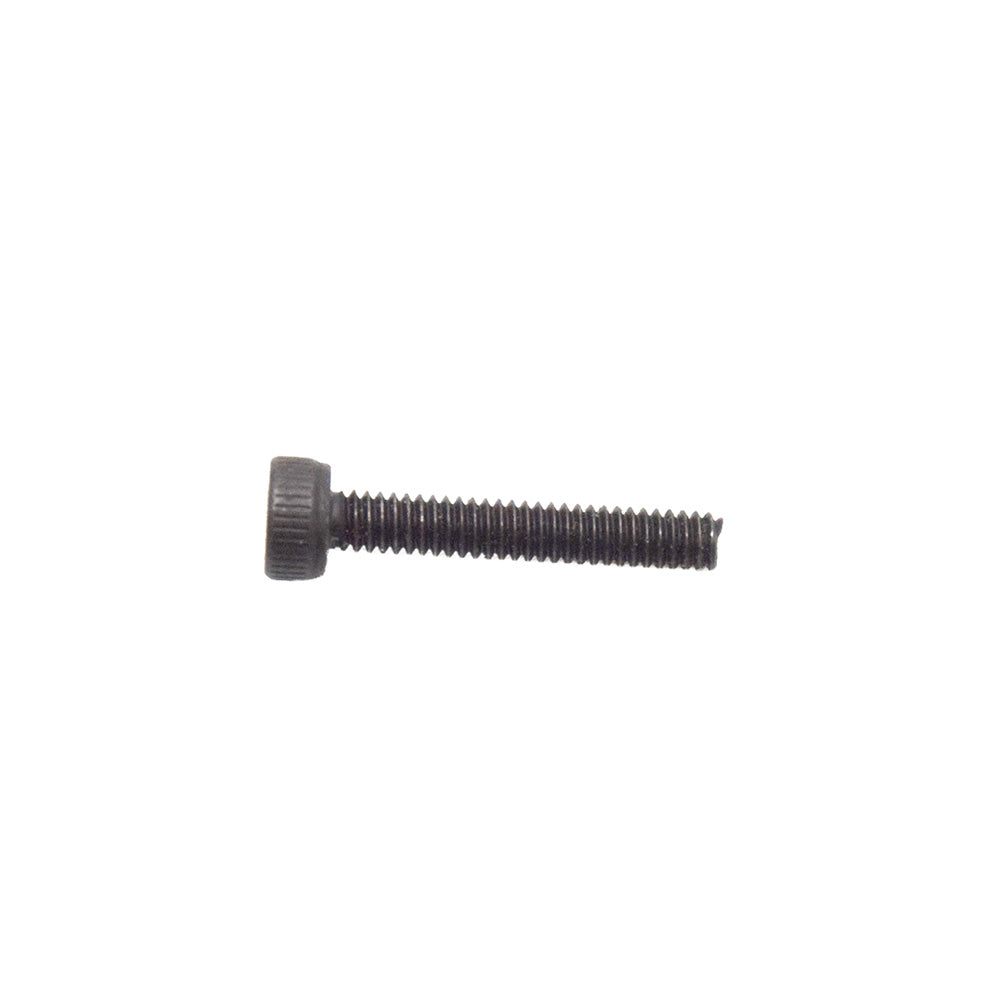

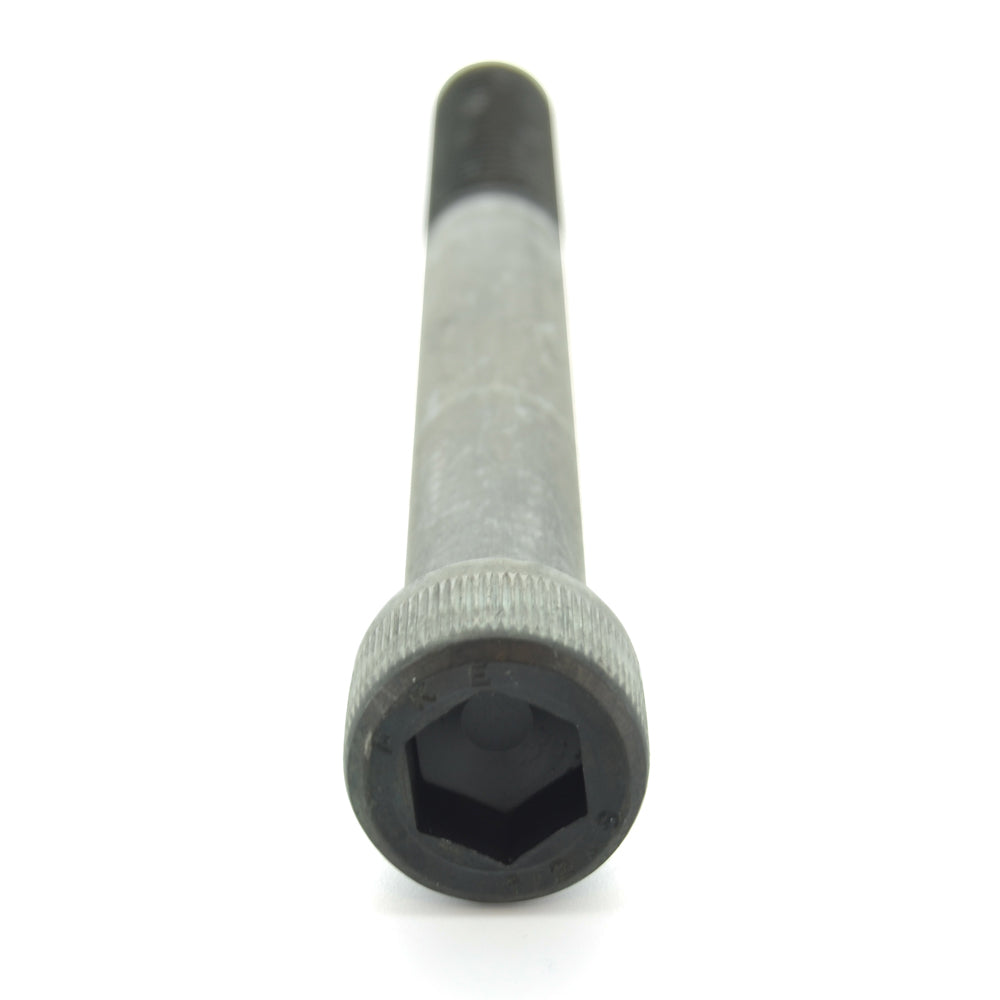

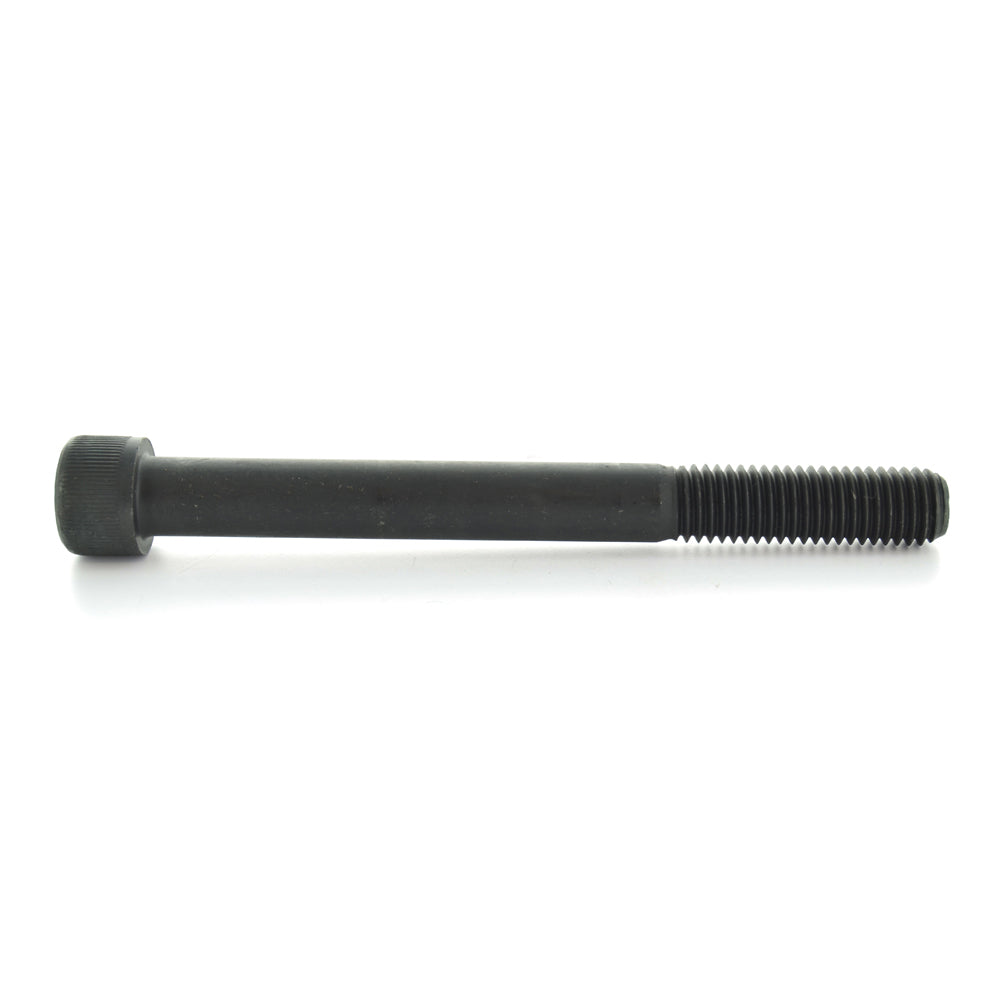

M8 x 1.25 x 22 Mm Coarse Black Oxide Alloy Steel Socket Cap Screw
Item A83.8.22
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Socket head cap screws are commonly used in machine assembly for removable panels and parts. They have a round cap with a hex head and are tightened with a socket wrench drive. Longer caps are easier to see when fastened while button and flat head caps are less likely to snag clothing or linkages. Cap screws with a black oxide or armor coat finish resist corrosion.
- Origin: Imported
- Socket head cap screws are bolts (cap screws) with a hexagonal recessed drive
- Also know as Allen bolts they are driven with a hex key or Allen wrench
- Socket cap screws are popular in tight spaces where an Allen wrench would fit when another type of drive may not
- Commonly used in machinery and assemblies
- Drive Type: Internal Hex
- Finish: Black Oxide
- Grade: Class 12.9
- Head Diameter: 12.73 - 13.27 mm
- Head Diameter Max: 13.27mm
- Head Height: 7.64 - 8.00 mm
- Head Height Max: 8.00mm
- Head Style: Socket
- Industry Standard: DIN 912
- Item: Socket Cap Screw
- Key Size: 6 mm
- Length: 22 mm
- Material: Alloy Steel
- Measurement: Metric
- Origin: Imported
- Specification: DIN 912 ISO 898-1
- Tensile Strength : 176900 psi
- Thread Length: 22 mm
- Thread Type: Coarse
- Type: Full Threaded
