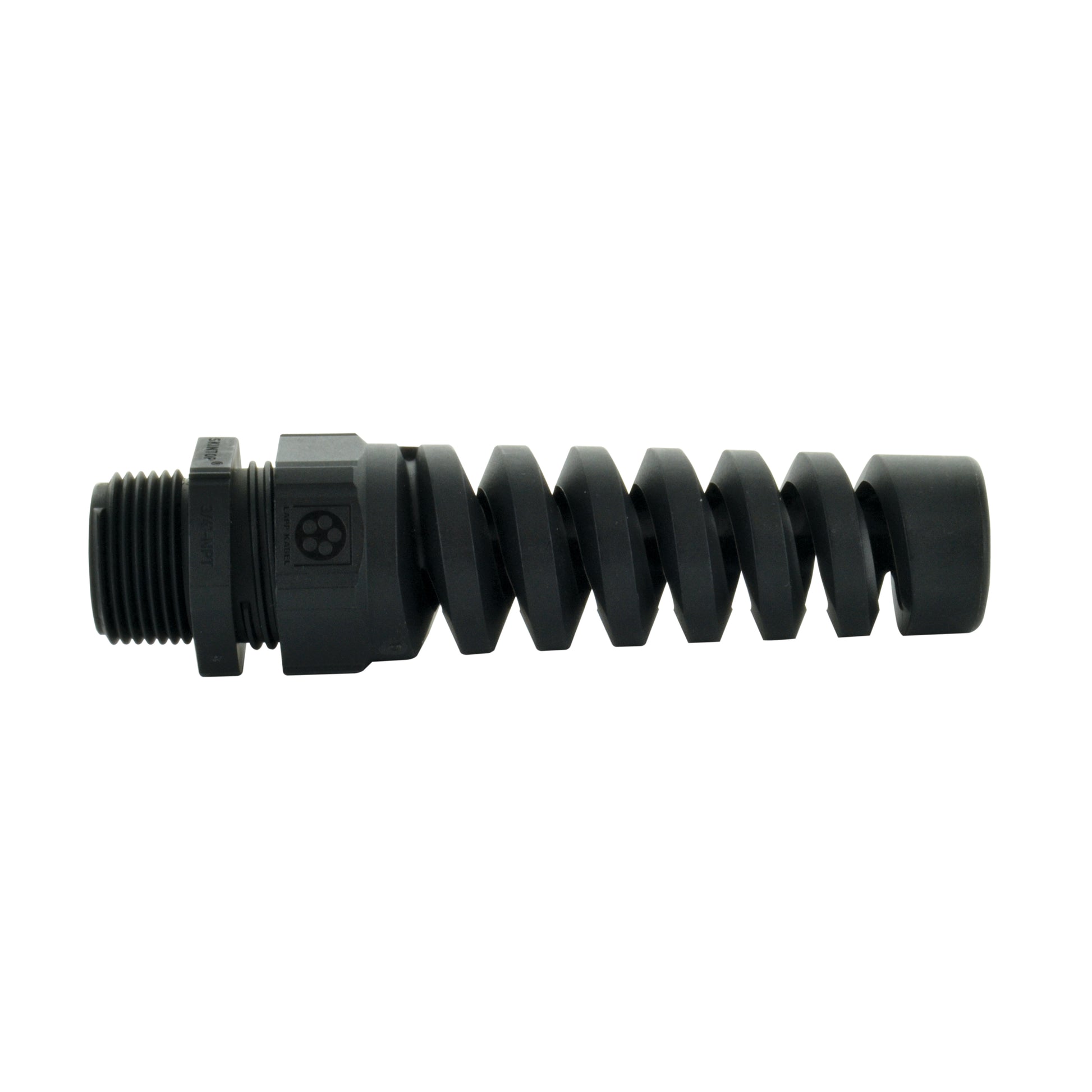

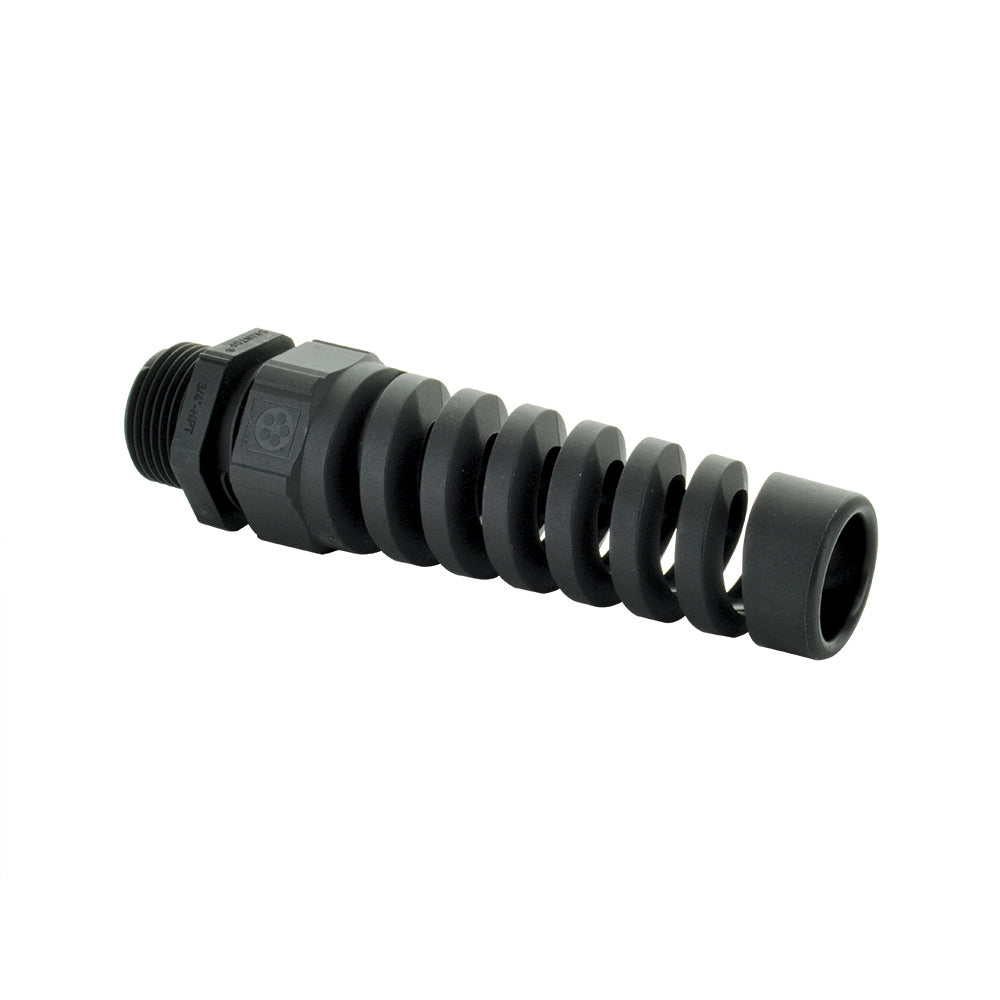

Pg-16 Liquid Tight, Non-Metallic Pigtail Spiral Strain Relief Cable Cord Protector With Nut
Item F55.412
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
SKINTOP FLEX is a liquid tight spiral strain relief that offers additional safety against overstress and conductor breakage. Ideally suited for hand held equipment moving machinery and robotics.
- Material: UL94V2 Heat Stabilized Nylon
- Color: Black
- Applications: Motor vehicles machinery repair electrical appliance repairs To protect electrical wiring when routed through panel walls.
- The heavy duty SKINTOP? design provides great pull strength and very reliable strain relief
- Superior integrated locking mechanism includes an internal ratchet for vibration proof protection
- Multi-trapezoidal thread requires just one twist to tighten
- Generous high quality neoprene bushing provides a liquid tight and dust proof hermetic seal
- Black (RAL 9005) UV Resistant
- Protection: 70 PSI IP 68 5 Bar (Exceeds NEMA 6/ 6P Pressure rating)
- Temperature range: Static - -40 C to +80 C / Dynamic:-20 C to +80 C
