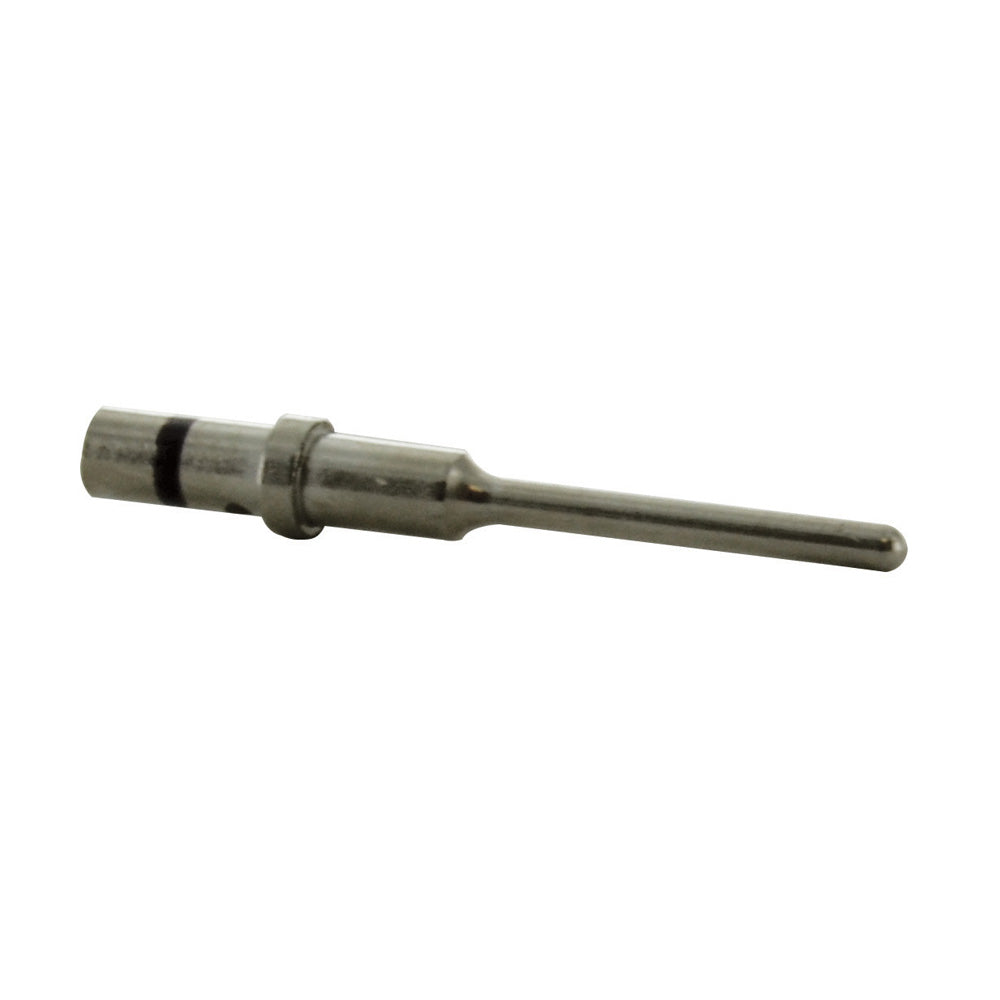

Pin Contact Size 20 18 AWG Deutsch Connector Dtm Series
Item F53.041816
DEUTSCHDTM Series connectors are the answer to all of your smaller wire gauge applications. Building on the DT design strengths the DTM connector line was developed to fill the need for lower amperage multi-pin inexpensive connectors. the DTM Series offers the designer the ability to use multiple size 20 contacts each with 7.5 amp continuous capacity within a single shell.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Description
Description
DEUTSCHDTM Series connectors are the answer to all of your smaller wire gauge applications. Building on the DT design strengths the DTM connector line was developed to fill the need for lower amperage multi-pin inexpensive connectors. the DTM Series offers the designer the ability to use multiple size 20 contacts each with 7.5 amp continuous capacity within a single shell.
- Accepts contact size 20 (7.5 amps)
- 16-22 AWG
- 2 3 4 6 8 and 12 cavity arrangements
- In-line flange or PCB mount
- Rectangular thermoplastic housing
- Integrated latch for mating
- Wedgelocks assure contact alignment and retention
- Grommet: Silicone rubber
- Insert Retainer: Thermoplastic
- Receptacle Interfacial Seal: Silicone rubber
- Shell: Thermoplastic
- Wedgelocks: Thermoplastic
Specifications
Dimensions
- Gauge
- 20-18 AWG
