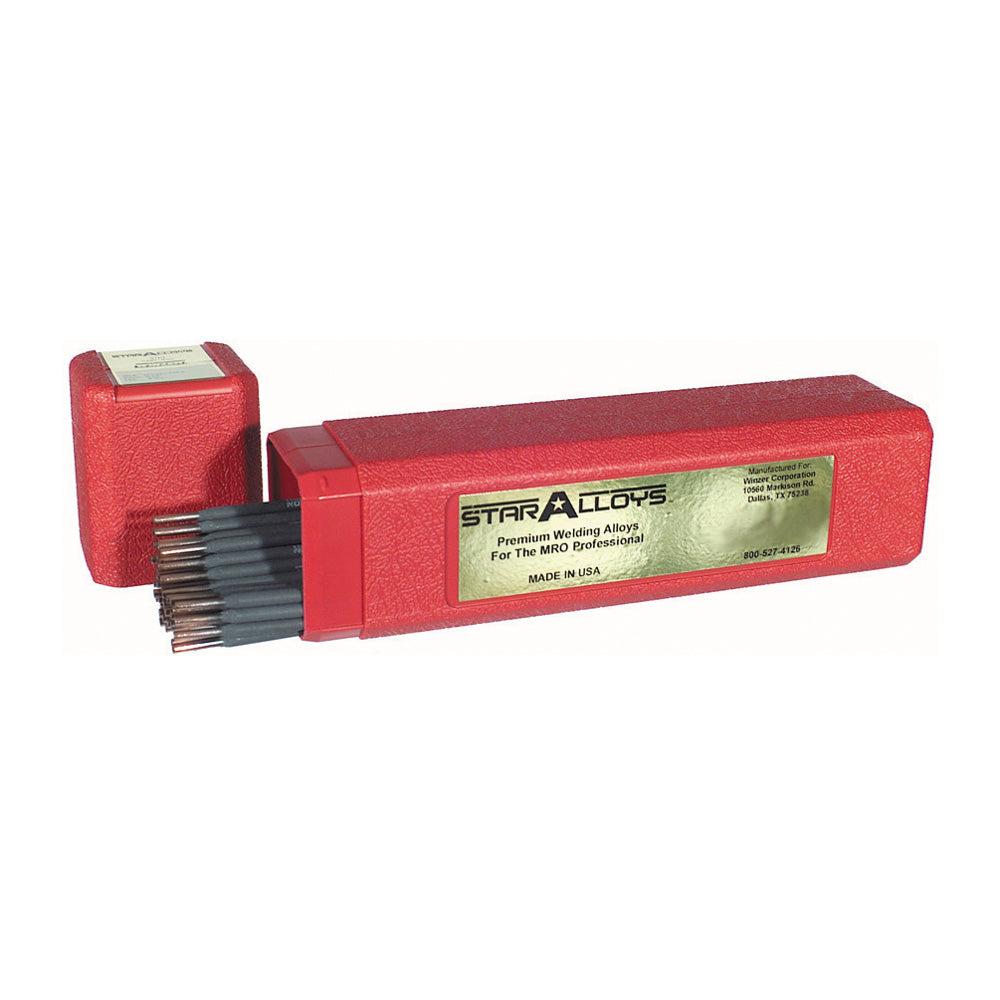

The 51CI Cast Iron electrode is one of a kind heavily copper clad "tri-metal" cored that easily welds even dirty and greasy cast irons.
- One of a kind heavily copper clad “Tri-metal” cored cast iron electrode
- High efficiency weld metal transfer totally eliminates electrode overheating
- Proprietary copper-nickel-iron deposit chemistry yields the ultimate combination of softness ductility and tensile strength for exceptional machinability
- Easily welds even dirty and greasy cast iron. Saves prep time. • High deposition rate creates an extremely narrow heat affected zone • Suitable for all weldable cast irons that require post weld machining
- Welding Positions: flat vertical up horizontal overhead
- Recommended Current: DC reverse (+) or AC
- Amperage Settings (min/max): 3/32” (50/70); 1/8” (70/100); 5/32” (100/130)
- Tensile Strength: 77 000 psi
- Yield Strength: 54 000 psi
- Elongation: 30%
- Hardness: Rockwell B84-88; Brinell 176; Vickers 185
- Work Hardness: Rockwell C41-54; Brinell 380-550 Vickers 400-580
Specifications
General
- Brand
- Star-Alloys
- Color
- Dark Gray
- Material
- Cast Iron
Dimensions
- Length
- 14 Inch
- Diameter
- 1/8 Inch
